The X940E is a great large 4k HDR smart TV. It produces some of the best blacks found on LED TVs, and it can get quite bright. The excellent local dimming and ability to display a wide range of colors results in a great HDR experience. The X940E has some motion blur though, which makes it less of a good choice for sports or video games but doesn't impact the excellent movie performance.

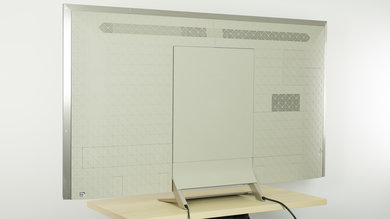

The design of the X940E is familiar to any Sony fans due to the minimalist and industrial look. It has a small, central stand which supports the TV well and can still fit on most table tops. The TV provides excellent cable management with guidance out the back of the stand, and has excellent build quality.

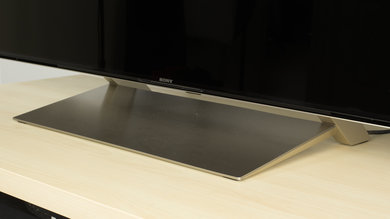

The X940E has a central stand, similar to most Sony TVs such as the X930E. Despite the small footprint, it still supports the large TV well.
Footprint of the 75" TV stand: 20.1" x 12.8"

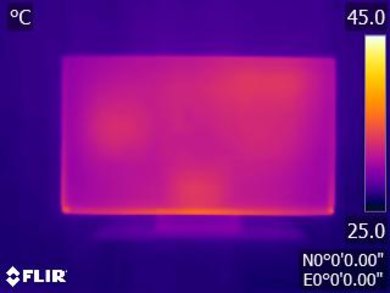

The X940E never gets more than a little warm, and the heat is well distributed across its surface.
The Sony XBR75X940E LED TV has an impressive picture quality. Dark scenes look amazing due to the high contrast ratio and the excellent black uniformity, especially when the TV is in a dark room. When set in a bright room, the picture quality remains good, since the TV can get very bright to fight any glare from a bright lamp or window and it can also deal very well with reflections. The overall gray uniformity is average, but luckily not too much dirty screen effect is visible. The viewing angle is disappointing though, so the X940E is better suited for people who have a living room with a narrow seating arrangement, as the picture quality is best only when sitting in front of the TV. The X940E has excellent local dimming and a high HDR peak brightness, so highlights really stand out when compared to normal SDR content. The Sony X940E is really a top performer when it comes to HDR.

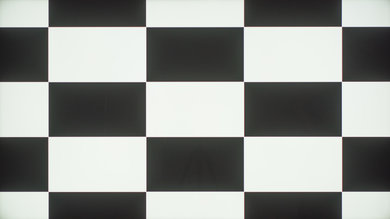

The Sony X940E has a great native contrast ratio. Hovering near 5000:1, the X940E can display dark scenes very well with deep blacks. This high contrast ratio is especially good when the TV is set in a dark environment.
When the Local dimming is activated, the contrast ratio goes up to an outstanding 11634:1, which is one of the highest contrast ratios we have measured for an LED TV.

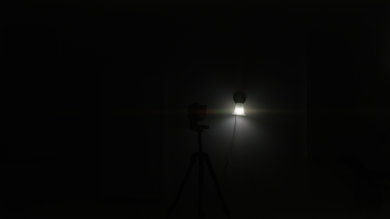

The local dimming feature on the X940E works extremely well and looks about as good as the Sony Z9D when compared side-by-side. The X940E can display our moving highlight very bright while keeping the rest of the screen really dark and with limited blooming. The time reaction is also very fast and the turning on and off of the dimming zones is not really noticeable.
Outstanding SDR peak brightness. The TV's local dimming helps to make highlights in dark scenes incredibly bright, but even the TV's worst case brightness, the 100% white window where local dimming can't be used, is still pretty bright. The TV's brightness does decrease a little as it warms up; our measurements were done after the TV had warmed up. Overall the TV is a bit less bright than its cousins, the X930E and Z9D. A plot of brightness over time is shown here.
Outstanding HDR peak brightness. The TV's brightness in the real scene test is close to its best case brightness, indicating that the TV's local dimming is effective even in more realistic scenes. However the TV isn't as bright during extremely bright scenes like our 50% and 100% white window tests, because local dimming isn't as effective here, but even in these worst case scenes the TV is still pretty bright. The TV did decrease its brightness a little as it warmed up; our measurements were taken after the TV was warmed up. Overall the TV is a bit less bright than the X930E and Z9D. A plot of brightness over time is shown here.

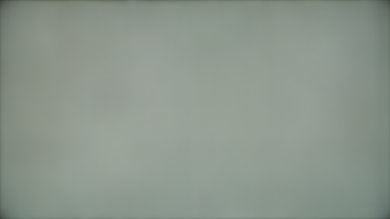

The gray uniformity of the X940E is ordinary and it is situated in the same ballpark as the X930E and the 2016 Z9D. It suffers from the same problems with darker edges and corners. The middle of the screen is fairly free of imperfections, which is a good since dirty screen effect is kept to a minimum.

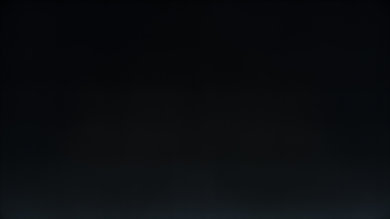

Looking at our test picture of the 5% gray, the X940E is a bit worse looking than on the X930E. The bottom edge of the screen is a lot brighter than the rest of the screen and we confirmed this by measuring the luminosity of the screen in that region and it was clearly brighter than the middle or top of the screen. There are also large horizontal bands that seem darker than the rest of the screen. Both of those issues could be noticed during dark scenes and especially when the TV is set in a dim lit room.
Surprisingly, the local dimming strongly influences the gray uniformity. When the local dimming is set to 'High', the uniformity looks much more better as you can see here, but if set to 'Low' then the large bands that are visible on our 5% gray picture (local dimming set to 'Off') are much more visible, as you can see here. We recommend not to use the 'Low' setting of the local dimming as it can introduce some banding in dark scenes.

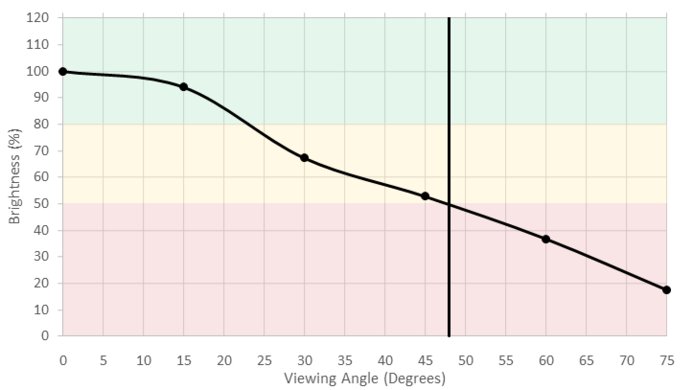

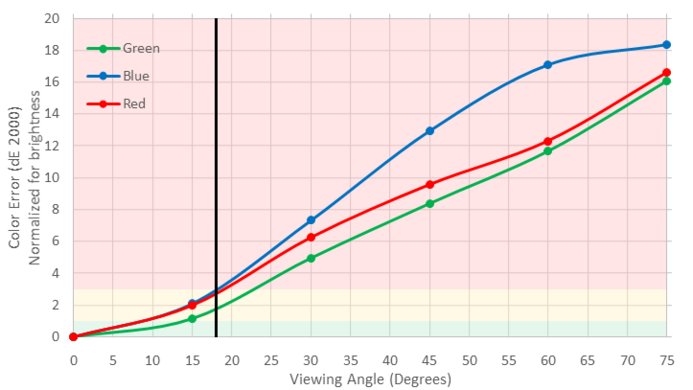

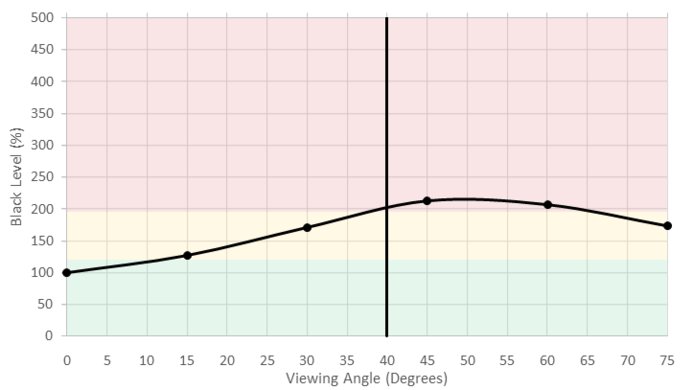

Disappointing viewing angle. Colors shift when viewed from a small angle, while brightness decreases and blacks become grey at moderate angles. This is a better viewing angle than many other TVs with VA panels, but still not as good as IPS or OLED panel TVs.

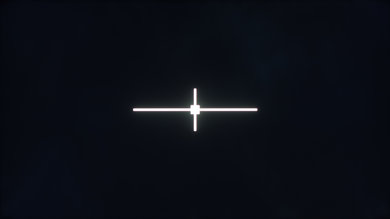

The X940E has an excellent native black uniformity with some minimal clouding in the upper right side of the screen, but this is not really visible while looking at normal TV content.

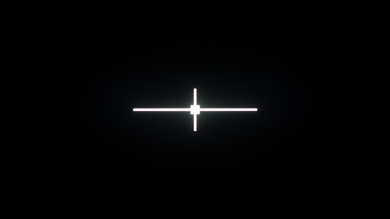

With local dimming turned on, the black uniformity becomes almost perfect and no issues can be seen. This is a very good example of how effective the local dimming is on this TV.

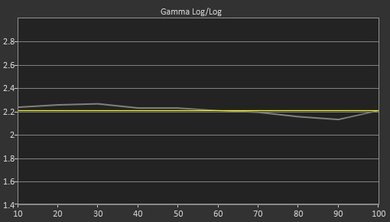

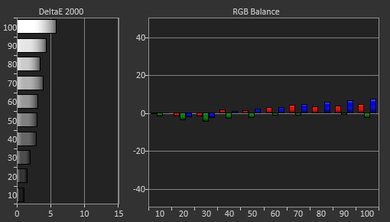

The XBR75X940E is pretty accurate out of the box. There is a bit too much red and blue toward the higher end in the white balance, but even then we are still hovering close to a dE of 3, which it still very acceptable for home use. The gamma is almost spot on and the Color dE is very acceptable. This is in line with other Sony TVs tested before, as they tend to be very accurate out of the box.

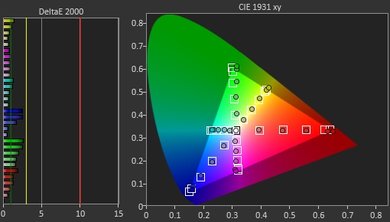

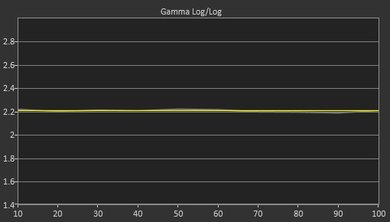

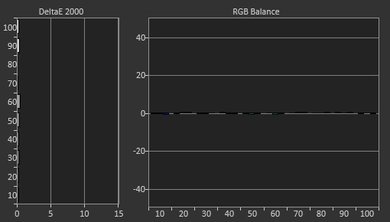

After calibration, which was pretty easy and fast to do, the X940E performed extremely well. The white balance was easily corrected via the 2 point and 10 point calibration setting and as a result, the gamma was flattened to track almost perfectly to our 2.2 target. As with other Sony TVs, there is no color management system to further correct the color accuracy even though the color dE was brought down via the corrections applied to the white balance. In the end, the Sony X940E is really accurate.
You can see our recommended settings here.

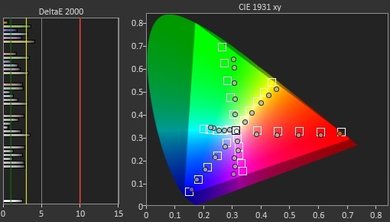

Wide color gamut, though not as wide as on some other high end TVs like the Samsung Q7F, KS8000 or Sony's A1E. The TV is fairly accurate for most of its color range, but like many other TVs it struggles with reproducing deep greens in HDR content, which also ends up hurting its cyan performance.

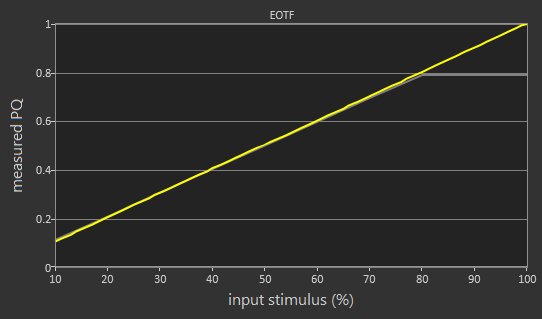

The TV's EOTF almost flawlessly follows the HDR PQ curve up to where it clips at its peak brightness. This EOTF was measured in the Custom picture mode, the EOTFs for the Cinema Pro and Game modes are shown here and here.

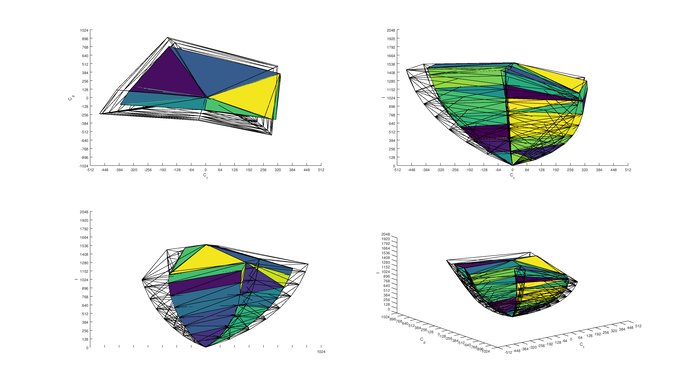

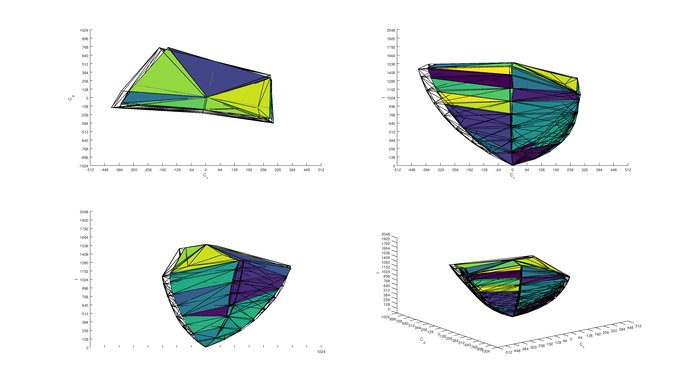

Decent color volume. The TV shows its wide color gamut remarkably well for both extremely bright and dark colors, though dark P3 greens and reds become a little undersaturated. Its color volume is only really limited by its gamut.

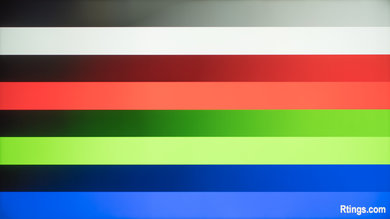

The Sony X940E can display our gradient test image without any problems, as you can see on our test picture. From the light to the dark shades, everything is smooth, even the grayscale. Note that this test what was done with the 'Smooth gradation' feature turned off.

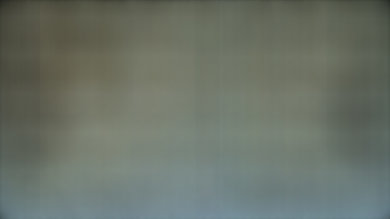

The Sony X940E does present some image retention right after the 10-minute burn-in scene of our test clip, but the retention looks very dim and it fades really fast. After 2 minutes of recovery, nothing could be picked up by our analysis process, which is a good result. Even though it has some very minor image retention, this isn't a problem.
We don't expect VA panels to experience permanent image retention, as the VA panel in our long-term test appears immune.
The X940E has a mediocre handling of motion. It has a long response time, so motion blur may be seen depending on the content. For movies this isn't an issue, but for PC use or some games a long trail can be seen. The TV uses PWM to dim the backlight, but the frequency is high enough to not be noticeable. It is possible to reduce the frequency to clear up motion significantly. Some minor judder is present when watching movies from a PC or cable, but most people won't notice this. Fans of motion interpolation can introduce a strong soap opera effect on the 120Hz panel.

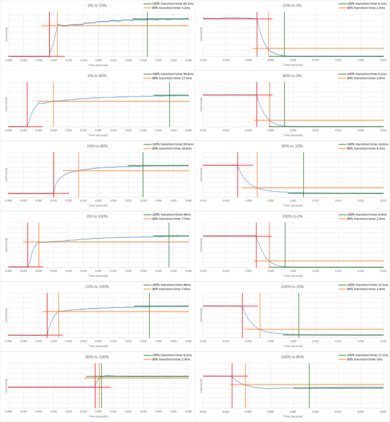

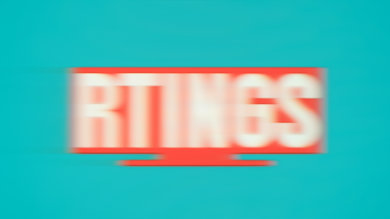

The response time of the 75" X940E is bad, resulting in a long (but faint) trail following moving objects. This isn't noticeable in all content, and isn't an issue for watching movies but does cause visible blur behind 60 fps games or sports.
The Sony X940E uses PWM at 720Hz to dim the backlight, starting at 13/50 backlight setting, but at that frequency it is not noticeable. Lowering the setting reduces the amplitude, while duty cycle remains constant.

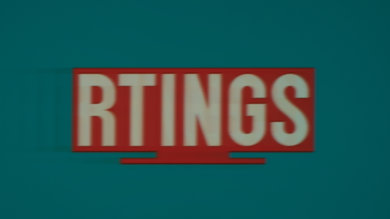

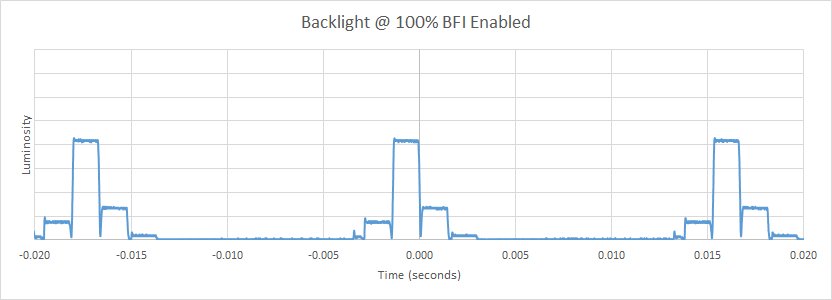

It is possible to decrease the X940E's flicker frequency to 60Hz and clear up motion, for those who don't mind visible flicker. To do so, set 'MotionFlow' to 'Custom' and increase the 'Clearness' slider.

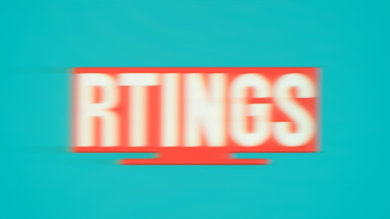

The X940E can interpolate lower frame rate content up to the panel's native refresh rate of 120Hz. To do so, set 'MotionFlow' to 'Custom' and increase the 'Smoothness' slider. For 30fps content it is also necessary to set 'CineMotion' to 'Medium' or 'High'.
The Sony X940E provides extremely smooth motion, even when watching low frame rate content such as 24 fps movies. Even when watching movies the image doesn't remain static for long periods of time due to the slow response time. Higher frame rate content such as sports also appears extremely smooth.
The Sony XBR75X940E can only display 24p movies playing via 24p sources like DVDs and Blu-rays player smoothly. 24p movie playing via 60p/60i sources like cable or satellite boxes play at the correct cadence with 'Motionflow' set to 'True Cinema' and 'Cinemotion' set to 'High'.
Update 07/18/2017: The TV has been tested with the newest firmware update (PKG6.2648.0065NAA). The 24p playback remains the same.
Update 10/17/2017: With the latest firmware (PKG6.2669.0070NAA) the judder over 60Hz signals has been fixed.
The X940E has a 120Hz panel, and doesn't support any variable refresh rate features.
The Sony X940E supports all the common input signals, including HDR, and should be able to properly display any content. It has good 4k input lag, but its 1080p input lag may disappoint competitive gamers. Note: Only HDMI ports 2 & 3 support full bandwidth, but HDMI port 3 is also the audio return channel. If you have a receiver which supports ARC and more than 1 device which requires the full bandwidth of HDMI then you might have some issues connecting all of your devices. In this case it may be best to connect your receiver using an optical (Toslink) cable.
Low input lag for a 4k input, which should please all but the most competitive gamers; but higher input lag for a 1080p input. This should be good enough for most people but may disappoint competitive gamers. Both the Game and Graphics picture modes have low input lag, and can show 4:4:4 color properly. Overall the input lag is very similar to the X930E and Z9D, which also use the Sony x1 Extreme processing engine.
Update 07/18/2017: The TV has been tested with the newest firmware update (PKG6.2648.0065NAA). The input lag remains the same.
Update 09/20/2017: Tested 1080p @ 120 Hz input lag using our new input lag tool. It is much faster than the 1080p @ 60 Hz input lag, likely due to the TV bypassing some processing when it detects such an unusual signal.
Update 11/10/2017: Retested input lag with the latest firmware (PKG6.2669.0070NAA); there was no significant change.
All the common input resolutions are supported. 4k @ 60 Hz @ 4:2:2 or 4:4:4 color is only supported on HDMI inputs 2 and 3, and only when 'HDMI Enhanced Format' is enabled. 4:4:4 color is only properly displayed in the Game or Graphics picture modes.
When using the TV as a PC monitor, 1080p is listed as the default resolution. 1080p @ 120 Hz is properly supported but must be added as a custom resolution, because it isn't listed by default.
Update 06/12/2018: A note for Xbox One X and Xbox One S owners: 1080p @ 120 Hz from the Xbox is only supported on this TV when the Xbox's connection type is changed from Auto-detect (Recommended) to HDMI: (Xbox > Settings > Display & sound > Video fidelity & overscan > Display > Connection > HDMI). Unfortunately in this mode 4k, HDR, 50 Hz and 24 Hz aren't possible, so this mode is only recommended when the higher refresh rate of 120 Hz is more important to you than these other features.
Update 06/18/2018: Correction, 24 Hz and 50 Hz are in fact possible with the Xbox's connection type set to HDMI.
HDMI 2.0 full bandwidth is only possible on HDMI inputs 2 and 3, and only when 'HDMI Enhanced Format' is enabled.
Dolby Vision support will be added in a future update.
Update 01/23/2018: The update enabling Dolby Vision compatibility is now available.
The X940E produces a slightly better than average sound, but like almost any TV, it will greatly benefit from being combined to an external sound system such as a soundbar.

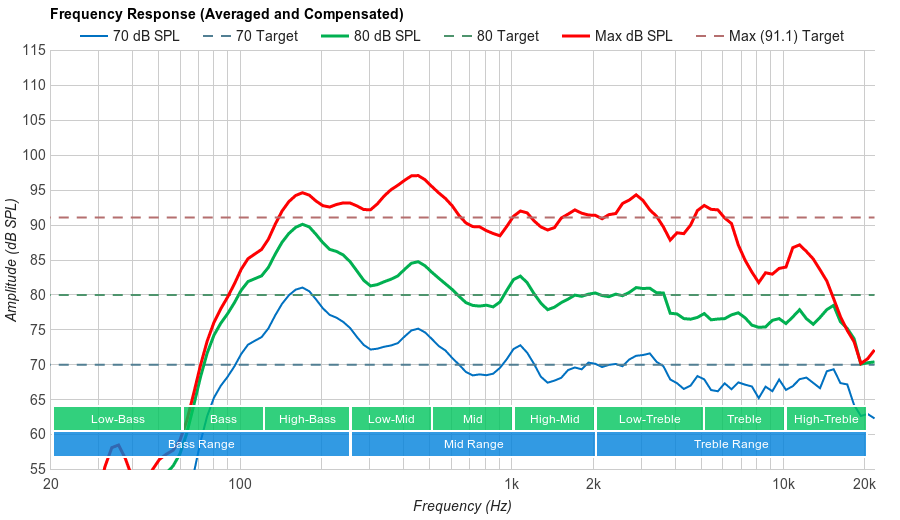

Decent Frequency response. The X940E produces a response relatively close to target, but it like most Sony TVs has some amounts of pumping and compression at higher volumes. Aliasing of higher frequencies is also present.

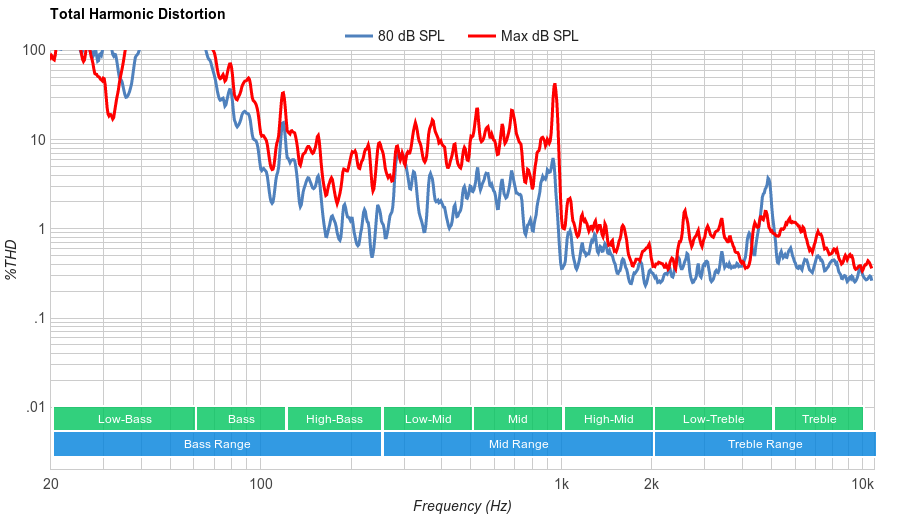

Below average distortion performance. The X940E has reasonable THD at a lower volume, but it steeply rises as levels are raised.
The Sony X940E ships with Android TV 6.0 Marshmallow, but received an update to Android TV 7.0 Nougat prior to testing. Nougat brings a few new features to Android TV, such as a picture in picture mode and multitasking menu, but it fails to address the main problems with the Android TV platform, namely ease of navigation, lag and frame drops, and a lack of smart features in the remote.
Other smart features of Android TV remain unchanged. The Google Play Store still has a larger selection of apps than many other smart platforms. Content can be cast to the TV from a smartphone or tablet using the TV's "Chromecast built-in" functionality, or played from a USB drive connected to one of the TV's three USB ports. The remote has a built in microphone for voice search, which works well.
The TV has no ads in its main interface, but third party apps can have ads. There is an option in the TV's settings to opt-out of personalized advertising for these ads.
The first row of the home page is filled with suggested content. In the 'Home' section of the TV's settings you can opt out of all sources of suggested content until all that's shown is a line saying 'No recommendations available at this time'. After the TV has been restarted more sources may appear but can also be disabled.

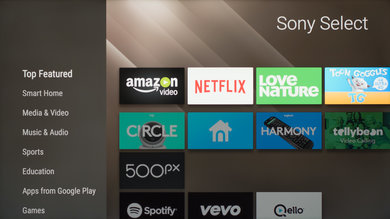

Many popular apps come preinstalled, such as Netflix, YouTube and Amazon Video. Other apps can be downloaded from the Google Play Store, which has more apps than many other smart platforms.

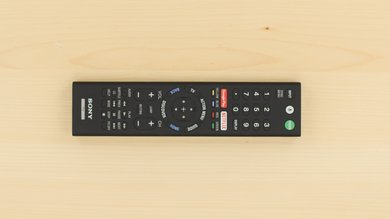

The remote is rather large with a lot of buttons. Fortunately most of the commonly used buttons are clustered within easy reach around the navigation pad in the center, except the power and input buttons at the top which are hard to reach. The remote has a built in remote for Android's voice search, which only searches for content and lacks the advanced voice command features found on other smart platforms such as Samsung's Tizen. The remote is identical to those of the X930E and X900E (same model number).
Update 12/11/2017: Google Assistant has now been added to Android TV on Sony TVs, and it brings a lot of new features to the voice control: commands like 'open Netflix', 'switch to HDMI 1', 'pause video', 'how's the weather' and 'turn off TV' all work well, though commands to change picture settings like 'set the brightness to 20' and 'switch to Game mode' don't work. The remote score has been increased to reflect the new fuctionality.

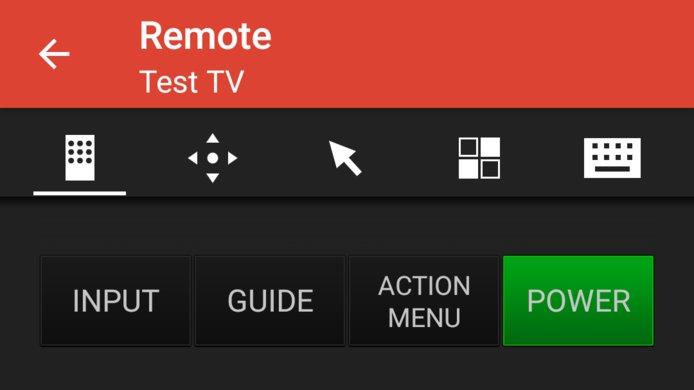

Update 09/12/2017: Sony has a remote app called 'Video & TV SideView' that's better than the Android TV app in most ways. The score and data fields have been updated to reflect the Sony app.
Update 07/11/2018: Sony's Video & TV SideView remote app has been retested on version 5.5.0. The remote app can now stream video files and can only directly launch apps. The data fields have been updated.
Update 10/12/2018: The remote app can directly launch both apps and inputs, even on version 5.5.0; "Apps Only" was a mistake. The value has been corrected to "Both".
We tested the 75" (XBR75X940E), the only size available at the moment.
If someone comes across a different type of panel or if their Sony XBR-75X940E doesn't correspond to our review, let us know and we will update the review.
|Size||Model||Alternative Name||UK Model|
The X940E is a great LED TV, but it faces steep competition in its price range from OLED TVs. It does have the advantage of being larger than average though.
The Sony X900F is marginally better than the Sony X940E. The X900F has a much faster pixel response time, so motion looks much smoother with very little motion blur. The Sony X940E has a poor response time, but it has a better black frame insertion feature that improves motion blur. The X940E has better dark room performance, with a better local dimming feature and better black uniformity.
The Sony X940E and X900E are very similar, and offer nearly identical performance. The X940E has better dark room performance due to the improved local dimming feature and better black uniformity. The X900E has a much better response time and motion looks much smoother with very little motion blur. The X940E has been updated with support for Dolby Vision.
The Sony X930E is a bit better than the Sony X940E. The X940E has a more advanced full array local dimming feature and better black uniformity, so it performs better in a dark room. The X940E has a better black frame insertion feature to help clear up motion, but the X930E has a much better response time, so motion is smoother overall and has much less blur trail. The X930E is brighter with SDR and HDR content.
The Sony Z9D is marginally better than the Sony X940E. Overall performance is very similar, but the Z9D is a bit brighter and supports 3D. The Z9D handles fast moving scenes better than the X940E, since it has a faster response time and less motion blur. The Sony X940E is more consistent in its ability to remove judder from 24p sources.
The C7 is LG's current entry-level OLED model. It isn't found in the same 75" size as the X940E, but it has better picture quality, motion and input lag than the X940E. It isn't as bright, but if you don't mind the size difference it is a better TV.
The Samsung Q7F is the entry-level model in their QLED line of LCD TVs. It can produce a substantially wider range of colors, and it has better motion and input lag. Its overall picture quality is worse though since its local dimming is not nearly as good as the X940E and it cannot get as bright for HDR. Since they're both found around the same price, most people will be better suited with the X940E.
The Vizio P Series 2016 is a 4k LED TV that features a similar local dimming feature to the X940E. It isn't quite as sophisticated as the one found on the Sony, but it is still quite good. Overall, the Vizio P doesn't get as bright, making a bit less effective for HDR, but it does offer some significantly better native motion and input lag for gaming. It is significantly cheaper though, so if the X940E is out of your budget, the Vizio is a great alternative.
