Sony W800B LED TV Calibration Settings

We put the scene to Game to have the lowest input lag, as well as a more natural picture (it disables most processing settings by default).

Sony W800B Calibration Settings 1

The brightness was good out of the box. We reduced the backlight setting to 2 to hit our 100 cd/m2 white target, but you can set this to your preference depending on the amount of light in your room.

Sony W800B Calibration Settings 2

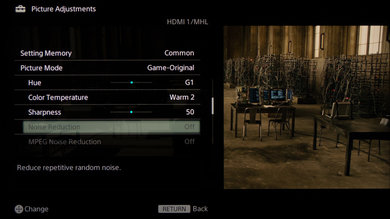

As with most TVs, the color temperature of Warm2 was the closest to 6500K.

Sony W800B Calibration Settings 3

The other settings are disabled. Smooth gradation is an anti aliasing feature. If you want the lowest amount of motion blur, set the MotionFlow setting to Impulse (check out why in our review).

Sony W800B Calibration Settings 4

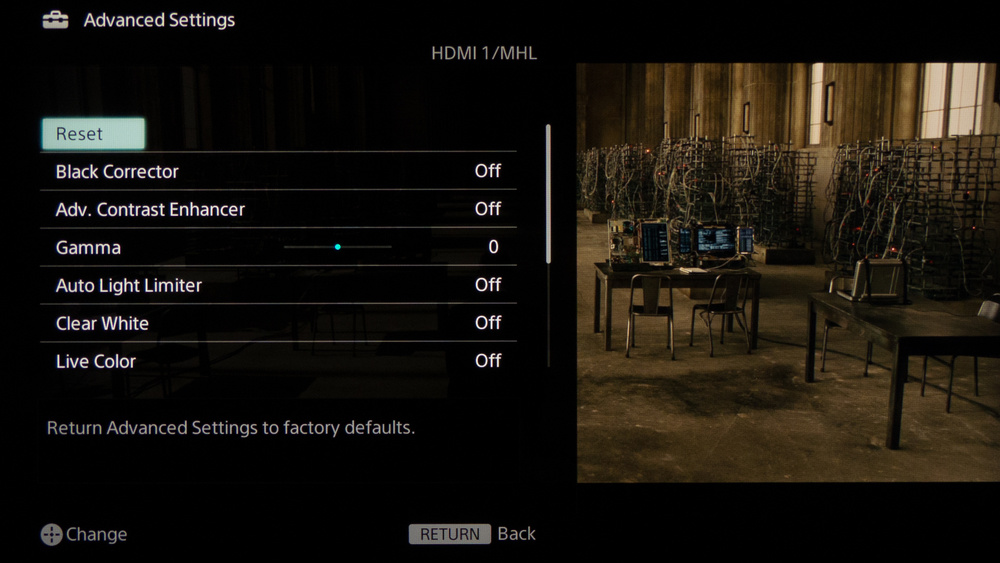

In advanced settings, everything is turned off.

Sony W800B Calibration Settings 5 Sony W800B Calibration Settings 6

As for the white balance, it was pretty close out of the box. The gamma curve was also very flat.

Sony W800B Calibration Settings 7
Questions Found an error?

Let us know what is wrong in this question or in the answer.

Email:

Questions & Answers

27 ANSWERED QUESTIONS
69
These are the best settings for gaming and watching TV?
There is no such thing as the best settings; it depends on what you like. These settings give the most accurate picture to the original source. But if you don't find the original source pretty, you will want to turn on a few processing options.
47
These settings work on the w700b, right? For gaming, what is best, impulse mode on or off? If I don't like the image, what options do I need to turn on? Noise filter and what else?
Yes, it should also be valid for the w700B. Setting Impulse mode to on has the lowest amount of motion blur. What don't you like about the picture? If you can pinpoint what you don't like, it will be easier to recommend which settings to alter.
17
What do you mean by: "it disables most processing settings by default" in the article above? If we disable processing of the picture, doesn't that reduce picture quality?
It depends on your goal and what media you are watching. Objectively, assuming high bit rate media, a TV having good picture quality means displaying a picture that is as close to the source as possible. That is the theory and the goal of professional calibrations. This means no TV processing. If a movie looks better with processing, why didn't they edit the media to appear that way in post-production? A TV shouldn't modify the original colors of the media. However, in practice, good picture quality is ultimately a personal preference. The majority of people don't care about whether the picture is accurate.
16
I have this version, which is the Sony Bravia KDL50W700B, which is the same panel as w800b and the red looks more like violet than red. Is there any way I can turn it to a more accurate red?
Change the color temperature. If it is still not perfect, you will have to play with the color gamut settings.
15
Are these settings good for playing PS4?
Yes, they are. The input lag is very low with these settings.
8
Why is the detail enhancer off? Shouldn't it be on for better picture?
It depends on the bit rate of the footage and your personal preference. If the bit rate is high enough (like on a Blu-ray), you don't need it. But for a low bit rate, it will give the appearance of better details - assuming you don't mind the fakeness of it and its artifacts.
8
Hi, can I use these same settings for the W700B?
Yes, except for the white balance values (which shouldn't be copied for other W800B units because this is unit-dependent).
7
Did you also disable the light sensor in the Eco settings?
Yes.
7
I'm about to buy this TV, and I just wanna know if there is a setting to watch 24p movies with cinema-like motion. I had some kind of option in my old plasma called 96hz or something that gives the video a very smooth and theater-like image...
Yes. The setting is called CineMotion.
7
Hello, fantastic site. I just purchased this TV and I am wondering if you recommend using these same settings for viewing sports? Are there certain features I should turn on for sports that would work better? If so, which do you recommend? Thank you!
These work well for sports if you prefer a natural look. If you want a smoother feeling, set MotionFlow to high. However, keep in mind that the ball/puck will sometimes disappear if you use that setting.
6
In the pro picture setup settings, what do you recommend setting the dynamic range to, and do you have the SBM on or off? Thanks.
Unfortunately, we don't currently test or calibrate sound. Dynamic range should likely be left off to avoid extra processing, and whether or not you enable SBM should depend on your source.
5
Do you have any recommended sound settings for this TV?
Unfortunately, no. We have not tested or calibrated for sound this year.
5
I thought Cinema was supposed to give a more natural picture. Is the Game preset the best to use on a Sony TV?
There is no absolute best, it depends on what you will use it for, and also on your personal preferences. Cinema is also a good start.
4
Do you also recommend disabling Cinema Drive?
No, leave that on. This allows for judder-free 24p playback.
4
If I turn on impulse mode, will I get more lag, or will it stay the same?
No, the input lag stays the same.
4
Since Impulse mode reduces brightness, is there enough room in settings to compensate for it?
You can compensate by disabling the ambient light sensor and bringing the 'Backlight' setting to the max, but even then it can't get as bright.
4
What is 'Display Speed Preference'? On or off for gaming? Thanks!
On for gaming. It helps attain lower input lag.
4
I'm trying to figure out what Cinemotion and True Cinema from Motionflow do to Blu-rays. Do they change or alter the source?
They are both features used to eliminate judder in 24p content. They will allow your TV to display 24 fps content at 24 fps (normally it would enhance the frame rate to the native refresh rate of the TV), and also to downconvert 60 fps content to 24 fps.
They are processing features that are entirely handled by the TV, and they alter the original signal from the player. The input signal from your Blu-ray player is intercepted by the TV, at which point the TV's computer applies whatever processing you've enabled and then relays that altered image to the screen.
3
How do I disable the Soap Opera Effect on the Sony kdl50w800b? I searched the internet but couldn't find any proper link. Your help is much appreciated.
Turn off 'Motionflow'.
3
I recently bought this TV based on a couple of reviews (yours included) touting its black levels and uniformity. However, my set has nowhere near the blacks your sample had, and uniformity is just okay, being that the right side of screen is a little brighter than the left side. Do you think I have a bad set, or maybe even a different VA panel? It's not IPS.
VA panels don't have better blacks than this. 5000:1 is the maximum contrast for an LCD TV, so the blacks are great in comparison, but not great compared to a plasma TV. It's normal that they would look gray in a pitch black room, even with this TV.
If you'd like to send us a photo of your screen, we can tell you whether your uniformity issues are bad enough to warrant an exchange, or if they're within normal limits.
2
For gaming, should I leave smooth gradation off?
If you notice the game's picture has lots of jagged lines, you might want to try it out. Otherwise, there's no need to enable it.
1
Does this TV use 1.4 HDMI?
Yes.
1
I bought a Sony w700b earlier today. The picture settings are good right out of the box, but after applying the adjustments you wrote for the w800b, the picture was too dark for my liking. After turning the backlight all the way up to max, the image is still quite dark. Any other way of brightening the picture?
You should try disabling the Eco sensor if you have not done so yet. Doing so might get you a brighter picture. If that doesn't do it for you, try adjusting the gamma setting. That can brighten up the shadows in the picture, which might get you closer to the picture that you want.
1
Does the white balance change from TV to TV? Meaning my W800b and your w800b white balance could be different?
Yes.
1
I can't enter urls on my KDL50W800B TV. I go to the home page, but there is no provision to enter an address. What do I do now?
Try pressing the up arrow on the remote until the address bar is highlighted. You should then be able to select it, which will then open a keyboard for you to enter the url.
0
Hi. I just bought the 50" w700b and it looks great. However, I used your recommended picture settings and the image has an overall grayness to it. Not much in the deep black. Maybe I'm just used to my old Samsung, as I used dynamic contrast on that.
You could try using "Adv Contrast Enhancer," which will produce similar results to the Dynamic Contrast setting. You might also want to try increasing the backlight. Together, those settings might help you get the look you want.
0
Sony kdl55w700B can't locate the signal from the HDMI cable, even though it shows in the "input" setting.
There are a few possibilities. You might have an issue with the connection itself. Try unplugging and firmly plugging the HDMI cable back into the TV and source device and see if that helps. If not, you might want to try connecting to a different port, and to the same port with a different HDMI cable. That will help you figure out if the port or cable is faulty. You could also try resetting the TV to factory default settings to see if that is able to correct the problem.
If the problem isn't with the port, cable, or TV, then it's with your source. It might be outputting at the wrong frame rate, which you could try fixing by reducing the output frame rate and seeing if that solves the issue. Otherwise, the device itself may have a port or internal issue in need of repair or correction.
Feel free to email us to let us know what the source is so we can offer better assistance.
