Sony X940E LED TV Calibration Settings

For additional settings information, please consult the Common Problems and How to Calibrate pages.

These are the settings used to calibrate our Sony 75" XBR75X940E. The following settings work well for any content, from watching movies to TV shows and gaming. For Gaming, some minor tweaks need to be made and they are listed below.

Before we start, it is important to know that on Sony TVs each input has it own independent picture setting. This means that settings changed while on HDMI 1 won't be applied to HDMI 2. It is important to change the settings to your liking for each input, as changes in one input won't affect the rest. OTA channels, Apps (Netflix, YouTube, etc.), USB files (videos or picture) and video inputs and so on won't share settings.

General Settings

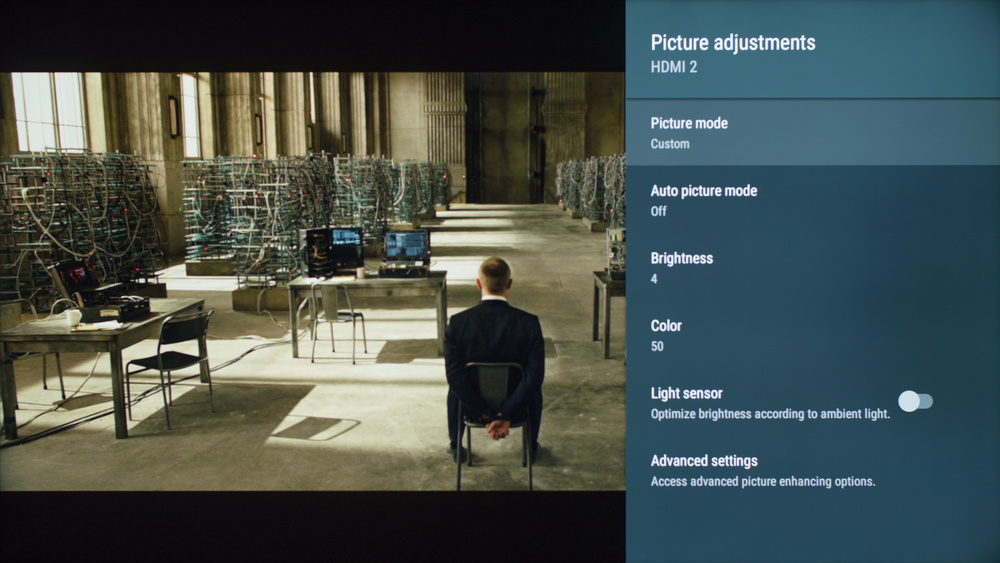

For movies and other TV content, we selected the 'Custom' 'Picture Mode', since it is the picture mode that brought us the closest to our calibration goal, which is to be as true as possible to what the content creator intended. In our totally dark room, to reach our calibration luminosity of 100cd/m², we set the 'Brightness' to 4. Note that here the 'Brightness' is the equivalent of what other brands of TV often call 'Backlight'. The 'Brightness' can be changed to match your room lighting, and it won't affect the final picture quality. We turned off the 'Light sensor' and the 'Auto picture mode' because we did not want the brightness and picture settings of the TV to change automatically. We also left untouched at 50 the 'Color' setting.

Sony X940E Calibration Settings 2

In the 'Brightness tab, we set the 'Contrast' to 95 since higher than that it was introducing some clipping. The 'Gamma' to was left to 0, and the 'Black level' to 50, their default values. The 'Black adjust' and 'Adv. contrast enhancer' were left turned off, since we did not want to add any image processing. Note that for the calibration, we turned off the 'Auto local dimming' and 'X-tended Dynamic Range', but you should turn on these features for regular use since it will help to have deeper black, higher peak brightness, and better contrast ratio during normal TV use. Note that we don't suggest to ever use the 'Low' setting of 'Auto local dimming', as it introduces some horizontal banding in dark scenes.

Sony X940E Calibration Settings 47

In the 'Color' tab, we left at the default value of 50 for 'Color' and 0 for 'Hue'. We selected 'Expert 1' for the 'Color temperature' as this is the closest to the warm temperature of 6500K we are trying to reach during our calibration process. If you find the color temperature to be too warm (reddish or yellowish) you can set it to a colder temperature. 'Live Color' was also left turned off, once again because we do not want to add extra image processing and aim to display the content as close as possible to what the creator intended.

Sony X940E Calibration Settings 7

In the 'Clarity' tab, we left 'Sharpness' untouched at 50 (50 does not add any sharpness to content). 'Reality Creation' was also left turned off, but it could be turned on if you are watching some older low-resolution content since it can help to improve the final image quality. You can adjust with the 'Resolution' slider depending how much effect you want to be applied. The 'Mastered in 4K' option is a feature that will optimize the upscaling of 1080p Blu-rays movies that are listed as being 'Mastered in 4K'. It will not be possible to apply this setting if you are not watching a movie through other means than via a Blu-ray player. 'Random noise reduction', 'Digital noise reduction' and 'Smooth gradation' were all left untouched at off, but those could be useful to ameliorate the quality of older and low-resolution content. 'Smooth gradation' is especially useful if you see a lot of color banding typically seen in 8 bit content (often in skies in movies) since it will smooth out the 8-bit gradations, resulting in less visible banding.

Sony X940E Calibration Settings 46

In the 'Motion' tab setting, we left the 'Motionflow' and 'Cinemotion' turned off, but if you like the motion interpolation (or commonly named the soap opera effect), you can adjust the 'Motionflow' setting to 'Custom' and increase the 'Smoothness' slider. The 'Clearness' slider controls the image flicker control of the TV (black frame insertion). To know more about this feature you can click here. If you are watching a movie via 60p/60i and notice some judder, set 'Motionflow' to 'True Cinema' and 'CineMotion' to 'High' to reduce it. Note that this, unfortunately, does not remove judder 100% of the time, as we found out during our testing, but it is the best setting you can use to remove judder on the X940E. This doesn't add any soap opera effect

Sony X940E Calibration Settings 8

HDR Settings

When HDR content is detected, the TV will switch automatically to the best settings, but if you want to be sure you can verify that the 'Brightness' is set to max, that 'Auto local dimming' is set to 'High' and that 'X-tended Dynamic Range' is set to 'High' to be sure to have the best performance.

In the 'Video options' tab, just verify that 'HDR mode', 'HDMI video range' and 'Color space' are set to 'Auto' and it should change automatically to match the type of content you are watching, in this case, HDR content.

Sony X940E Calibration Settings 10

SDR Gaming and HDR Settings

For playing games via a video game console or PC (in SDR or HDR), first choose the 'Game' 'Picture mode', and copy the settings previously mentioned for the 'General settings'.

Sony X940E Calibration Settings 43

Miscellaneous setting

If you connect a device that needs to use the full HDMI bandwidth, like a UHD Blu-ray player, a video game console or a PC set to output at 4k 60p 4:2:0 10 bit, 4:4:4 or 4:2:2, you'll need to connect them via the HDMI port 2 or 3 and set the 'HDMI signal format' to 'Enhanced format', via the 'External inputs' setting pages.

Sony X940E Calibration Settings 44

White Balance

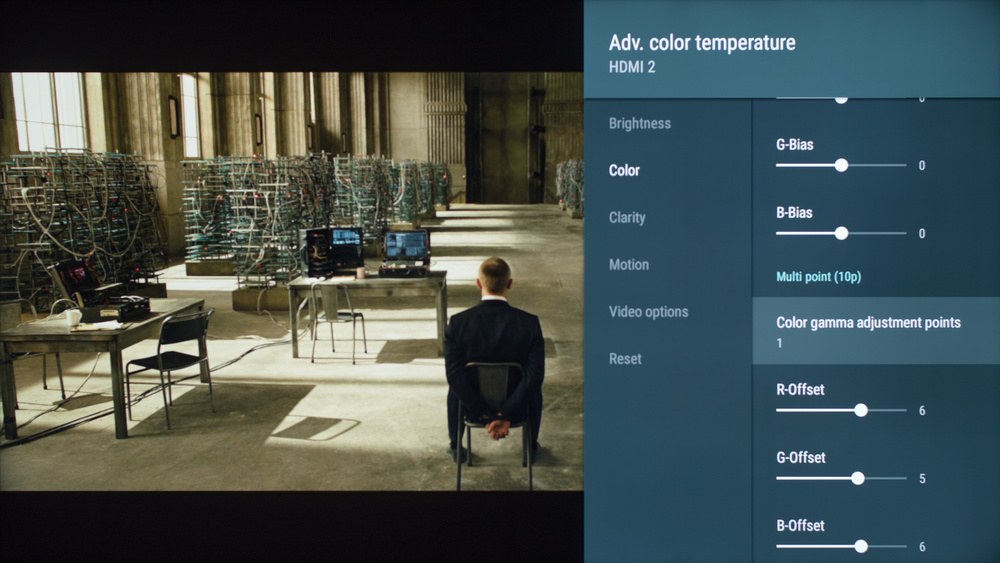

The following are the results of the white balance and colorspace calibration on our unit. They are provided for reference, and should not be copied as the calibration values vary per individual unit even for the same model and same size as the TV we reviewed due to manufacturing tolerances. If you want to try them you will need to enter all values shown, as all of them are active at the same time. If you end up with worse picture quality, simply reset them to the default values.
