Whynter NEX ARC-1230WN
Midea Duo MAP12S1TBL
Tested using Methodology v1.0
Updated Jun 05, 2025 05:11 PM
SEE PRICE
Amazon.comTested using Methodology v1.0
Updated Jun 12, 2025 03:35 PM
SEE PRICE
Amazon.com
TypeDual-Hose Portable A/C
Compressor TechnologyInverter
Advertised Capacity (DOE)12,000 BTU/hr
Tested Capacity9,256 BTU/hr (2,714 W)
TypeDual-Hose Portable A/C
Compressor TechnologyInverter
Advertised Capacity (DOE)10,000 BTU/hr
Tested Capacity7,533 BTU/hr (2,209 W)
Our Verdict
Whynter NEX ARC-1230WN

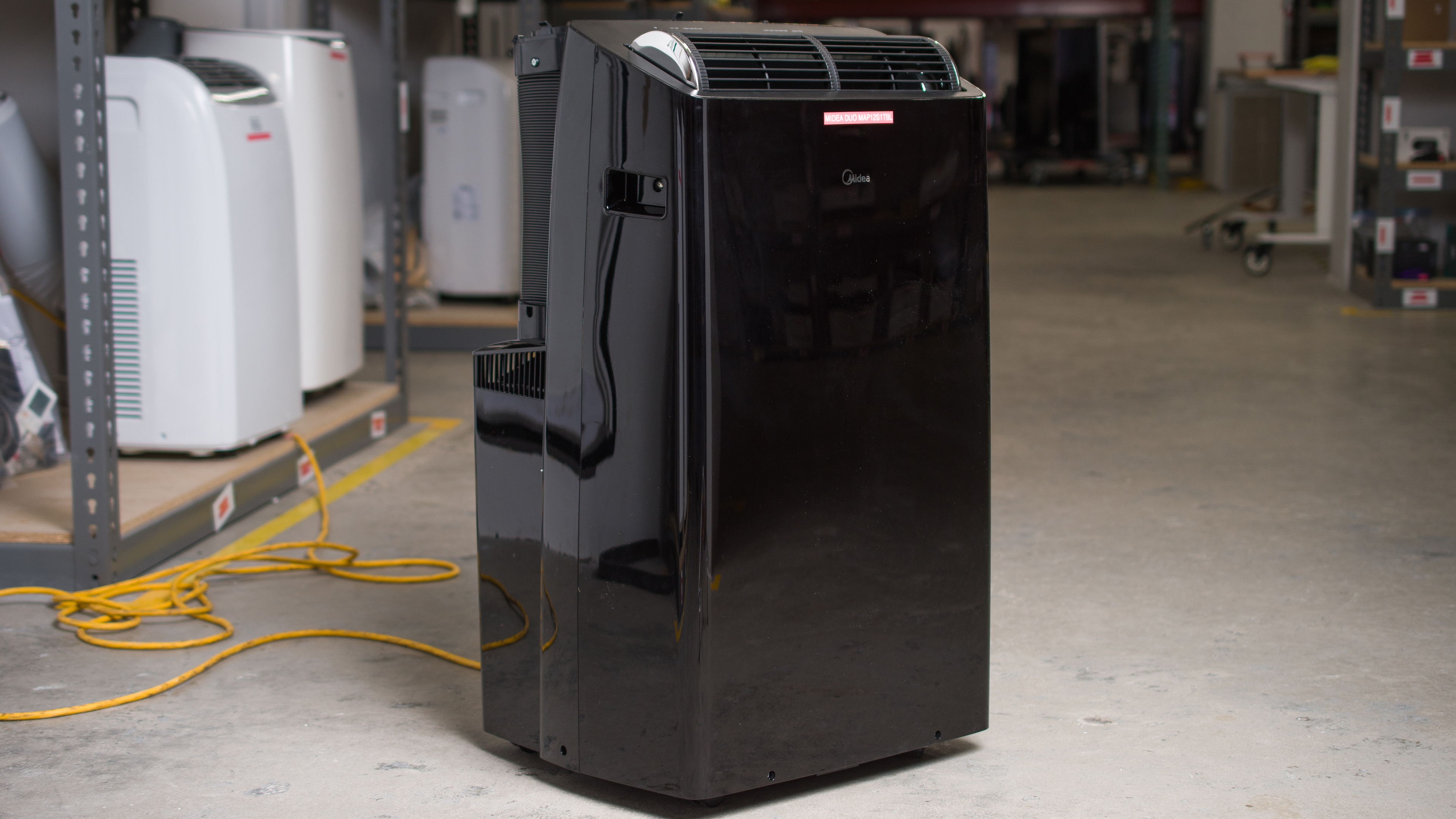

Midea Duo MAP12S1TBL
The Whynter NEX ARC-1230WN and Midea Duo MAP12S1TBL are mechanically similar units, sharing the same physical and in-app control interface. That said, the Whynter does pack in a more powerful inverter compressor, allowing it to cool an equivalently-sized space a little faster. That said, the Midea is still a very good option, especially if you don't need the extra capacity for a smaller room and can find it for a lower price.
Variants
- ARC-1230WN (White)
- MAP12S1TBL (Black)
Check Price
White
ARC-1230WN
SEE PRICE
Amazon.comBlack
MAP12S1TBL
SEE PRICE
Amazon.comWhite
ARC-1230WN
SEE PRICE
Walmart.comBlack
MAP12S1TBL
SEE PRICE
Amazon.comWhite
ARC-1230WN
SEARCH
B&HWhite
ARC-1230WN
SEARCH
BestBuy.comMain Differences forLarge Room
Large Room
Threshold
Large Room
8.0
7.7
Capacity
7.9
7.5
Full Comparison
Design
Size
5.3
5.7
Dimensions Photo
Height
85 cm (33.3")
82 cm (32.4")
Width
48 cm (18.9")
48 cm (18.7")
Depth
47 cm (18.6")
47 cm (18.3")
Body
Type
Dual-Hose Portable A/C
Dual-Hose Portable A/C
Material
Plastic
Plastic
Weight
34 kg (75 lbs)
34 kg (74 lbs)
Power Cord Length
1.8 m (5.9 ft)
1.8 m (5.9 ft)
Performance
Capacity
7.9
7.5
Temperature 28°C -> 21°C
Advertised Coverage
600 ft² (56 m²)
550 ft² (51 m²)
Advertised Capacity (DOE)
12,000 BTU/hr
10,000 BTU/hr
Time To Cool From 28°C To 21°C
31 min (0.52 hrs)
38 min (0.63 hrs)
Sensible Energy Exchanged
4,485 BTU (1,315 Wh)
4,485 BTU (1,315 Wh)
Latent Energy Exchanged
297 BTU (87 Wh)
286 BTU (84 Wh)
Tested Capacity
9,256 BTU/hr (2,714 W)
7,533 BTU/hr (2,209 W)
Efficiency When Cooling
7.1
6.7
Temperature And Power Consumption 28°C -> 21°C
Electrical Energy Consumed
621 Wh (2,118 BTU)
700 Wh (2,387 BTU)
Total Energy Exchanged
4,782 BTU (1,402 Wh)
4,771 BTU (1,399 Wh)
Energy Efficiency Ratio
7.7
6.8
Efficiency When Maintaining Temperature
8.0
7.5
Power Consumption While Maintaining Temperature
Electrical Energy Consumed
298 Wh (1,016 BTU)
325 Wh (1,108 BTU)
Energy Exchanged
1,737 BTU (509 Wh)
1,675 BTU (491 Wh)
Energy Efficiency Ratio
5.8
5.2
Temperature Stability
8.5
9.4
Temperature Stability Around The Setpoint
Temperature Delta
0.3 °C (0.5 °F)
0.1 °C (0.2 °F)
Humidity Stability
7.9
8.3
Humidity Stability Over Time
Humidity Delta
2.0%pt.
1.3%pt.
Inside Noise
8.4
8.6
Inside Noise @ High
Compressor On @ Max Setting
61.7dBA
60.0dBA
Compressor Off @ Max Fan Speed
60.8dBA
57.4dBA
Inside Noise @ Low
Compressor On @ Min. Setting
47.3dBA
50.4dBA
Compressor Off @ Min. Fan Speed
38.0dBA
36.4dBA
Environmental Impact and Features
Environmental Impact
Refrigerant
R32
R32
Global Warming Potential (GWP)
675
675
Ozone Depletion Potential (ODP)
0
0
Features
Controls Picture
Compressor Technology
Inverter
Inverter
Thermostat Type
Digital
Digital
Dehumidification Mode
Yes
Yes
Heat Mode
No
No
Remote Control
Yes
Yes
Smart App
Yes
Yes
Check Price
White
ARC-1230WN
SEE PRICE
Amazon.comBlack
MAP12S1TBL
SEE PRICE
Amazon.comWhite
ARC-1230WN
SEE PRICE
Walmart.comBlack
MAP12S1TBL
SEE PRICE
Amazon.comWhite
ARC-1230WN
SEARCH
B&HWhite
ARC-1230WN
SEARCH
BestBuy.com
You have 10/10 free reviews left
To access
and
Become an Insider
unlimited full product reviews,
product prices
other exclusive site features
Whynter NEX ARC-1230WN
Midea Duo MAP12S1TBL
Comments
Whynter NEX ARC-1230WN vs Midea Duo MAP12S1TBL: Main Discussion
What do you think of these products? Let us know below.
Looking for a personalized buying advice from the RTINGS.com experts? Insiders have direct access to buying advice on our insider forum.
Hey RtingsUser2935818,
For what I understand, they both are pretty identical, but there are a few factors that could play into why they are slightly different. The first would be margin of error, we try to keep the room as quiet as possible and use the same SPL meter, but the readings can bounce all over the place. We noted the most consistent reading from the meter. Second, the Midea DUO we have is 10000 BTU while the Wynter is 12000 BTU so they likely have different compressors. Finally, the low noise was taken while the AC was maintaining pressure, so the Whynter was at around 295 watts and the Midea was around 320 watts. I don’t think that would account for the full 3 dBA difference (it’s likely it was more margin of error), but it might have impacted it a bit.
Thanks for pointing this out, though. Feedback like this helps us improve the quality of our reviews in the future!
Have a great day!
Are you sure there was a volume difference? Strange considering Midea produces these units for Whynter (at least that is what many claim).
