Raw Frequency Response

What it is: The average uncompensated frequency response of the headphone. For in-ears and earbuds, this corresponds to the average of 5 measurements/re-seats on the dummy head (HMS). For over/on-ear headphones, this corresponds to the average of 5 measurements/re-seats on the HMS (Head Measurement System) for the mid and treble ranges, and 5 measurements/re-seats on 5 human subjects for the bass range.
When it matters: This is for those who want to see the raw and uncompensated frequency response of the headphone. Some of the more advanced users, are able to read and evaluate headphone frequency response in its raw form and without compensation. This will be especially useful to them if they have their own headphone compensation/target curve, which may differ from the compensation curve/target response used by RTINGS.com.
Score components:

Frequency response is a measure of the magnitude of the output of a system compared to its input, as a function of frequency. In other words, it describes how accurately a system reproduces each frequency of an audio content, in terms of amplitude. For example, for an input signal that has three frequencies of equal amplitude (say, 100Hz, 1KHz, and 10KHz, all at -6dB FS), a headphone with a neutral frequency response would output a signal that, just like the input, has equal amplitudes at 100Hz, 1KHz, and 10KHz.

We evaluate the frequency response of headphones from 10Hz to 22KHz, which is then broken down into three different frequency bands: bass, mid, and treble. Each headphone is measured/re-seated multiple times, and the final frequency response plot is the average of those multiple measurements.

Test results

When it matters

Frequency response is the most important part of an audio reproduction, and for the most part, the perceived subjective sound quality of a speaker can be predicted from its frequency response 1,2,3,4. A good headphone has a neutral frequency response and reproduces the audio content (music), as it was intended by the producer/engineer. That is, if the music was mixed to sound bass-heavy, a good headphone will reproduce it as bass-heavy. Conversely, if the content is supposed to sound bright, a headphone with a neutral frequency response will reproduce it as bright.

Having a good frequency response is important for all headphones, regardless of their use case, since it has the largest effect on their perceived sound quality. However, the role of sound quality is more crucial for some use cases such as critical listening and gaming, compared to sports/fitness or commute/travel where stability or noise isolation may be more important.

The raw or uncompensated frequency response plot of a headphone is useful to some of the more advanced users, who are able to read and evaluate a headphone's frequency response in its raw form and without compensation. That is, prior to being "flattened" by applying the target/compensation curve to it. This will be especially useful to them if they have their own headphone compensation/target curve, which may differ from our target response.

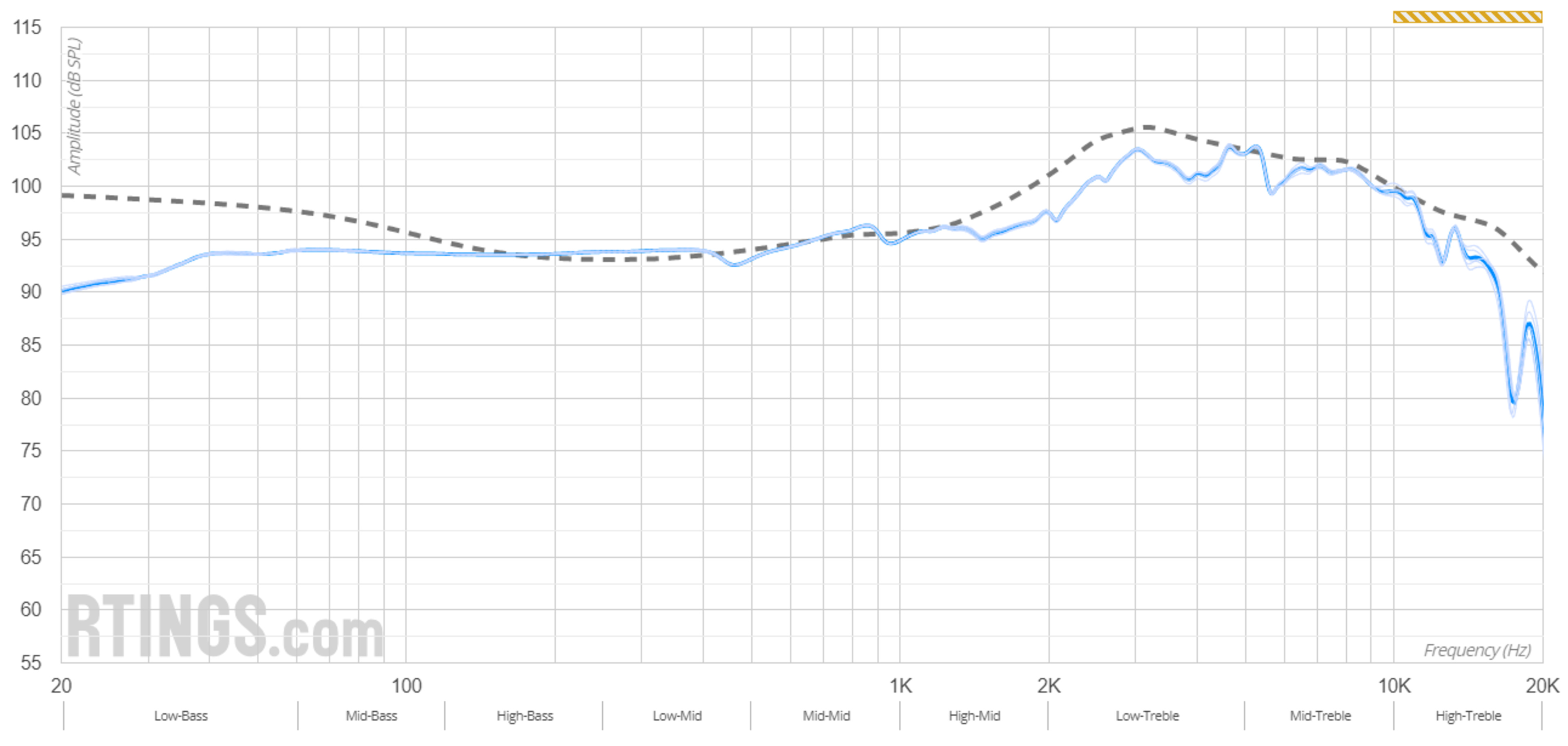

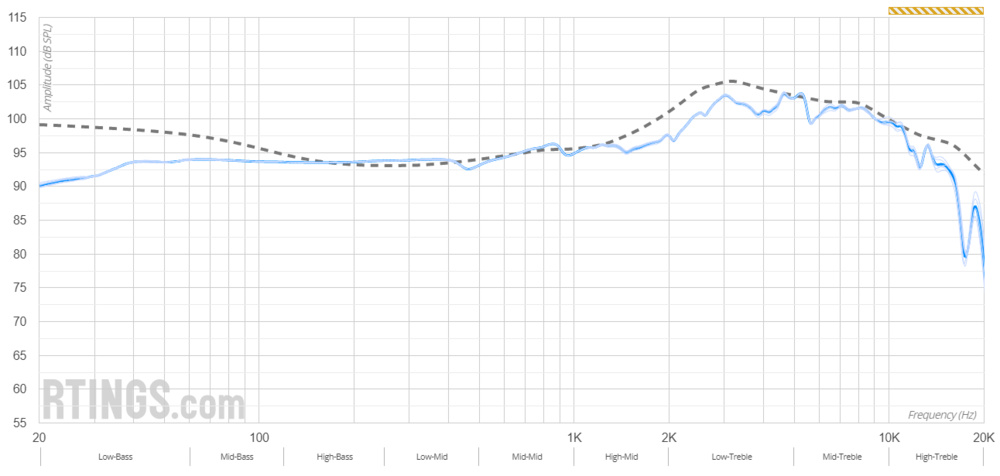

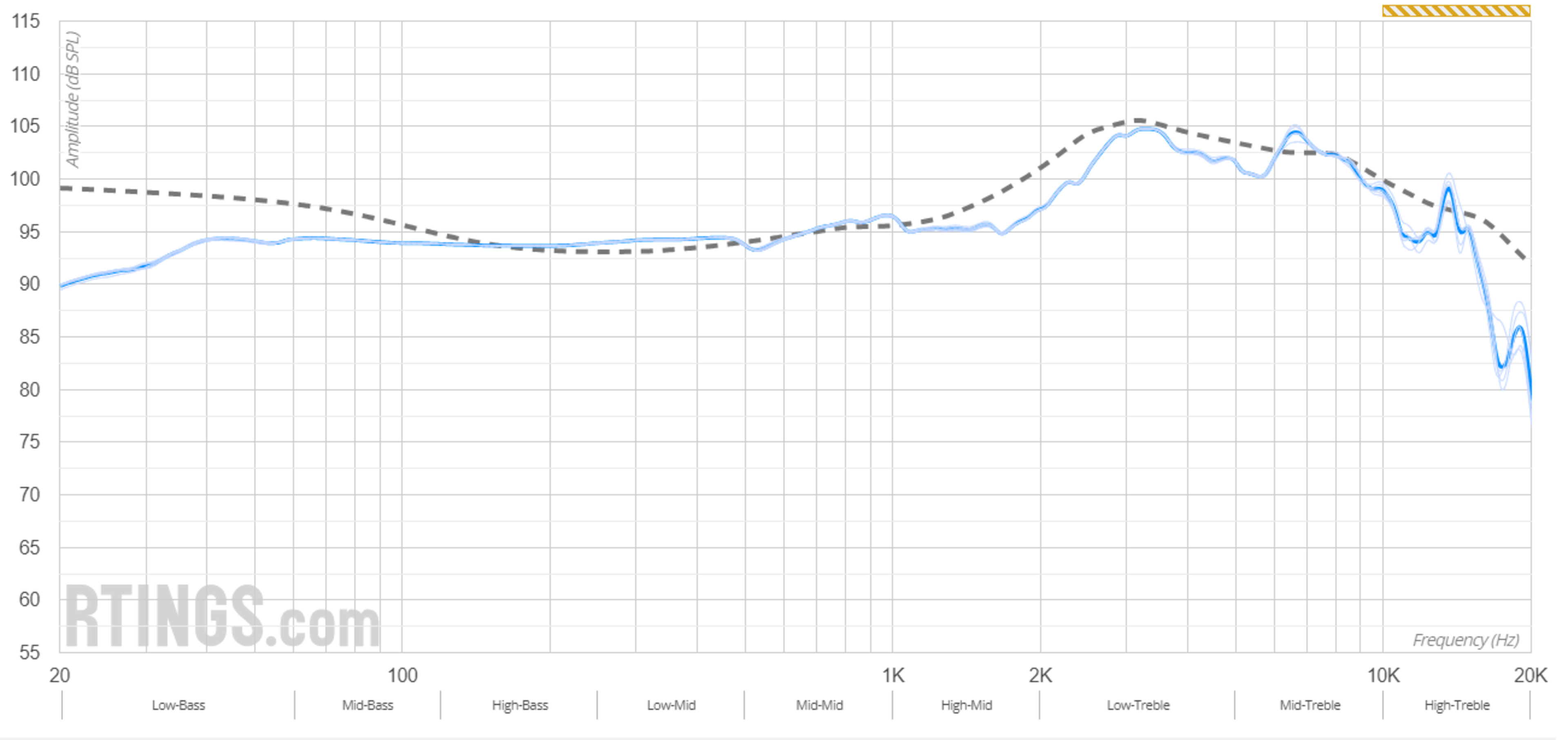

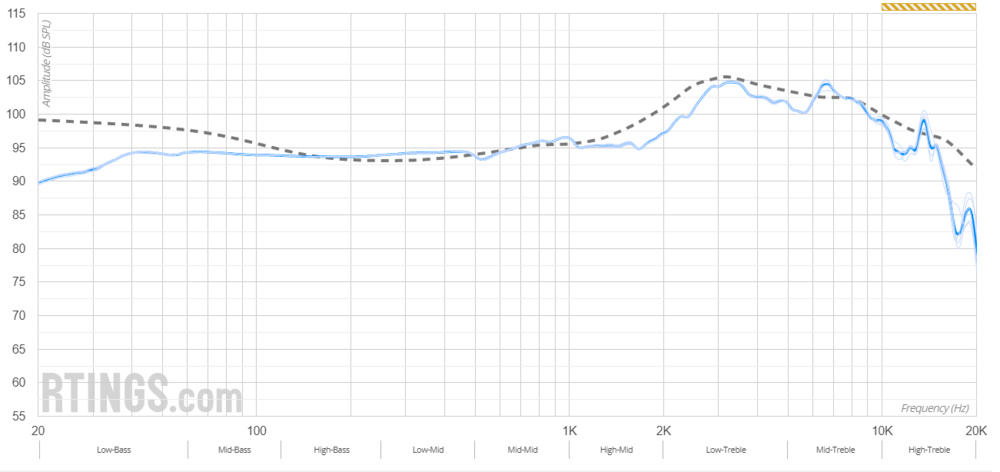

Raw Frequency Response (yellow dotted line is the target)

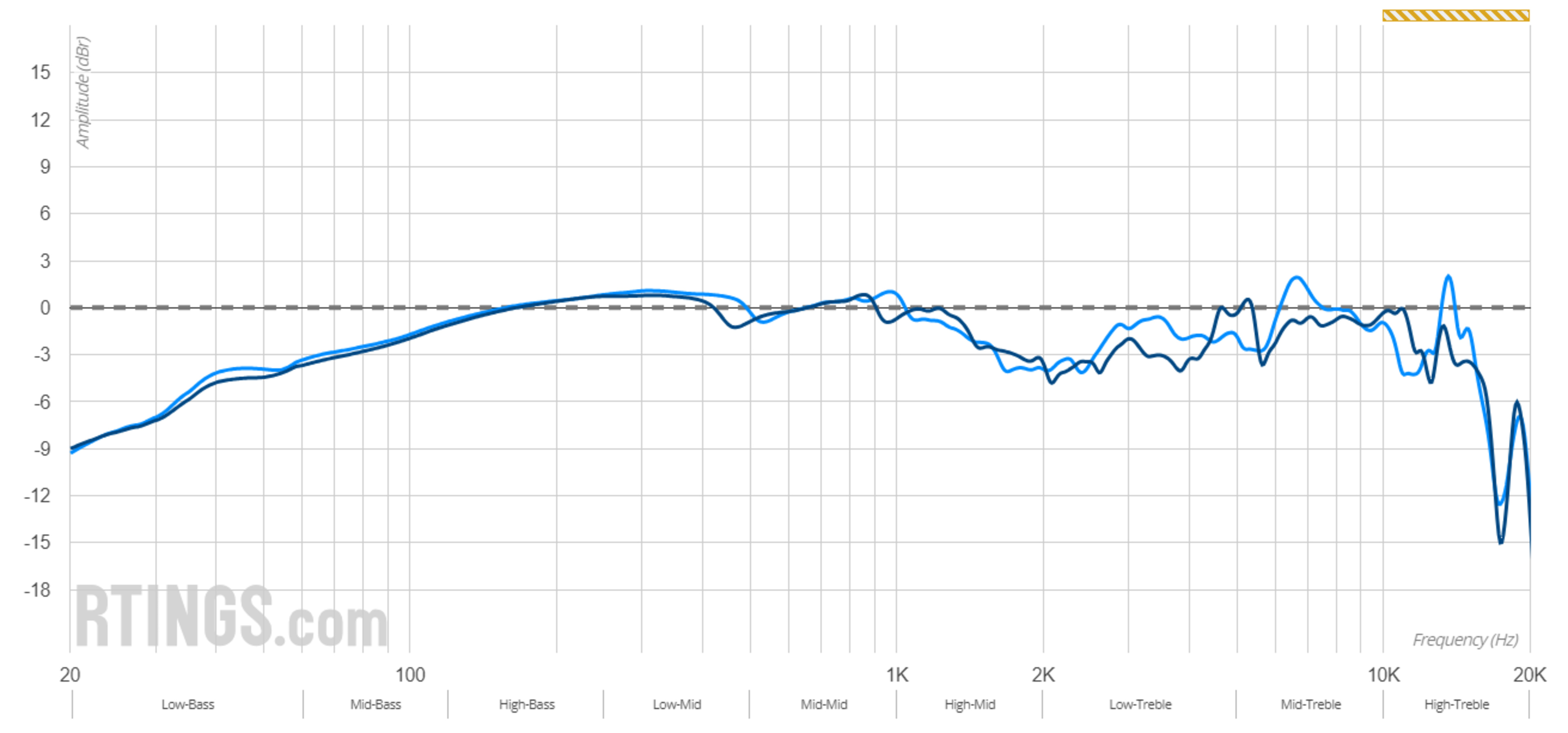

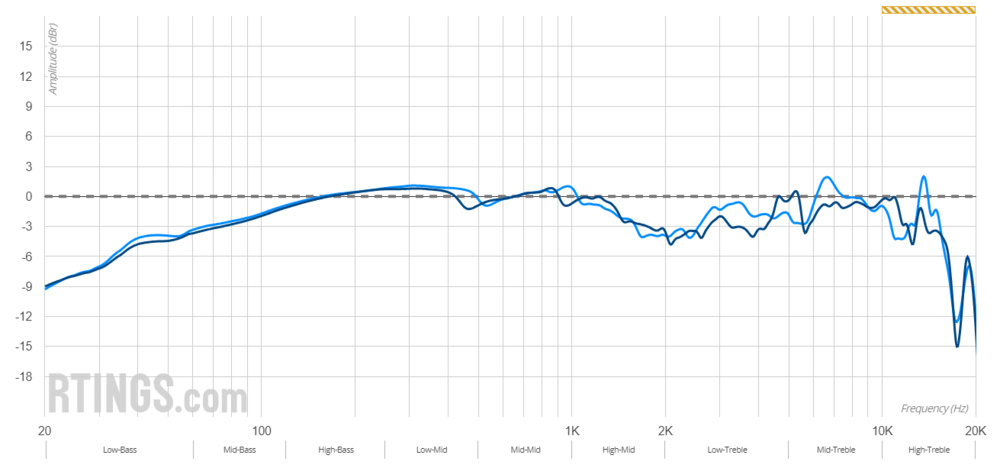

Compensated Frequency Response (flat dotted line is the target)

Our Tests

Testing Procedure

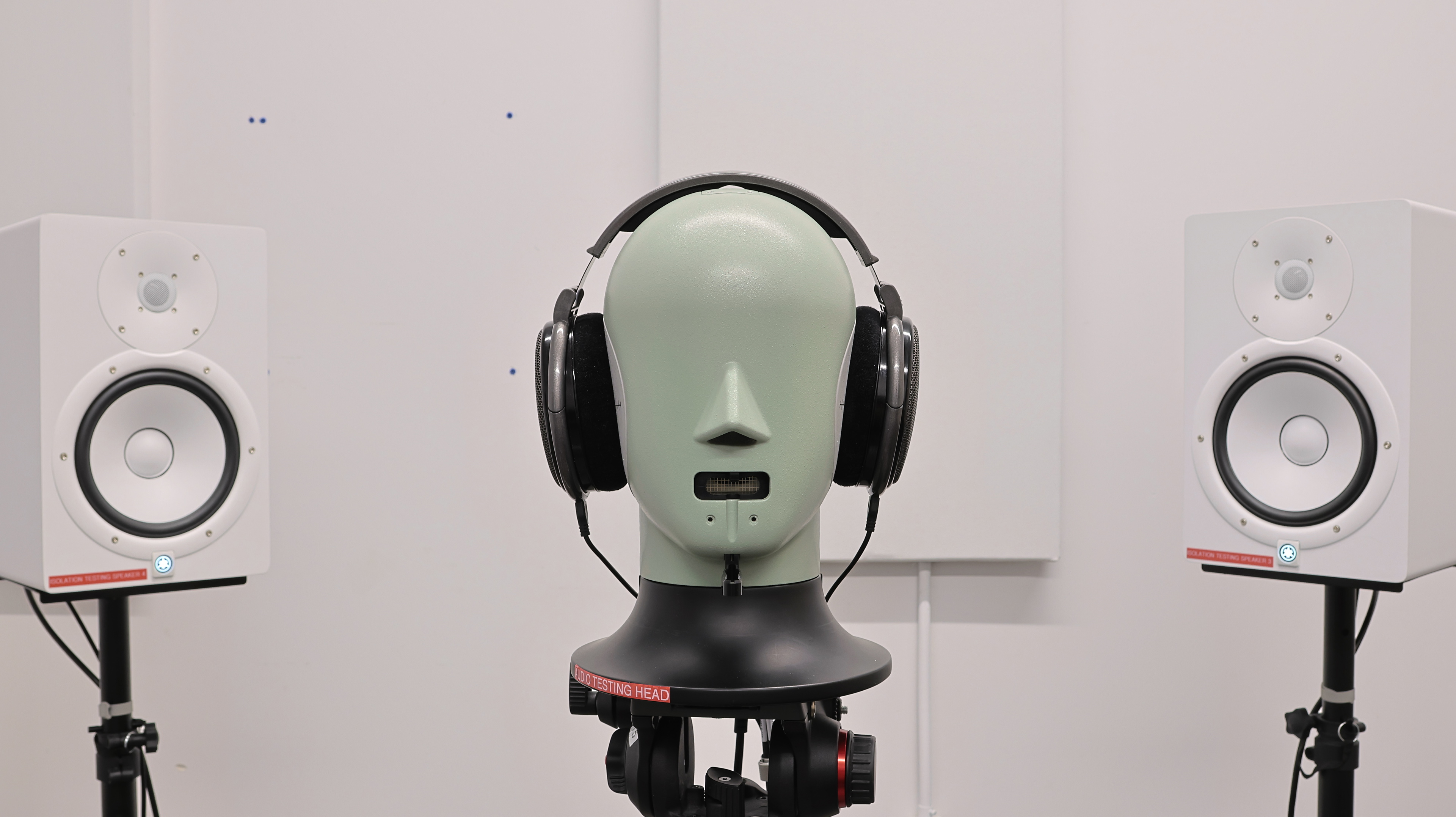

The test signal for our headphone measurements is a 16-bit/48KHz 10-second sine wave swept at -6dB FS (RMS) between 10Hz and 22KHz. The headphones are placed on a Head Acoustics HMS (Head Measurement System), which is connected to an RME UFX audio interface. For passive headphones, the headphones are driven by a Schiit Ragnarok amplifier, and for active headphones, the headphone's own amplifier is used. The measurements are performed at two different intensity levels; 90dB SPL and 100dB SPL.

The signal level is calibrated post-compensation (i.e. after being flattened by applying the target response) using a periodic pink noise limited between 250Hz and 2KHz. The resulting sound pressure level is measured and calibrated with the SPL meter in Room EQ Wizard (REW), which is set to C-weighting and Slow.

RTINGS.com Frequency Response Test Signal

RTINGS.com Frequency Response Calibration Signal

Each headphone is measured/re-seated multiple times. The reason for this is that some factors, like the position of the headphone on the head or wearing glasses, can cause variations in the measured frequency response. The final frequency response plot is the average of these multiple measurements. In-ears/earbuds are measured 5 times only on the HMS (Head Measurement System), but over/on-ear headphones are measured/re-seated 5 times on the our dummy head (HMS) for the mid and treble ranges, and 5 times on 5 human subjects for the bass range. We decided to measure the bass of over-ear and on-ear headphones on human subjects since most dummy heads available today have ears that are larger and stiffer than the average human ear, and therefore, a lot of headphones (especially closed-back ones) fail to achieve a proper and an air-tight seal on them5. This results in measurements that don't match the headphone's performance on humans. For more information, check out our article and video on headphone frequency response consistency.

Target Curve

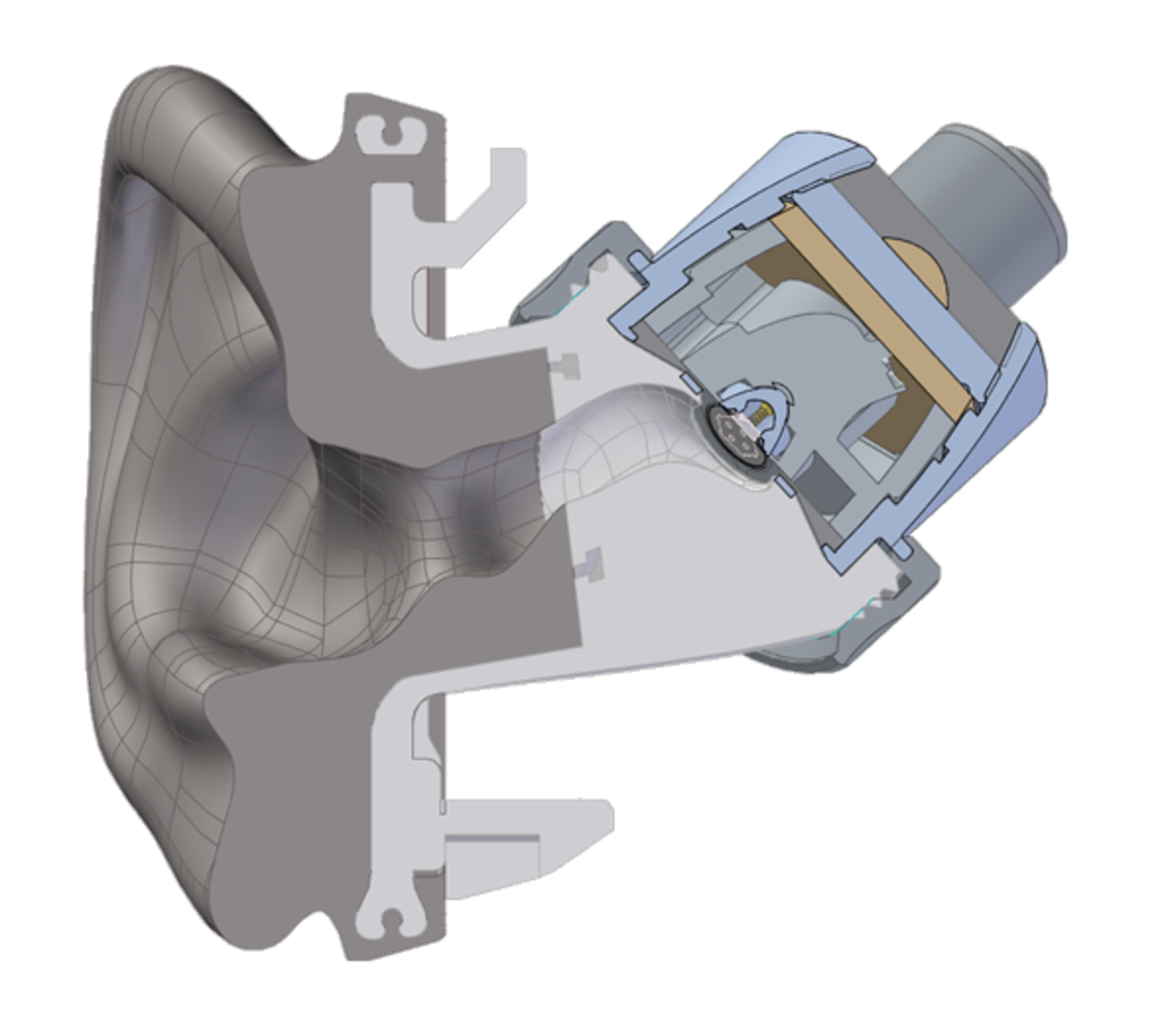

Our reference for the ideal headphone frequency response is the loudspeaker. For loudspeakers, it is widely accepted that the ideal response is a flat frequency response measured with a measurement microphone, on-axis, in an anechoic environment. However, headphones, due to their design, can't be measured with a measurement microphone and therefore a dummy head must be used. Also, the microphone inside dummy heads have a similar response to the human eardrum, which is quite different from a measurement microphone. Additionally, the shape of the pinna (the outer ear) and the ear canal add resonances to the response of a dummy head above 1KHz, making its response even more different than that of a measurement microphone.

Flat Frequency Response of a Microphone
(www.soundprofessionals.com)

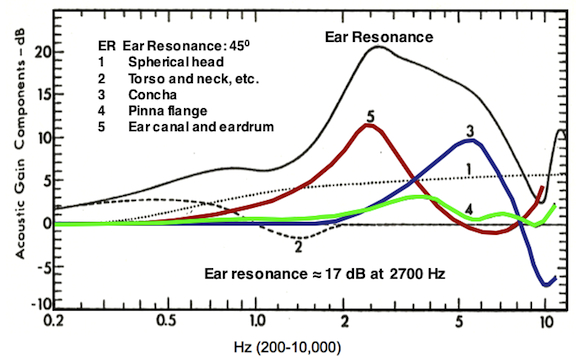

Ear Resonances of a Dummy Head
(www.hearinghealthmatters.org)

The Free Field and Diffuse Field target curves attempt to solve this issue by taking the frequency response of a dummy head, measured either in a free field (anechoic chamber) or a diffuse field (reflective chamber), as the "flat" reference. This way, the resonances of the pinna and the ear canal will be included in the target response, which allows for the flattening of the headphone's frequency response by deducting it from the target response. However, the shortcoming of the FF and DF target responses is that they are based on the response of a dummy head in a test environment, and don't really replicate the sound that headphones are compared to, which is the sound of a pair of loudspeakers in a room. Therefore, headphones tuned to the FF or DF targets tend to be perceived as too bright and lacking in bass. This is because when a pair of speakers that measure flat in an anechoic room are placed in a regular room in a stereo setup, they tend to interact with the acoustics of the room. One of the more significant results of this interaction is a few dB of buildup in the bass range6.

Head Acoustics HMS Free-Field Response

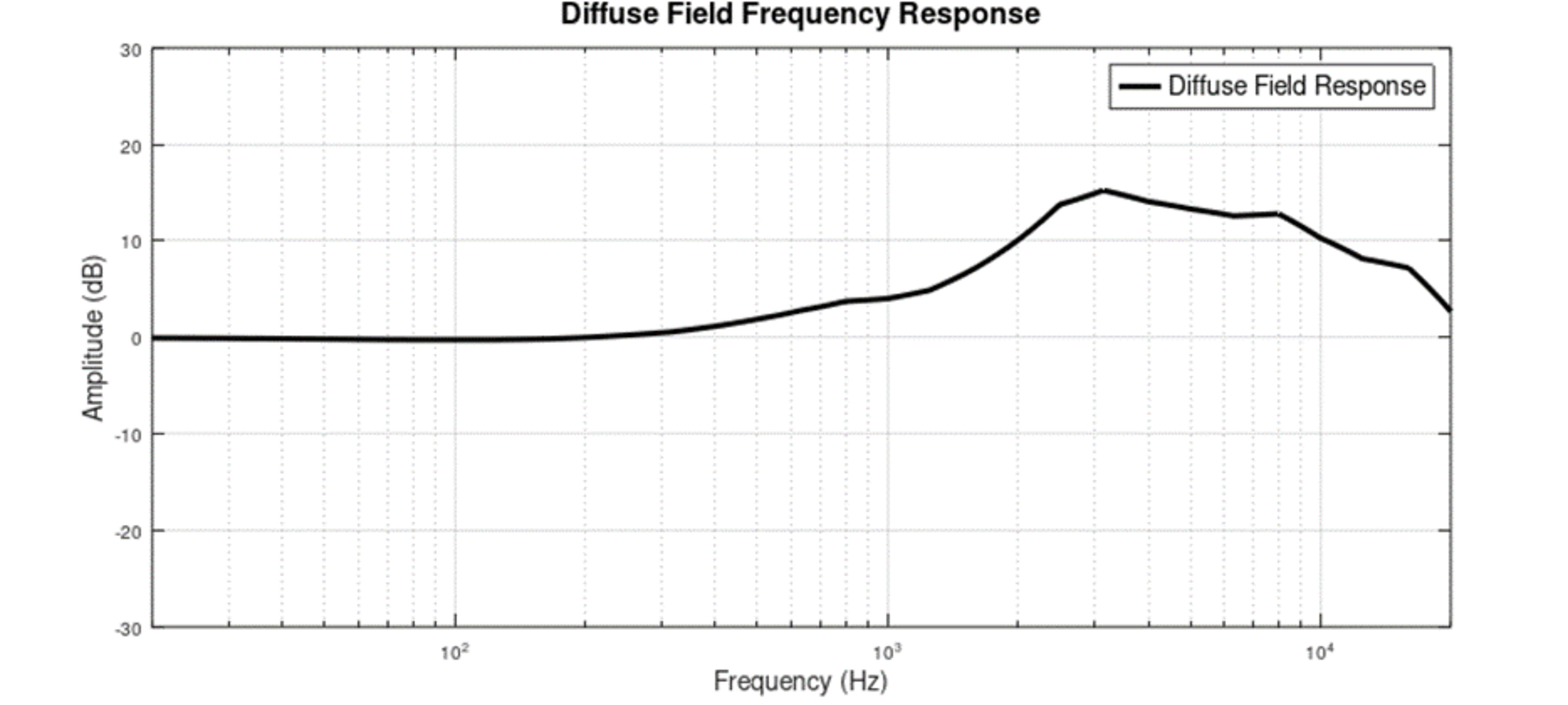

Head Acoustics HMS Diffuse-Field Response

As a solution, and based on the idea that a good headphone would sound like a good stereo speaker setup in a good room, the Harman target response was proposed by Sean Olive, Todd Welti and others at Harman7,8,9. This target response is based on the frequency response of a dummy head captured in a critical listening room10. This way, both the bass buildup and the ear resonances will be included in the target response, and a headphone tuned to this target will sound more well-balanced compared to the DF and FF targets, since it will have more bass. It should be noted that initially the Harman target response was developed for over/on-ear headphones, and future studies showed that the preferred target response for in-ears would require an additional 5dB of boost in the bass range11,12.

Our headphone target response is a hybrid; it follows the Harman target response in the bass and mid ranges, but its treble range is based on the Diffuse Field response of the HMS. This is because the Harman target response was derived using a dummy head different from the one used by us, and therefore its treble range, which includes the ear resonances, doesn't match the ear resonances of our dummy head. Our target response for in-ear headphones has an additional 5dB of boost in the bass range, compared to our target for over/on-ears.

2015 Harman Headphone Target Response
For over-ears and on-ears

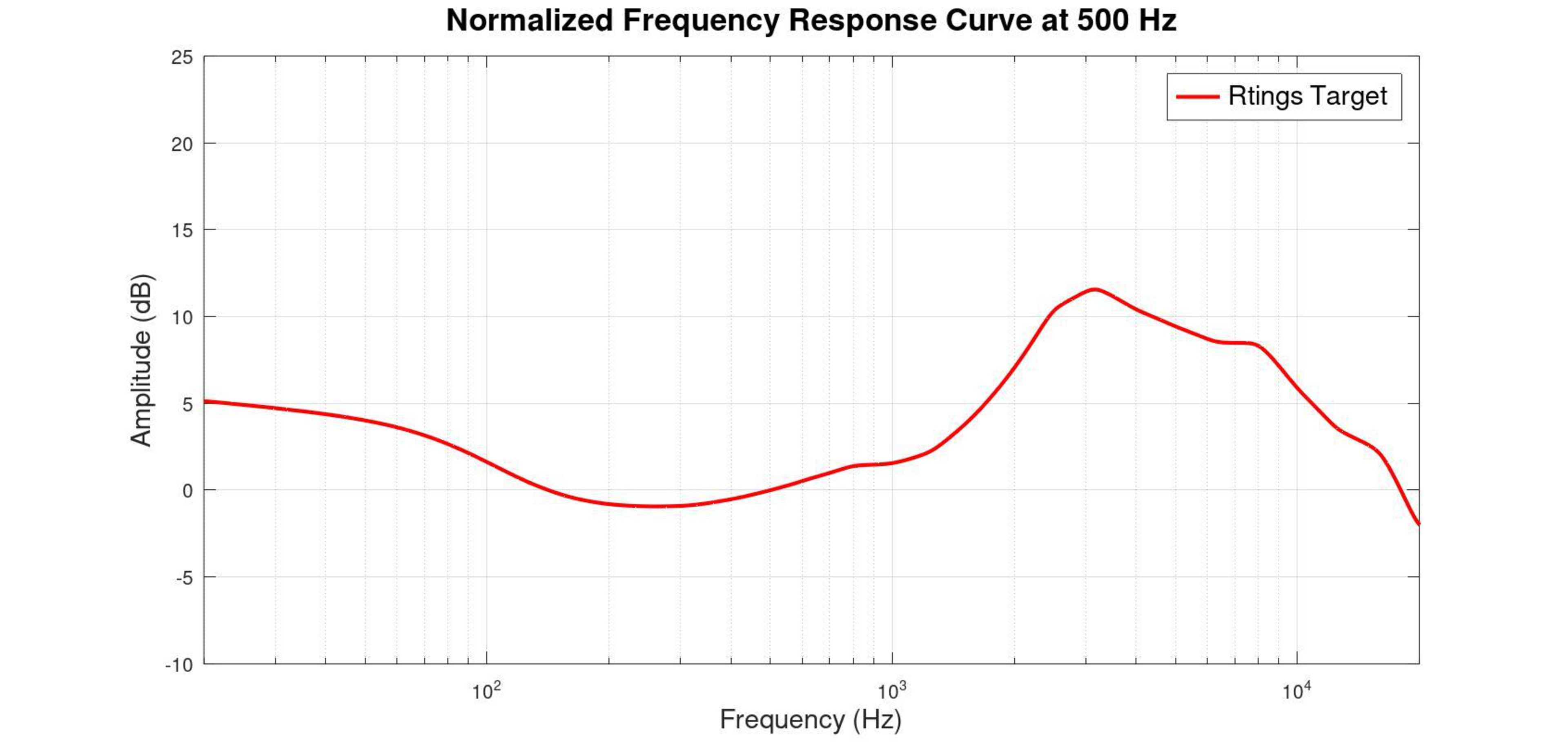

2017 RTINGS.com Headphone Target Response
Red line is the bass target for in-ears

Calculations

The smoothing used in our plots and calculations is 1/12 Octave, since this amount of smoothing removes the very fine fluctuations in the frequency response that are not perceptible by the human hearing, while preserving the details that are audible to humans. The next step in evaluating the frequency response of a headphone is "flattening" it by applying the target curve to it, and then, it is level-matched to 90dB between 20Hz and 20KHz. That is, the overall level of the headphone's frequency response is adjusted in such a way that its average value equals to 90dB. This way, the response will have the best chance at scoring well in our calculations.

Additional Information

For more information, check out our video on frequency response measurements, bass inconsistencies and target curves:



What's not included

  • Differentiating peaks from dips by giving them different weights
  • Differentiating wide-band deviations from narrow-band deviations by giving them different weights
  • Support for multiple compensation/target curves
  • Support for user generated compensation/target curves
  • Support for adjusting the bass and treble of the default compensation/target curve
Questions Found an error?

Let us know what is wrong in this question or in the answer.

Email:

Questions & Answers

3 ANSWERED QUESTIONS
5

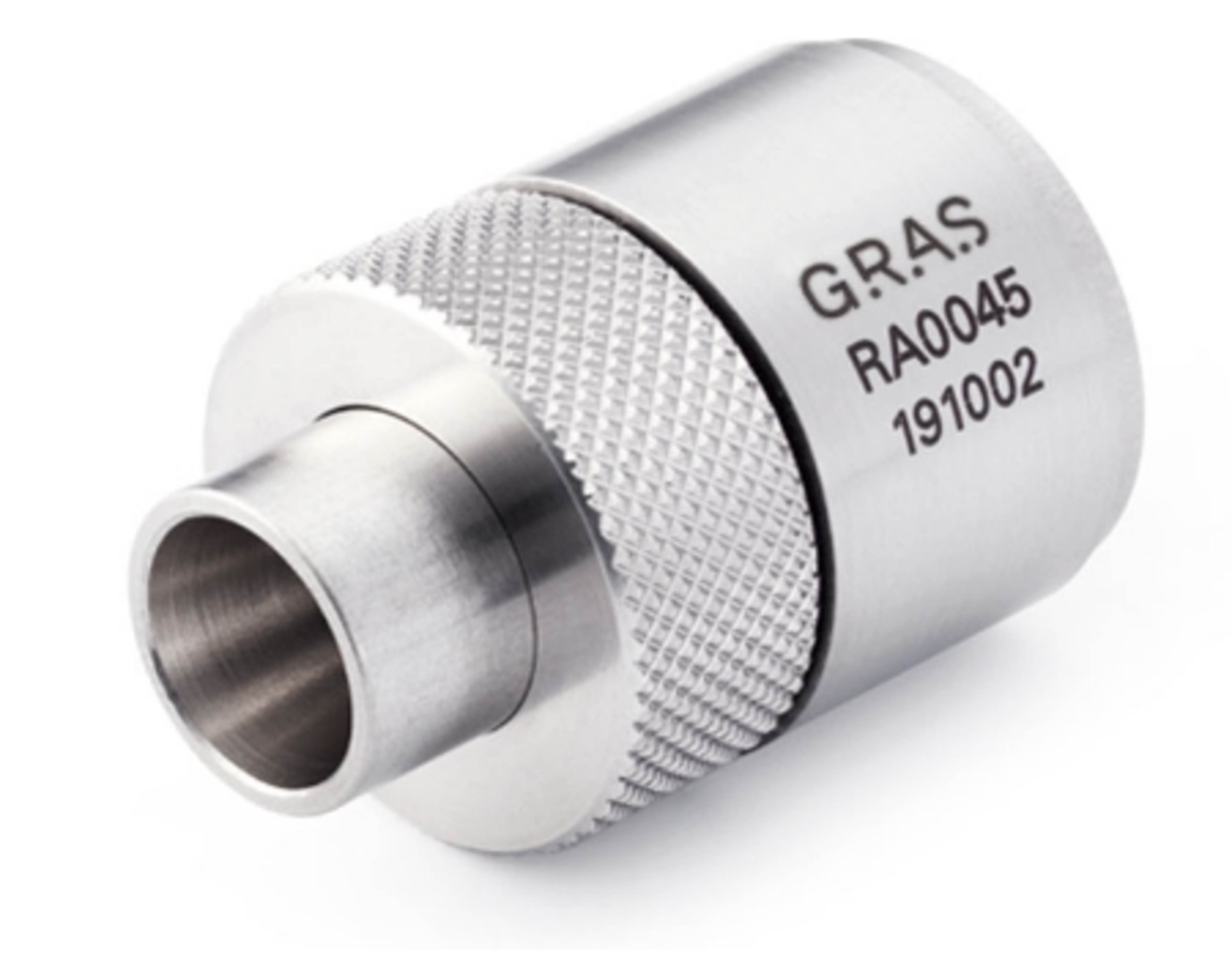

What type of microphone do you use to measure your headphones? If you are using a microphone that sits at the opening to the ear canal, it will not give you an accurate measurement in the 8-10khz range. The ear canal has a natural dip in this range. You need to measure at the eardrum position. I believe that might be the reason you are seeing an elevation in the response in many headphones in that region. You could acquire a DPA microphone, which is the industry standard, for this purpose.

We use a Head Acoustics HMS dummy head for our headphone measurements. If you are referring to our human measurements, we only use those results up to 450Hz, which due to the large wavelength will be the same at the ear canal or at the ear drum.

However, it is true that our dummy head doesn't give accurate results above 10KHz and we have taken that into account in our score calculations. We have plans for improving that even more in the near future.

1
It would be great if you could provide a tutorial on how to EQ any headphone to get them close to the Harman Target or to the headphone Target Curve that you use. There is a lot of info online on the Harman Target, but I haven’t found a really good explanation in how to EQ specific headphones using the frequency response graphs. I usually overimpose the Harman Target over the raw frequency response of a particular headphone and then try to correct various frequencies to get them close to Harman. I’m not sure if this is correct though.
That sounds about right, but there are other considerations to be made for EQ-ing, like the variance in the bass and treble response of a headphone on different users, as well as the effects of extreme EQ correction on sound quality. That's why we can't provide a universal correction curve for the headphones at the moment.

We will consider providing a tutorial for EQs, however there are different EQs with different capabilities and features, and not all users have access to the same EQ, which makes a tutorial less effective.

0
Have you guys tested the Sony MDR-EX1000? They are pretty old but they seem really good in terms of soundstage, balance and clarity. They have a vented design so they are not the best in terms of isolation but they do have a huge soundstage. I have been trying to EQ them to approximate the Hartman Target but they sound better with a flat EQ.
Not yet, and we don't have plans for measuring them in the near future. But since they are on our list of suggested products, we will monitor their popularity and will consider reviewing them at some points.
