Brooks Ghost 17 vs Ghost Max 3

Which Running Shoe Is Better?

Products

Brooks Ghost 17
Brooks Ghost Max 3

Tested using Methodology v0.10

Updated Feb 13, 2026 10:08 PM

SEE PRICE
Amazon.com

Tested using Methodology v0.8.2

Updated Jan 22, 2026 07:56 PM

SEE PRICE
Amazon.com

Our Verdict

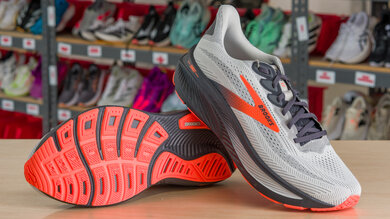

Brooks Ghost 17

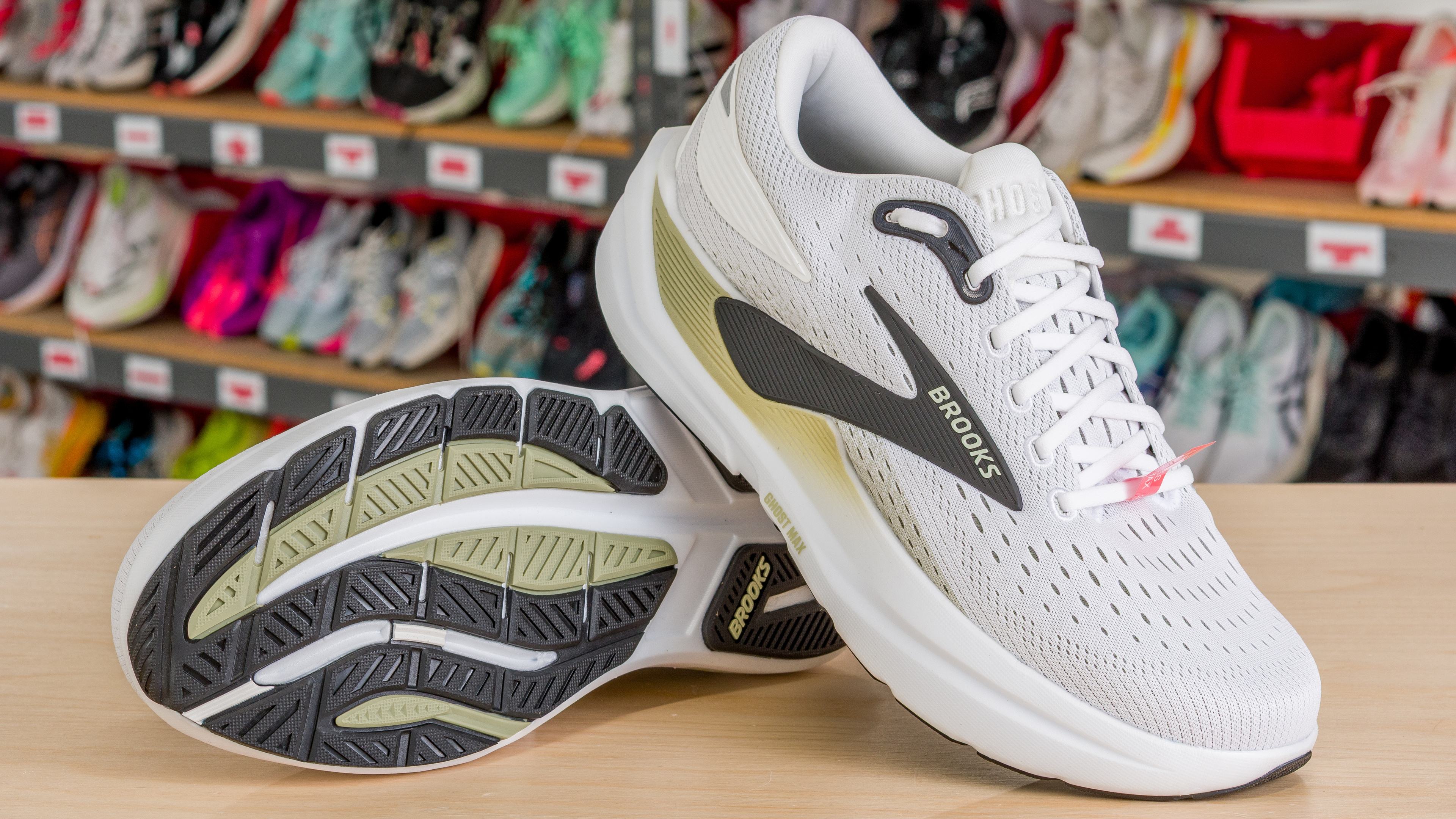

Brooks Ghost Max 3

The Brooks Ghost 17 and Brooks Ghost Max 3 share the same DNA, but they serve slightly different purposes within that comfort-focused lineup. The Ghost 17 is the classic daily workhorse, offering a comfortable, consistent ground feel and a stable platform that works well for a mix of running and walking, though it feels a bit on the heavier side. The Ghost Max 3 takes that formula and pushes it toward max cushioning, sitting higher with more protection underfoot and a more pronounced rolling feel. It's even heavier, but it delivers a more cushioned ride, making it the better pure running option overall. The trade-off is that it doesn't feel quite as stable or grounded as the Ghost 17.

0 

Variants

  • Ghost 17 (Acid Lime/Navy/White - (Men - US 9))
  • Ghost 17 (Apricot/Grey/Pink - (Women - US 7))
  • Ghost Max 3 (Apricot/Apricot/Super Pink - (Women - US 7))
  • Ghost Max 3 (Black/Black/Ebony - (Men - US 9))
Read more

Main Differences for
Marathon Racing

Threshold

0.10

Marathon Racing


4.3
5.5

Forefoot Stack Height


25.3 mm
31.9 mm

Heel Stack Height


36.2 mm
39.5 mm

Weight

5.1
4.3

Heel Energy Return


1.5
2.6

Full Comparison

Design

Weight

5.1
4.3

Right Shoe Weight Photo


Compare High-Res
Brooks Ghost 17 Right Shoe Weight Photo
Compare High-Res
Brooks Ghost Max 3 Right Shoe Weight Photo

Left Shoe Weight Photo


Compare High-Res
Brooks Ghost 17 Left Shoe Weight Photo
Compare High-Res
Brooks Ghost Max 3 Left Shoe Weight Photo

Weight


282.3 g (9.96 oz)
302.7 g (10.68 oz)
Show Text

Stack Heights


Stack Height Photo


Compare High-Res
Brooks Ghost 17 Stack Height Photo
Compare High-Res
Brooks Ghost Max 3 Stack Height Photo

Heel Stack Height


36.2 mm
39.5 mm

Forefoot Stack Height


25.3 mm
31.9 mm

Heel-To-Toe Drop


10.9 mm
7.6 mm

Advertised Heel-To-Toe Drop


10.0 mm
6.0 mm

External Shape


3D Model Full Shoe

Preview 3D
Brooks Ghost 17 3D Model Full Shoe
Preview 3D
Brooks Ghost Max 3 3D Model Full Shoe

Outsole Heel Width


91 mm (3.6")
94 mm (3.7")

Outsole Arch Width


75 mm (3.0")
84 mm (3.3")

Outsole Forefoot Width


112 mm (4.4")
114 mm (4.5")

Heel Width-To-Stack Ratio


2.51
2.37

Forefoot Width-To-Stack Ratio


4.43
3.57

Internal Shape


3D Model Internal

Preview 3D
Brooks Ghost 17 3D Model Internal
Preview 3D
Brooks Ghost Max 3 3D Model Internal

Internal Length


279 mm (11.0")
282 mm (11.1")

Internal Heel Width


67 mm (2.6")
93 mm (3.7")

Internal Forefoot Width


91 mm (3.6")
70 mm (2.8")

Wide Sizing Available


Yes
Yes

Forefoot Fit: Width


9.9

Forefoot Width Photo

Brooks Ghost 17 Forefoot Width Photo

Ball-Of-Foot TTS Deviation


0.1 mm (0.004")

Toe TTS Deviation


-0.8 mm (-0.032")

Forefoot Fit: Height


7.7

Forefoot Height Photo

Brooks Ghost 17 Forefoot Height Photo

Toe TTS Deviation


-2.7 mm (-0.108")

Arch Fit: Width


6.1

Arch Fit Photo

Brooks Ghost 17 Arch Fit Photo

Arch Width TTS Deviation


-5.7 mm (-0.224")

Length Fit


10

Toe Clearance Photo

Brooks Ghost 17 Toe Clearance Photo

Other Features

Other Features Photo


Compare High-Res
Brooks Ghost 17 Other Features Photo
Compare High-Res
Brooks Ghost Max 3 Other Features Photo

Tongue Gusset Type


Non-gusseted
Non-gusseted

Plate


None
None
Performance

Heel Energy Return


1.5
2.6

Heel Compression Video

Heel Energy Return

 Preview Graph
Brooks Ghost 17 Heel Energy Return
 Preview Graph
Brooks Ghost Max 3 Heel Energy Return

Heel Energy Return


66.5%
69.0%
Show Text

Forefoot Energy Return


2.5
2.3

Forefoot Compression Video

Forefoot Energy Return

 Preview Graph
Brooks Ghost 17 Forefoot Energy Return
 Preview Graph
Brooks Ghost Max 3 Forefoot Energy Return

Forefoot Energy Return


68.8%
68.5%
Show Text

Heel Cushioning


7.0
7.2

Heel Cushioning Picture


Compare High-Res
Brooks Ghost 17 Heel Cushioning Picture
Compare High-Res
Brooks Ghost Max 3 Heel Cushioning Picture

Heel Cushioning

 Preview Graph
Brooks Ghost 17 Heel Cushioning
 Preview Graph
Brooks Ghost Max 3 Heel Cushioning

Energy Absorbed At 550N


2.79 J
3.06 J

Energy Absorbed At 1100N


8.76 J
8.99 J

Energy Absorbed At 1900N


16.23 J
15.88 J
Show Text

Forefoot Cushioning


5.4
7.6

Forefoot Cushioning Picture


Compare High-Res
Brooks Ghost 17 Forefoot Cushioning Picture
Compare High-Res
Brooks Ghost Max 3 Forefoot Cushioning Picture

Forefoot Cushioning

 Preview Graph
Brooks Ghost 17 Forefoot Cushioning
 Preview Graph
Brooks Ghost Max 3 Forefoot Cushioning

Energy Absorbed At 800N


3.32 J
4.54 J

Energy Absorbed At 1300N


5.84 J
8.15 J

Energy Absorbed At 2050N


8.94 J
12.21 J
Show Text

Heel Firmness


5.4
5.6

Heel Firmness

 Preview Graph
Brooks Ghost 17 Heel Firmness
 Preview Graph
Brooks Ghost Max 3 Heel Firmness

Firmness At 550N


58.6 N/mm
55.4 N/mm

Firmness At 1100N


101.4 N/mm
107.0 N/mm

Firmness At 1900N


206.3 N/mm
226.9 N/mm
Show Text

Forefoot Firmness


8.9
7.7

Forefoot Firmness

 Preview Graph
Brooks Ghost 17 Forefoot Firmness
 Preview Graph
Brooks Ghost Max 3 Forefoot Firmness

Firmness At 800N


147.9 N/mm
101.0 N/mm

Firmness At 1300N


280.5 N/mm
204.9 N/mm

Firmness At 2050N


472.4 N/mm
375.8 N/mm
Show Text

Forefoot Long Run Cushioning


4.9

Forefoot Long Run Cushioning

 Preview Graph
Brooks Ghost 17 Forefoot Long Run Cushioning

Energy Absorbed At 10km


5.41 J

Energy Absorbed At 20km


5.28 J

Energy Absorbed At 30km


5.23 J

Energy Absorbed At 40km


5.21 J

Brooks Ghost 17

Brooks Ghost Max 3
