Canon PowerShot G5 X Mark II  Camera Review

Reviewed May 18, 2021 at 10:20am
Tested using Methodology v0.12.1
Canon PowerShot G5 X Mark II
7.9
Travel Photography
7.4
Landscape Photography
7.7
Sport & Wildlife Photography
7.0
Raw Photo Performance
6.7
Vlogging
5.7
Studio Video
5.0
Action Video
 0

The Canon PowerShot G5 X Mark II is a compact zoom camera. It's comfortable to hold, highly portable, and delivers very good image quality out-of-the-box. It features a fairly useful pop-up viewfinder as well as an ND filter built into the lens, which gives you a bit of added flexibility in your choice of shutter speed or aperture when shooting in bright conditions, though we don't currently test this feature. However, its autofocus performance isn't particularly impressive in photography or video, and video quality in FHD and 4k is middling overall. Depending on your choice of settings and usage patterns, it also has short battery life.

Our Verdict

7.9
Travel Photography

The Canon PowerShot G5 X Mark II is good for travel photography. It offers very good image quality and has a fairly wide shutter speed range that lets you capture both quick moments as well as long-exposure shots. It's also comfortable to hold, and its compact, lightweight construction makes it very easy to carry around for extended periods. While we don't test this feature, its lens' built-in ND filter gives you a bit of extra leeway in adjusting aperture or shutter speed in bright environments. Its pop-up viewfinder could also make it easier to line up your shots. Depending on your usage patterns and choice of settings, its battery life is short, which means it might be best to carry around a second battery. Its autofocus system also has a hard time tracking faces. The camera can also overheat in high-heat environments.

Pros
  • Compact size.
  • Comfortable to use.
  • Relatively good image quality.
Cons
  • Poor battery life.
  • Mediocre autofocus performance in photography and video.
7.4
Landscape Photography

The Canon PowerShot G5 X Mark II is decent for landscape photography. It delivers good image quality out-of-the-box, with a relatively wide dynamic range and adequate noise handling capability for its class. You can use the pop-up viewfinder to line up your shots more easily while the camera is mounted on a tripod, rather than framing your shots with the screen. Its lens' built-in ND filter allows you to use a wider aperture or a slower shutter speed in brightly lit environments. The camera's compact size and comfortable-to-use design also make it easy to bring with you to remote shooting locations, and the screen should be bright enough to see under direct sunlight. Unfortunately, the camera isn't rated as being weather-sealed.

Pros
  • Compact size.
  • Comfortable to use.
  • Relatively good image quality.
  • Tilting and flipping touchscreen is bright and sharp.
Cons
  • Poor battery life.
7.7
Sport & Wildlife Photography

The Canon PowerShot G5 X Mark II is decent for sports and wildlife photography. Its JPEG burst mode and decently rapid max shutter speed should be sufficient for capturing clear stills of fast-moving subjects. If you're comfortable with working with RAW images, you can use its separate RAW Burst feature to capture RAW images at up to 30fps. Out-of-the-box image quality is very good, and the camera is comfortable to hold. Unfortunately, its autofocus performance in photography is mediocre, and the max focal length of its built-in lens might not be enough to capture clear images of far-away subjects, like athletes in a stadium. It also lacks a silent continuous shooting mode, making it a little harder to capture photos of fast-moving, easily spooked wildlife.

Pros
  • Relatively good image quality.
  • Fast continuous shooting speed.
Cons
  • Poor battery life.
  • Mediocre autofocus performance in photography and video.
7.0
Raw Photo Performance

The Canon PowerShot G5 X Mark II captures decent RAW image quality. While it isn't the best option for low light, with mediocre noise handling, it does capture images with a good level of fine detail, thanks to its relatively high-resolution sensor. It also has decent dynamic range, although you'll still lose out on highlight or shadow detail in very high-contrast scenes.

Pros
  • Relatively high-resolution sensor.
Cons
  • Mediocre low light noise handling.
6.7
Vlogging

The Canon PowerShot G5 X Mark II is good for vlogging. Its tilting, flipping screen allows you to see yourself when the camera is pointed at you, and you can tap on it to quickly adjust settings on the fly. The camera's lightweight design makes it comfortable to hold for extended periods. It also does an impressive job of smoothing out camera shake in 4k and FHD, though its digital stabilization feature does incur a somewhat noticeable 1.3x crop in its most powerful mode. Unfortunately, it can overheat easily when recording video, leading to frequent interruptions in your recording sessions. Video quality is also mediocre in 4k and poor in FHD, while the camera's autofocus system struggles to maintain focus on subjects' faces.

Pros
  • Compact size.
  • Great video stabilization performance.
  • Intuitive menu system.
  • Tilting and flipping touchscreen is bright and sharp.
Cons
  • Poor battery life.
  • Mediocre video quality in 4k and bad video quality in FHD.
  • Severe overheating issues.
5.7
Studio Video

The Canon PowerShot G5 X Mark II is a mediocre option for studio video. Video in 4k is somewhat grainy, while footage recorded in FHD is soft and noisy, particularly in dark environments. Its autofocus system can also struggle to maintain focus on moving subjects, and the camera overheats easily during extended recording sessions. It lacks a microphone jack to bolster the quality of the audio in your recording too. Still, the camera's menu system is easy to use, and you can easily pair your phone with the camera to control it remotely.

Pros
  • Comfortable to use.
  • Intuitive menu system.
Cons
  • Mediocre video quality in 4k and bad video quality in FHD.
  • Mediocre autofocus performance in photography and video.
  • Severe overheating issues.
5.0
Action Video

The Canon PowerShot G5 X Mark II isn't designed for action video. Despite being lightweight and compact, it isn't meant to be attached to a chest or helmet rig. It also lacks any kind of waterproofing or water resistance. It's limited to 30 fps in 4k, but it does have a 'High Frame Rate' mode in FHD that captures slow-motion footage at 120 fps. It also does a great job of smoothing out camera shake in either resolution.

Pros
  • Compact size.
  • Great video stabilization performance.
Cons
  • Mediocre video quality in 4k and bad video quality in FHD.
  • Limited 4k frame rate options.
  • Not water-resistant.
  • 7.9
    Travel Photography
  • 7.4
    Landscape Photography
  • 7.7
    Sport & Wildlife Photography
  • 7.0
    Raw Photo Performance
  • 6.7
    Vlogging
  • 5.7
    Studio Video
  • 5.0
    Action Video
  • Changelog

    1.  Updated Jan 29, 2024: Added text to the 'Raw Photo Performance' verdict box.
    2.  Updated Jan 29, 2024: Converted to Test Bench 0.12.1.
    3.  Updated Apr 24, 2023: Converted to Test Bench 0.12.
    4.  Updated Apr 12, 2023: Converted to Test Bench 0.11.

    Check Price

    Black PowerShot G5 X Mark II
    SEE PRICE
    Amazon.com
    Black PowerShot G5 X Mark II
    SEE PRICE
    Walmart.com
    Black PowerShot G5 X Mark II
    BestBuy.com
    Black PowerShot G5 X Mark II
    B&H

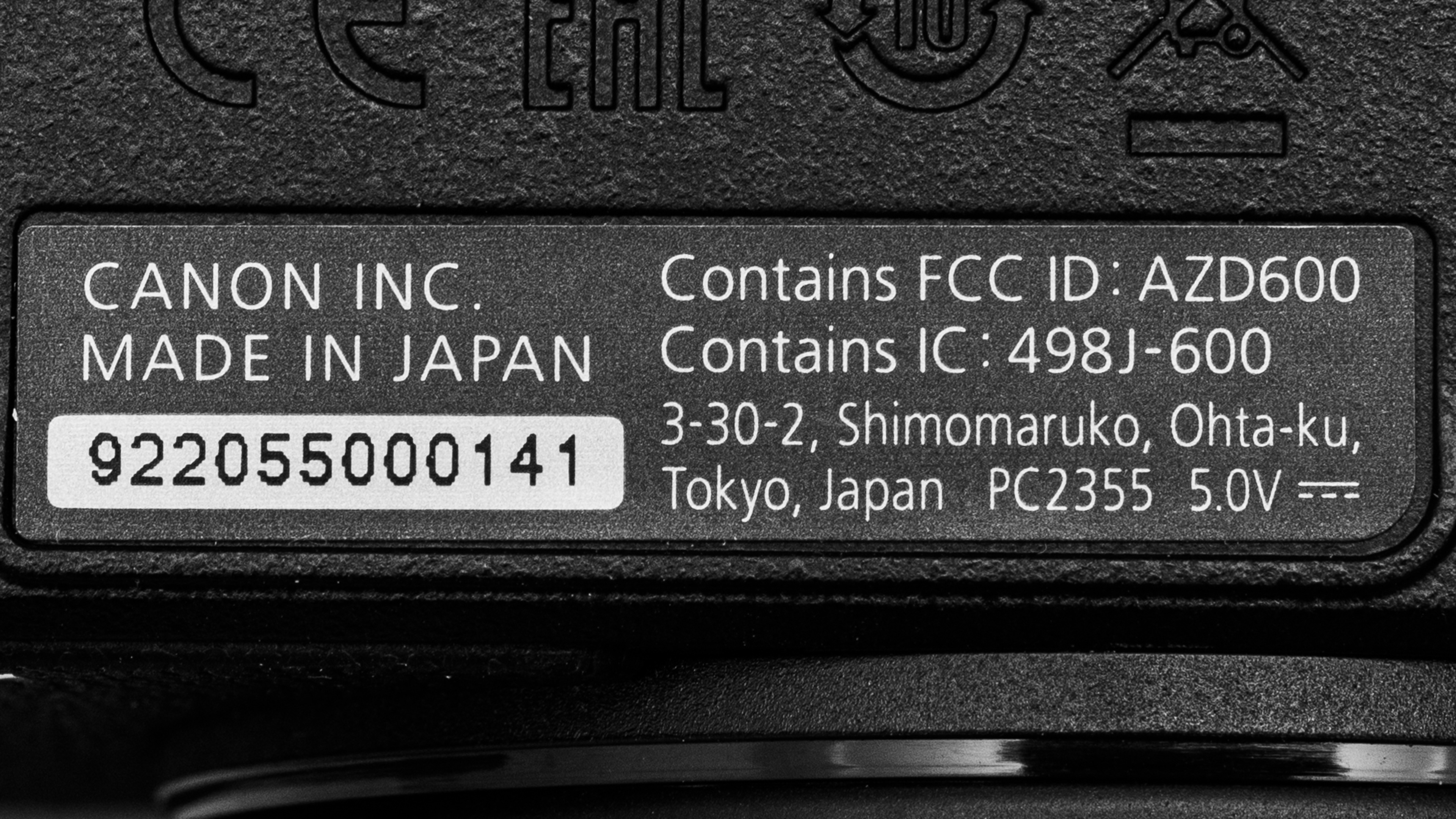

    Differences Between Sizes And Variants

    The Canon PowerShot G5 X Mark II only comes in one color variant: 'Black', and you can see its label here.

    Let us know in the discussions if you come across another variant, and we'll update our review.

    Test Results

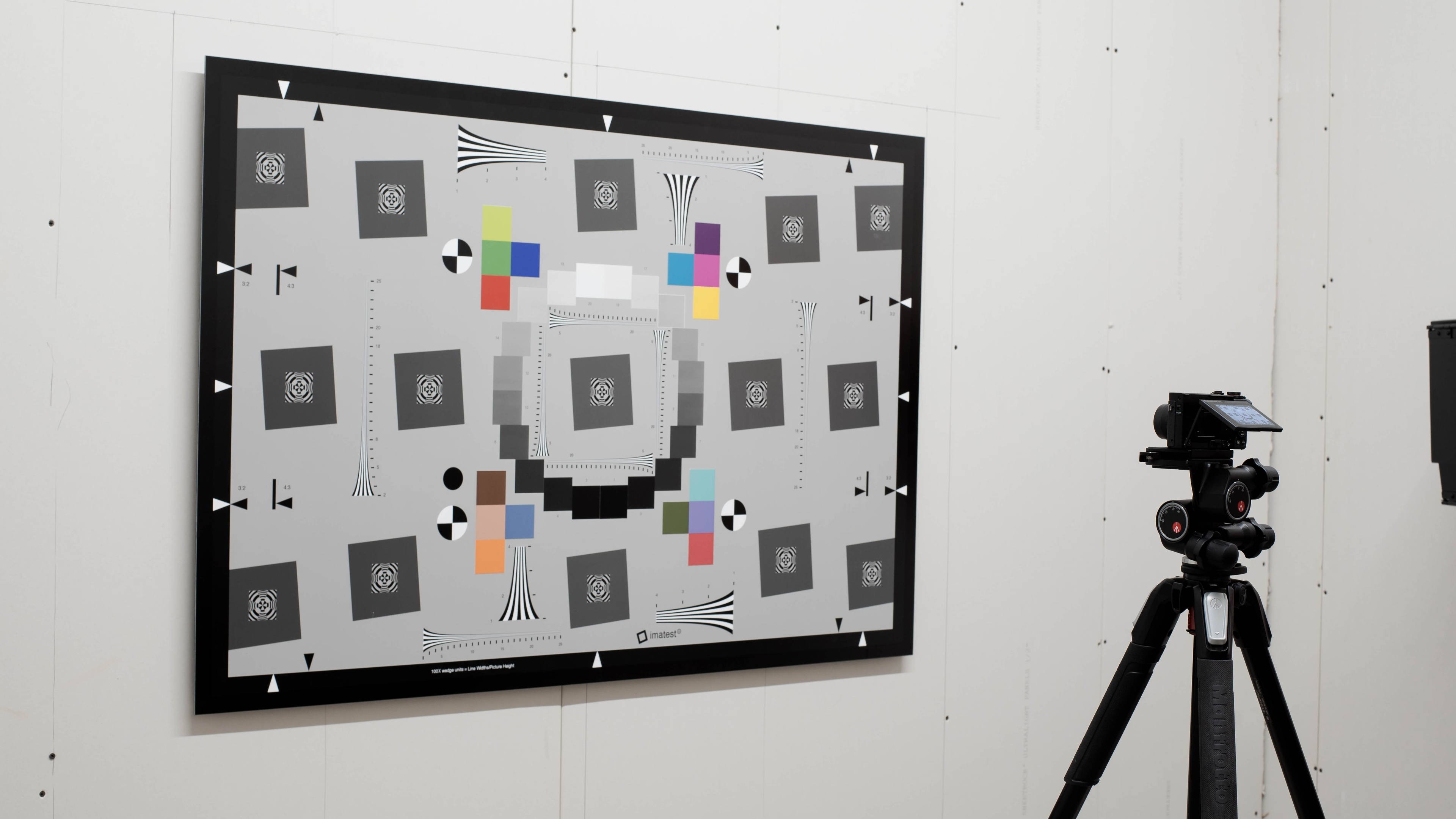

    perceptual testing image
    Sort:
    RATINGS
    Category:
    All
    Design
    8.8
    Portability
    Height
    2.5" (6.4 cm)
    Width
    4.3" (11.0 cm)
    Depth
    1.8" (4.6 cm)
    Volume
    19.8 in³ (323.8 cm³)
    Weight
    0.74 lbs (0.34 kg)
    7.0
    Build Quality

    • Body is made of plastic and metal
    • Main body is covered in rubberized plastic, though the top plate is made of hard plastic
    • Flash mechanism feels somewhat flimsy
    • Screen mechanism feels sturdy
    • Command dials offer good physical feedback, while buttons feel good when pressed
    • Lens dial feels clicky and responsive
    • Input/output compartment protected by a rubberized plastic flap

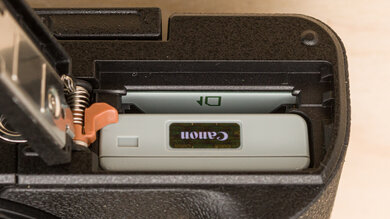

    • Battery and SD card slot covered by a locking hinged door

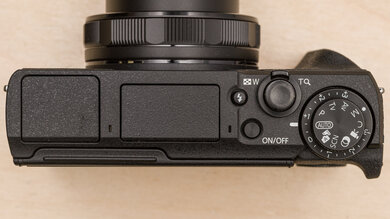

    Body
    Body Type
    Point and Shoot
    Water Resistance
    No
    Mirrorless
    Yes
    Rugged
    No
    Hot Shoe
    No
    Customizable Button
    Yes
    Command Dial
    2
    Tripod Mount
    Yes
    Lens Mount
    No Lens Mount
    Built-In Flash
    Yes
    Fastest Shutter Speed
    1/2,000 s
    In The Box

    • Canon PowerShot G5 X Mark II camera
    • Wrist strap
    • 1x Canon NB-13L battery
    • Battery charger
    • Getting Started guide
    8.0

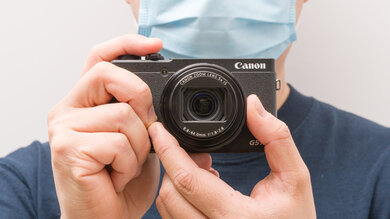

    Ergonomics & Comfort
    Hand Grip: Small Hand
    Yes
    Hand Grip: Medium Hand
    Yes
    Hand Grip: Large Hand
    No
    Hand Grip: Extra-Large Hand
    No

    • Touchscreen and quick menu make it easy to make all changes directly on the screen
    • Textured hand grip is fairly large by the standards of other compact cameras, making it more comfortable to use than alternatives like the Canon PowerShot G7 X Mark III
    • Can be used one-handed with little difficulty
    • Camera has a pop-up electronic viewfinder, which needs to be pulled out after being engaged, that is small and rather uncomfortable to use, but is still a useful addition
    • Lens ring can be used to change the aperture by default, but this can be remapped to adjust shutter speed
    • Small textured thumb rest at the back of the camera also helps to provide a secure hold
    • Memory card can't be changed when the camera is mounted on a tripod

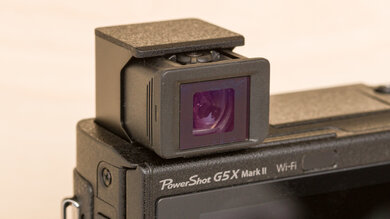

    Viewfinder
    Viewfinder Type
    Electronic
    Advertised Coverage
    N/A
    Advertised Resolution
    2.36 million dots
    Advertised Magnification
    N/A
    8.1

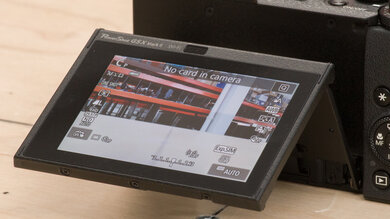

    Screen
    Screen Articulation Type
    Tilt And Flip
    Screen Max Brightness
    640 cd/m²
    Advertised Resolution
    1.04 million dots
    Size
    3.0" (7.6 cm)
    Touchscreen
    Yes
    9.0

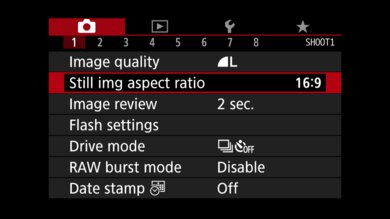

    Menu System
    Guide Mode
    Yes
    App Name
    Canon Camera Connect

    • Intuitive, simple menu system can be navigated with the physical controls or by tapping on the touchscreen
    • Menu system changes depending on the current mode
    • Quick menu makes it easy to access frequently-used settings
    6.6

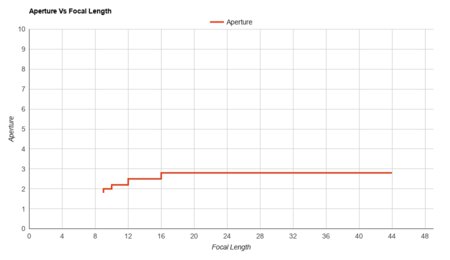

    Built-In Lens
    See details on graph tool
    Maximum Aperture
    1.8 - 2.8
    Max Aperture (Full-Frame Equivalent)
    f/4.9
    Minimum Focal Length
    8.8 mm
    Maximum Focal Length
    44 mm
    Max Focal Length (Full-Frame Equivalent)
    119 mm
    Optical Image Stabilization
    Yes
    Luminance
    76.8%
    Light Falloff
    46.5%

    Note: This camera's lens features a built-in ND filter that effectively reduces the amount of light captured by the camera. This can be helpful if you wish to shoot at a large aperture or a slow shutter speed in a brightly lit environment without over-exposing your image. This filter is engaged by default but can be disabled through the menu system. We didn't test the performance of the camera with this filter engaged.

    Sensor
    Sensor Type
    Stacked CMOS
    Advertised Effective Pixels
    20.1 MP
    Sensor Size
    1-inch
    Processor
    DIGIC 8
    Extended ISO Minimum
    N/A
    Native ISO Minimum (Base ISO)
    125
    Native ISO Maximum
    12,800
    Tested Firmware
    Ver. 1.1.0
    4.7
    Battery
    Battery Type
    Canon NB-13L
    USB Charging
    Yes
    Power Delivery While Recording
    No
    Advertised Battery Life In Photo
    230 photos
    Tested Battery Life In Video
    60 min

    Note: Like the Canon PowerShot G7 X Mark III, this camera can frequently overheat and interrupt in-progress shooting sessions. Also, the camera doesn't include the PD-E1 power adapter that allows it to be charged over USB-C while the camera is in use.

    Photo General
    7.4
    Photo Shooting Speed
    Low Speed Continuous
    4 fps
    High Speed Continuous
    16 fps
    Silent Shooting Continuous
    N/A
    Raw Buffer Size
    48 Photos
    JPEG Buffer Size
    148 Photos
    Buffer Empty Time
    15 s

    Note: This camera also features a separate RAW Burst feature, which enables the camera to capture RAW images at up to 30fps. Unlike the camera's standard burst mode, which uses the mechanical shutter, this mode relies on the camera's electronic shutter, which can't be enabled manually otherwise.

    0.0
    Photo AF-C Tracking
    Autofocus Tracking ShotsN/A
    Perfect Focus Hit Rate
    N/A
    Usable Focus Hit Rate
    N/A
    10
    Photo AF-C Center Point
    Autofocus Center Point Shots
    center-point-run-01-01
    Run 01
    AF-C Center Point 01
    Perfect Focus Hit Rate
    100%
    Usable Focus Hit Rate
    100%
    8.8
    Photo Image Stabilization
    Minimum Shutter Speed Achieved
    1/6 s
    In-Body Image Stabilization
    No
    Photo Image Quality
    7.2
    Photo RAW Dynamic Range
    Dynamic Range At Base ISO
    9.5 f-stops
    Dynamic Range At 1/500s Exposure Time
    7.5 f-stops
    Dynamic Range At 1/2000s Exposure Time
    6.3 f-stops
    Dynamic Range At 1/4000s Exposure Time
    5.4 f-stops
    7.6
    Photo RAW Sharpness
    See details on graph tool
    Vertical Edge MTF50 At Base ISO
    1,663 LW/PH
    Horizontal Edge MTF50 At Base ISO
    1,711 LW/PH
    6.3
    Photo RAW Noise
    See details on graph tool
    SNR 18% At 1/8 Exposure Time (125 ms)
    32.4dB
    SNR 18% At 1/30 Exposure Time (33 ms)
    28.2 dB
    SNR 18% At 1/125 Exposure Time (8 ms)
    23.3 dB
    SNR 18% At 1/500 Exposure Time (2 ms)
    17.9dB
    Pictures Sample Gallery
    The Skate Park Picture
    JPEG Skate Park PictureDownload
    RAW Skate Park PictureDownload
    The Polish Church Picture
    JPEG Polish Church PictureDownload
    RAW Polish Church PictureDownload
    The Studio Picture
    JPEG Studio PictureDownload
    RAW Studio PictureDownload
    The Stairway Picture
    JPEG Stairway PictureDownload
    RAW Stairway PictureDownload
    Video General
    Video Features
    Full HD Video
    Yes
    4k Video
    Yes
    6k Video
    No
    Clean HDMI Output
    Yes
    Advertised Max Chroma Sampling Over HDMI
    Not Advertised
    Advertised Max Bit Depth Over HDMI
    N/A
    Log Picture Profile
    No
    Recording Light
    No
    Audio
    Audio Test Sample
    Audio Recording
    Stereo
    Microphone Level Display
    No
    Video File Format And Compression
    MP4 H.264 / MPEG-4 AVC
    Yes
    MP4 H.265 / HEVC
    No
    MOV H.264 / MPEG-4 AVC
    No
    MOV H.265 / HEVC
    No
    AVCHD H.264 / MPEG-4 AVC
    No
    All-I Compression
    No
    4k Video
    8.5
    4k Video Frame Rate
    240 fps In 4k
    No
    120 fps In 4k
    No
    60 fps In 4k
    No
    30 fps In 4k
    Yes
    24 fps In 4k
    Yes
    4k Crop At Max Available fps
    1 x
    5.3
    4k Video Internal Recording
    Bitrate Maximum In 4k
    123 Mbps
    Bitrate Minimum In 4k
    122 Mbps
    Chroma Sampling In 4k
    4:2:0
    Bit Depth In 4k
    8 Bit
    Record Time Limit In 4k
    10 min
    Overheat Recording Interruptions in 4k
    6
    6.3
    4k Video Autofocus Performance
    Object Tracking In 4k
    8.3
    Face Tracking In 4k
    4.7
    Face Detection In 4k
    Yes
    Eye Detection In 4k
    No
    6.8
    4k Video Quality
    Low Light Capability In 4k
    6.5
    Test Scene Extract In 4k
    7.0
    5.7
    4k Video Rolling Shutter Effect
    4k Rolling Shutter
    7.0°
    Full HD Video
    9.5
    FHD Video Frame Rate
    240 fps In FHD
    No
    120 fps In FHD
    Yes
    60 fps In FHD
    Yes
    30 fps In FHD
    Yes
    24 fps In FHD
    Yes
    FHD Crop At Max Available fps
    1 x
    7.6
    FHD Video Internal Recording
    Bitrate Maximum In FHD
    60 Mbps
    Bitrate Minimum In FHD
    30 Mbps
    Chroma Sampling In FHD
    4:2:0
    Bit Depth In FHD
    8 Bit
    Record Time Limit in FHD
    30 min
    5.6
    FHD Video Autofocus Performance
    Object Tracking In FHD
    7.0
    Face Tracking In FHD
    4.5
    Face Detection In FHD
    Yes
    Eye Detection In FHD
    No
    5.0
    FHD Video Quality
    Low Light Capability In FHD
    5.0
    Test Scene Extract In FHD
    5.0
    8.0
    FHD Video Rolling Shutter Effect
    FHD Rolling Shutter
    2.3°
    Storage And Connectivity
    Storage
    Card 1 Slot
    SD Card UHS-I
    Card 2 Slot
    No 2nd Card Slot
    5.5

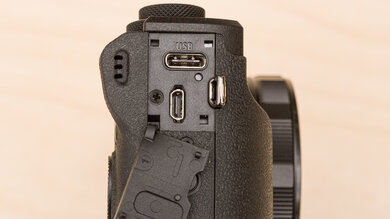

    Inputs / Outputs
    USB
    USB-C
    HDMI
    Micro (Type D)
    Headphones
    No
    Microphone
    No Microphone input
    Wi-Fi
    Yes
    Bluetooth
    No
