We used the following calibration settings to test the Epson EpiqVision Flex CO-FH02. Keep in mind that results can vary slightly between individual units, firmware versions, and picture modes, so you may need small tweaks if your unit looks a bit different.
These settings are meant to provide a solid starting point for accurate SDR playback in a typical living room. They aren't meant to be copied 1:1, and your best results will depend on your screen size, throw distance, room brightness, and wall/screen color.
SDR Picture Settings

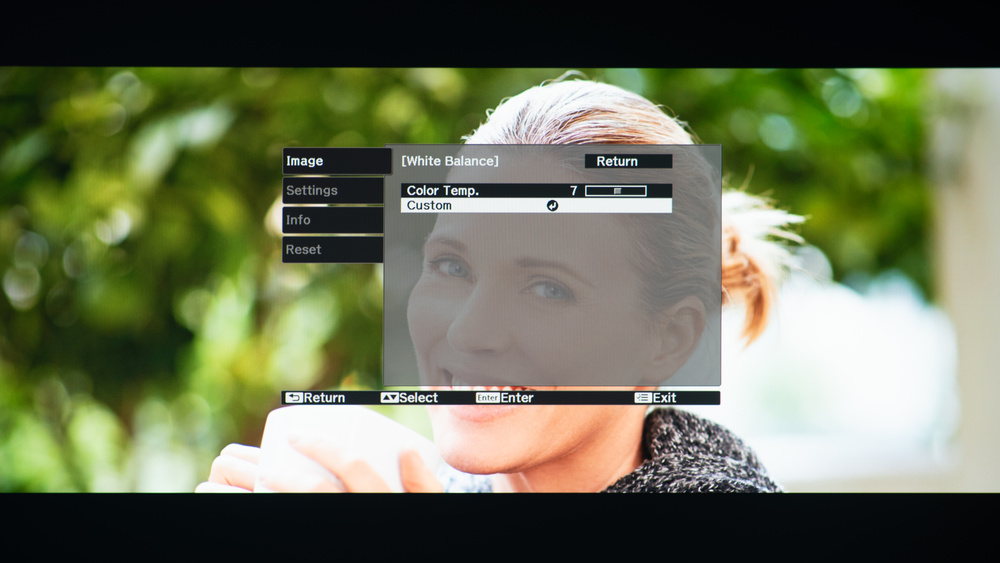

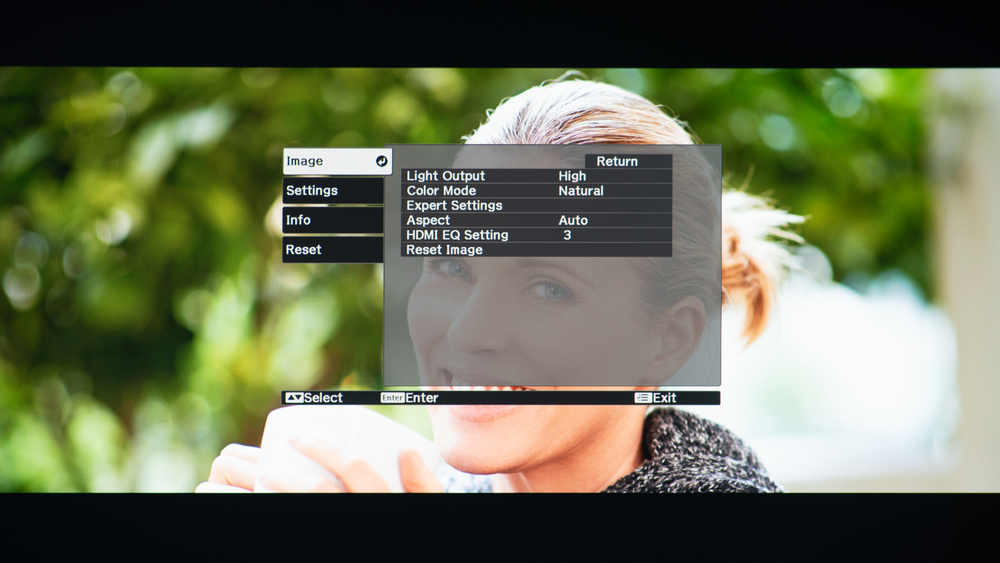

For SDR content, you can choose a few different preset picture modes. We used the Natural picture mode because it allows for the most customization, including adjusting the projector's white balance (see below). We also set the Color Temp setting to '7.' All other settings were either left to default, disabled, or left off.
- Picture Mode: Natural
- Color Temp Setting: 7
Firmware

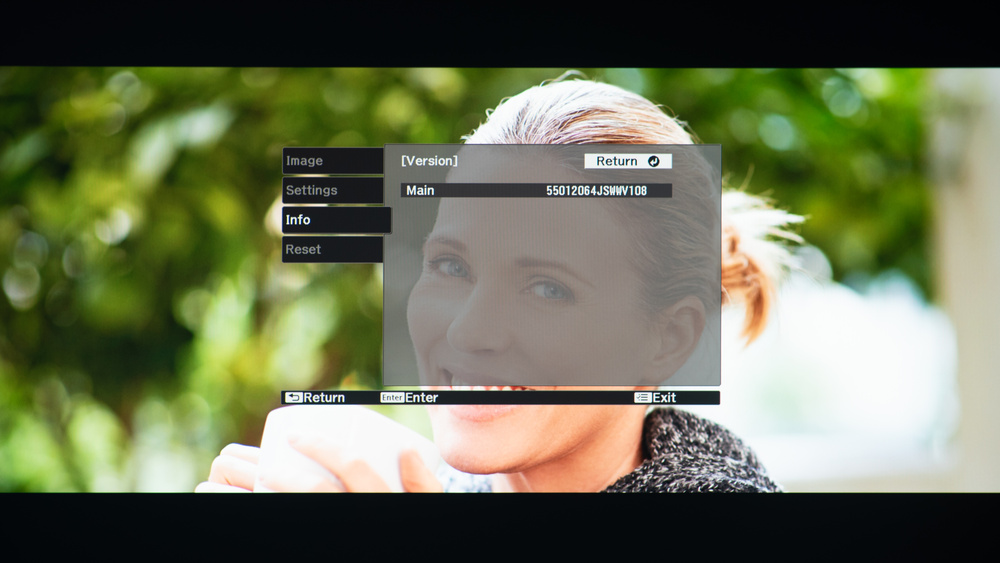

The unit we bought and tested was calibrated on software version 55012064JSWWV108.
Other Settings
For information on any other settings or features that fall outside of the scope of our testing, please refer to Epson's support page.

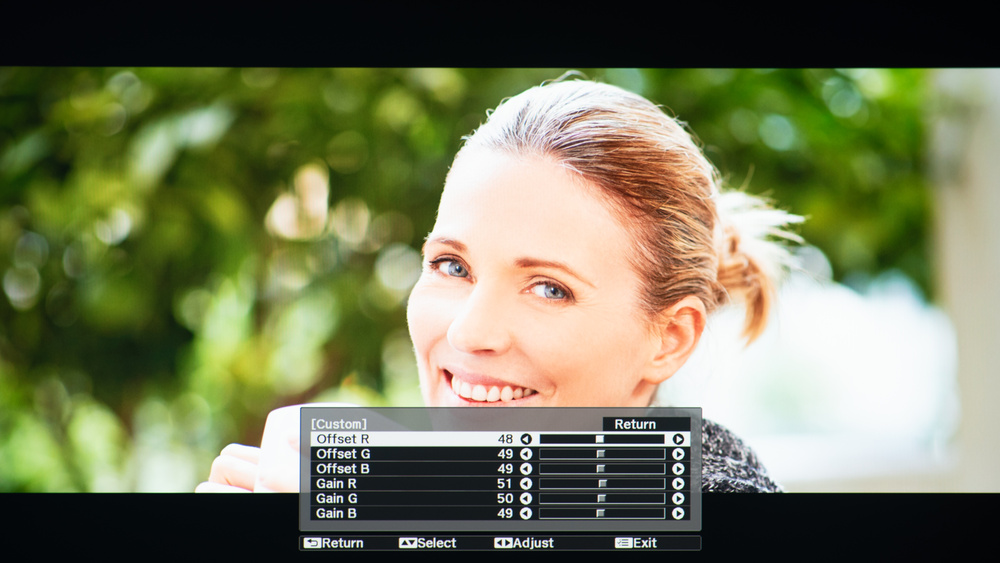

White Balance Settings
The following are the results of our unit's white balance and colorspace calibration. They're provided for reference and shouldn't be copied, as the calibration values vary per individual unit due to manufacturing tolerances. If you want to try them, you'll need to enter all the values shown, as all of them are active at the same time. If you end up with worse picture quality, simply reset them to the default values.
