We used the following calibration settings to test the JMGO N3 Ultimate. Keep in mind that results can vary slightly between individual units, firmware versions, and picture modes, so you may need small tweaks if your unit looks a bit different.
These settings are meant to provide a solid starting point for accurate SDR playback in a typical living room. They aren't meant to be copied 1:1, and your best results will depend on your screen size, throw distance, room brightness, and wall/screen color.
SDR Picture Settings

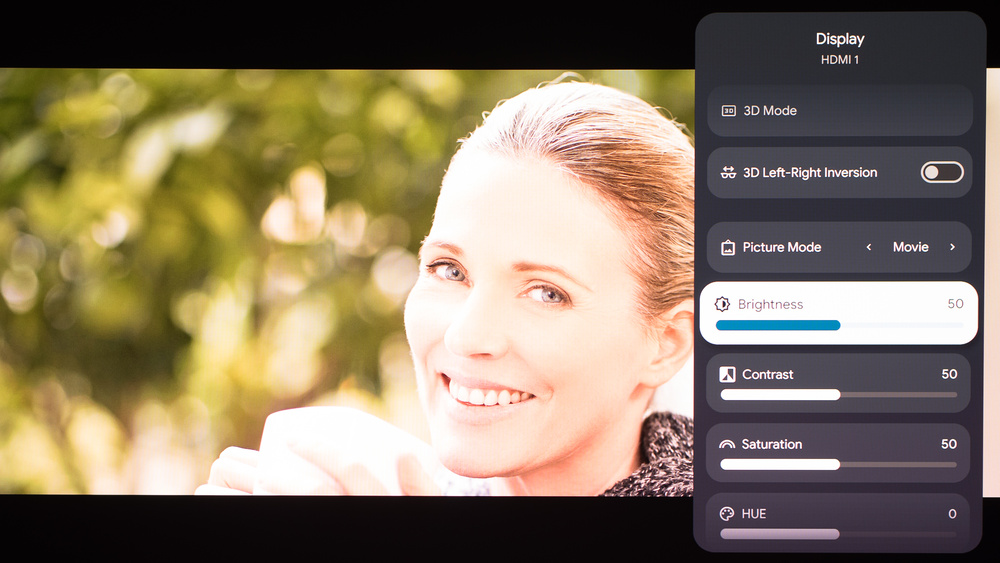

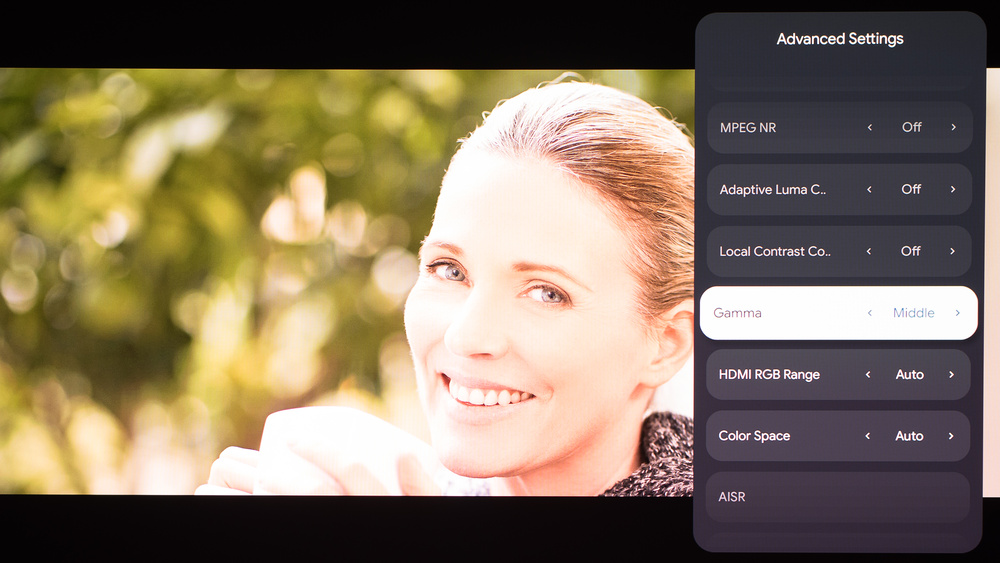

For SDR content, you can choose a few different preset picture modes. We used the Movie picture mode because it allows for the most customization, including adjusting the projector's white balance (see below). The Gamma is set to 'Middle,' and we also set the Color Temp setting to 'Warm.' All other settings were either left to default, disabled, or left off.
- Picture Mode: Movie
- Color Temp Setting: Warm
- Gamma Setting: Middle
Gaming Settings

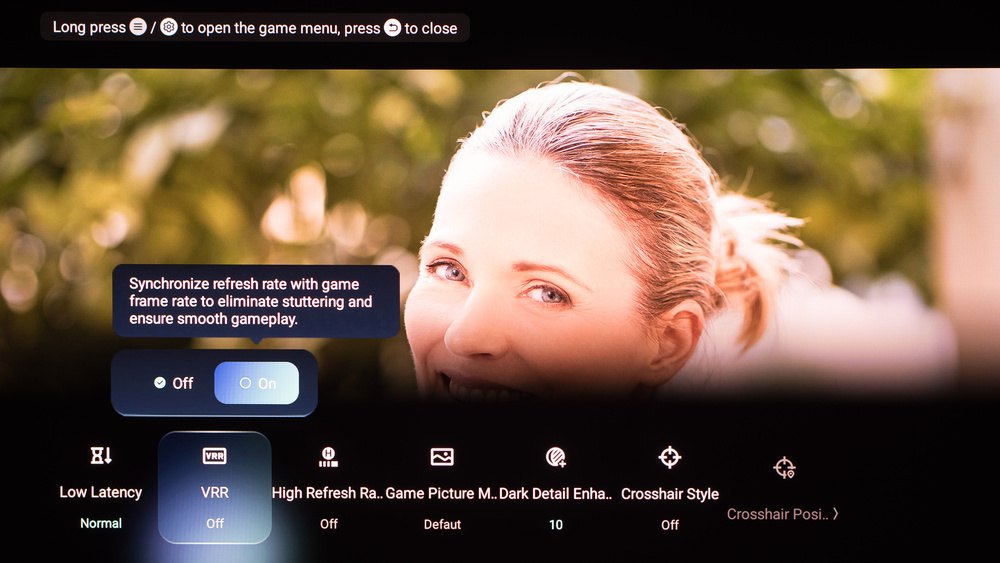

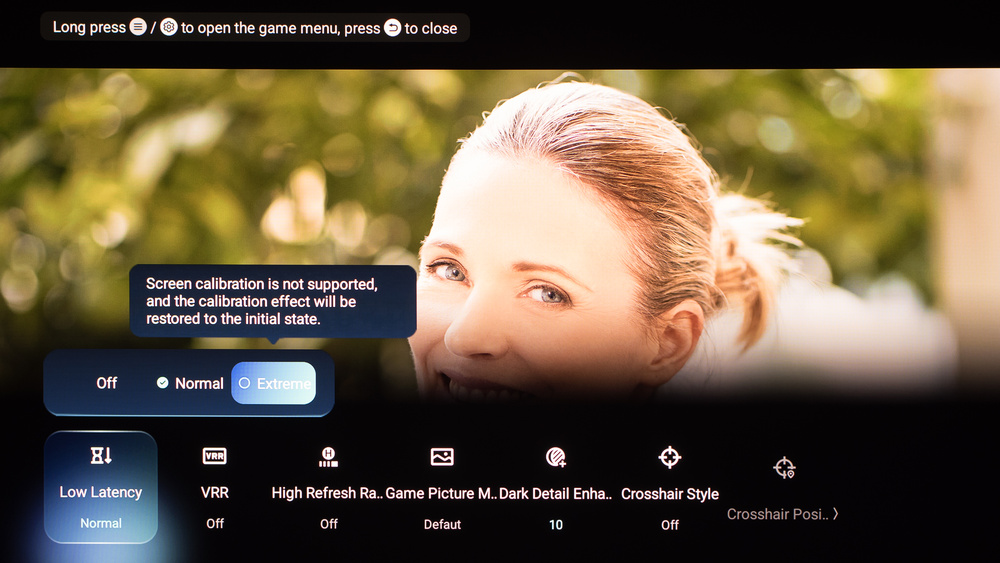

From the base SDR settings, very few changes are required for the best gaming experience. For the best input lag, it's best to ensure Low Latency is set to 'Extreme' or 'Normal'; use 'Extreme' for the lowest input lag for 4k @ 60Hz, otherwise 'Normal' performs just as well at 1080p. If you want to game at high refresh rates at 1080p, make sure to set High Refresh Rate to 'Auto' or 'On'; note that enabling this setting forces 1080p, so don't enable it if you wish to game at 4k.
- Picture Mode: Movie.
- Low Latency: 'Extreme' for 4k gaming, 'Normal' otherwise.
- High Refresh Rate: 'Auto' or 'On' for high refresh rate 1080p gaming, 'Off' for 4k.
Firmware

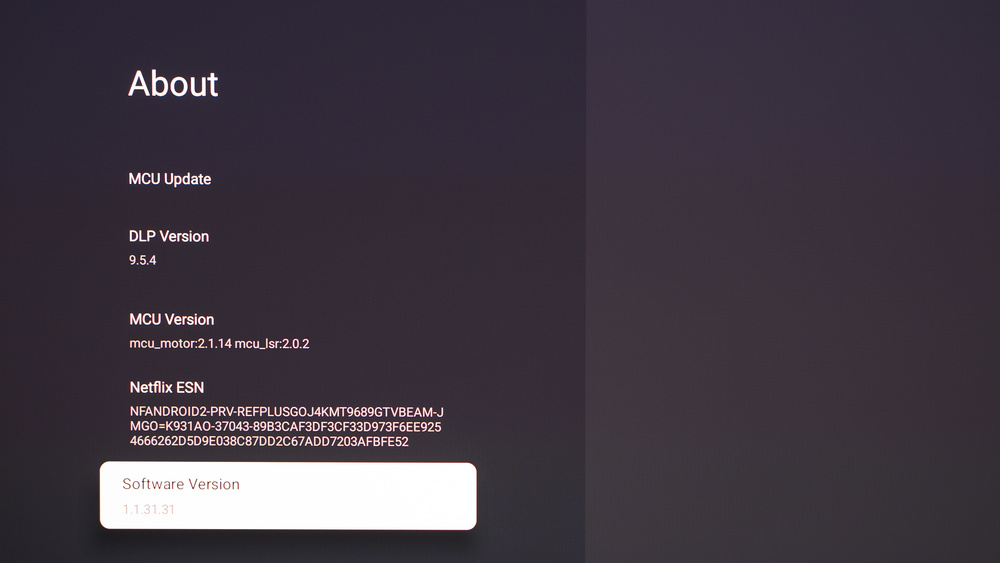

The unit we bought and tested was calibrated on software version 1.1.31.31.
Other Settings
For information on any other settings or features that fall outside of the scope of our testing, please refer to JMGO's product page.

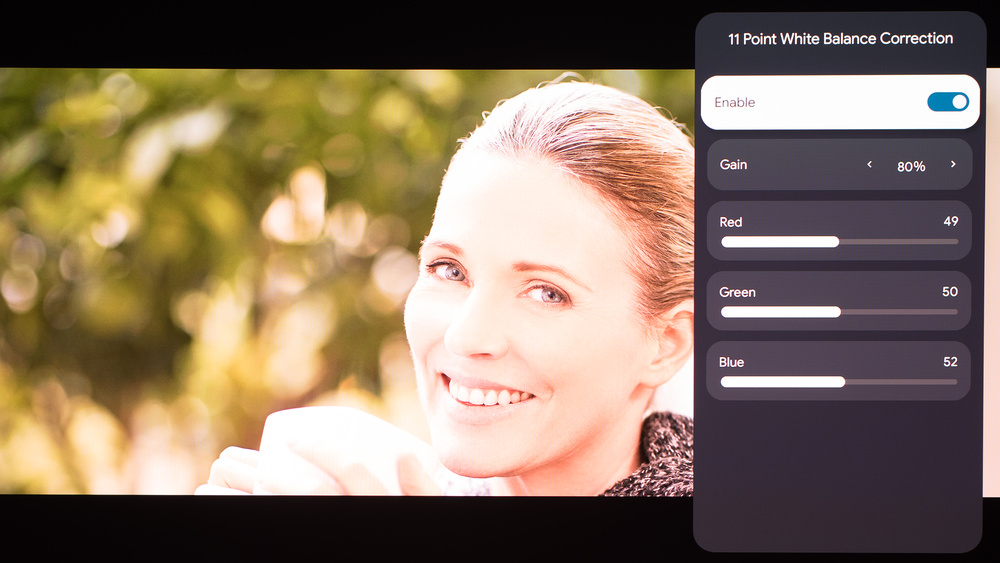

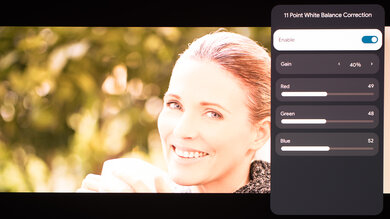

White Balance Settings
The following are the results of our unit's white balance and colorspace calibration. They're provided for reference and shouldn't be copied, as the calibration values vary per individual unit due to manufacturing tolerances. If you want to try them, you'll need to enter all the values shown, as all of them are active at the same time. If you end up with worse picture quality, simply reset them to the default values.
