Samsung NU7100 LED TV Calibration Settings

For additional settings information, please consult the Common Problems and How to Calibrate pages.

These are the settings we used to calibrate the Samsung 55 inch UN55NU7100 TV and we expect them to be valid for the 40 inch version (UN40NU7100), 43 inch version (UN43NU7100), 49 inch version (UN49NU7100), 65 inch version (UN65NU7100) and 75 inch version (UN75NU7100). These are suitable for any content, from watching movies to TV shows and gaming. For Gaming, some adjustments need to be done, and they are listed below.

General Settings

The first thing we did was to turn off all of the 'Eco Solution' settings since we didn't want the backlight level or picture settings to change during our calibration. This is recommended if you don't want the brightness of the TV to change automatically depending on the room brightness.

Samsung NU7100 Calibration Settings 42

For movies and TV content, the 'Movie' picture mode gave us the closest results to our calibration goal and it should bring the image quality closest to what the content creator intended it be.

Samsung NU7100 Calibration Settings 6

A 'Backlight' setting of 21 gave us a luminosity closest to our calibration target of 100 cd/m². Most people will find this too dim and should adjust it. Note that adjusting the backlight setting has no impact on picture quality. We left the 'Brightness' to 0, 'Contrast' to 45 and 'Sharpness' to 0. We also left "Color' to 25 and the 'Tint (G/R)' to their default values of 'G0 and R0'.

Samsung NU7100 Calibration Settings 8

Expert Settings

We turned off 'Digital Clean View', If you are watching older, low-resolution content, you may want to set it on to make the content smoother and with fewer compression artifacts. For our calibration, we left the 'Auto Motion Plus Settings' Off.

'Contrast Enhancer' was also left turned off since we don't want to add any extra image processing to keep the content as faithful to the original intent.

Samsung NU7100 Calibration Settings 9

Motion Interpolation (Soap Opera Effect)

The 'Auto Motion Plus Settings' control the NU7100's motion interpolation. Since it has a 60Hz panel, it can only interpolate 30 fps content up to 60Hz. To do so, set 'Auto Motion Plus' to 'Custom' and increase the 'De-judder' slider to your liking to add more or less soap opera effect.

Color and Gamma

We selected the 'Warm2' 'Color Tone' since it was the closest to our calibration goal, but you can change it to a cooler 'Color Tone' if you find the color too yellow or red.

Samsung NU7100 Calibration Settings 10

The gamma setting adjustment was set to +1 since it was the closest to our calibration goal. The TV will automatically set the Gamma type automatically depending on the content. You should only adjust the gamma curve with the slider (plus or minus) if you find there is black crush or if dark scenes are not deep enough.

Samsung NU7100 Calibration Settings 11

In the 'Color space' setting, it is preferable to leave it to 'Auto'. When set to auto, the color space changes to match the type of content you are watching automatically. Setting the Color Space to 'Custom' will allow calibrating the TV for SDR content. If you set the Color Space to 'Custom' you will have to adjust the settings each time you change from SDR to HDR.

Samsung NU7100 Calibration Settings 39

PC Monitor Settings

For use as a PC monitor, PC Mode can be enabled by setting the Device Type to PC from the Input Device Manager submenu in the External Device Manager menu. For proper chroma 4:4:4 support, HDMI UHD Color must be enabled for the port. When in PC Mode, a Sharpness setting of 10 is the default neutral setting. It is not possible to add sharpness, instead decreasing the setting will soften the image.

Samsung NU7100 Calibration Settings 47

HDR Settings

For watching HDR content via an HDMI connection, it is important to set the 'HDMI UHD Color' on for each HDMI input that will receive the HDR content. This will permit the HDMI port to transmit all the bandwidth needed for HDR and tells the TV to expect a 10-bit color signal on that input. If the 'HDMI UHD Color' is not turned on, some devices will not detect the NU7100 as being compatible with HDR. For HDR content, it is also preferable to set the 'Backlight' to maximum and set the 'Color Space Settings' to 'Auto'.

Samsung NU7100 Calibration Settings 45

Gaming Settings

To enable Game Mode, select 'External Device Manager' from the 'General' menu, and then select 'Game Mode Settings'. Set 'Game Mode' to 'On'. It is recommended to set the 'HDMI Black Level' to Auto. For SDR gaming set 'Sharpness' to '0' to remove any sharpening. To enable chroma subsampling when playing from a PC, set the device icon to 'PC' under the 'Input Device Manager' submenu.

Samsung NU7100 Calibration Settings 44

HDR Gaming Settings

For HDR gaming apply the same HDMI settings mentioned in the HDR settings and game settings above. Note that when in game mode, the TV won't change the backlight setting automatically, so it is preferable to set the backlight to max.

White Balance

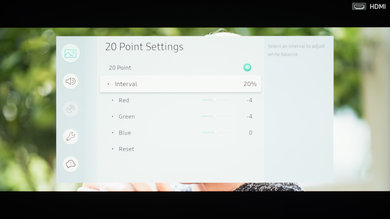

The following are the results of the white balance and colorspace calibration on our unit. They are provided for reference, and should not be copied as the calibration values vary per individual unit even for the same model and same size as the TV we reviewed due to manufacturing tolerances. If you want to try them you will need to enter all values shown, as all of them are active at the same time. If you end up with worse picture quality, simply reset them to the default values.

Questions Found an error?

Let us know what is wrong in this question or in the answer.

Email:

Questions & Answers

2 ANSWERED QUESTIONS
7
What is the response time for gaming? I’m noticing lag.

Lag and response time are two different things. Lag has to do with how long it takes for the TV's circuitry to process the image, whereas response time is how long it takes for the pixels to actually change.

The response time of the NU7100 is high, among the worst we have tested. This will cause motion blur behind fast moving objects, not lag. Lag is caused by input lag due to the TV's internal processing. The NU7100 has excellent low input lag, as long as you are in Game mode. If you are noticing lag make sure that you are in game mode by going into Settings -> General -> External Device Manager, and enabling the option called Game Mode.

2
Hey I was really wondering two quick questions. Is the brightness for the TV shown in your review the same as it would be in game mode? Also in game mode, does the TV still dim dark scenes like in your %2 window test? If it does is there a way to disable that?
Hi! The brightness is the same in game mode and in regular mode, and unfortunately 2% windows are still dimmed; but this isn't really noticeable in actual games.
