Samsung QN70H Calibration Settings

We used the following calibration settings to test the 65-inch Samsung QN70H, but they're also valid for the 43-, 50-, 55-, 75-, and 85-inch models. These settings are meant to provide a starting point; they're not meant to be copied 1:1. They provide the most accurate image in a moderately lit room, but you should adjust them to match your personal preferences and viewing conditions.

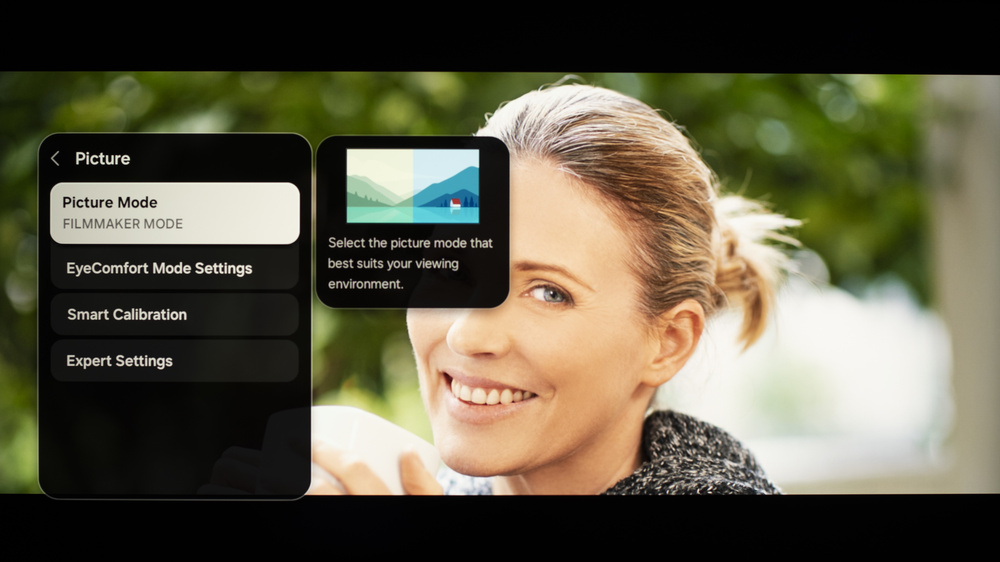

Below are the settings we used to calibrate this TV in SDR. We chose the Filmmaker Mode picture preset, as it delivers the most accurate image out of the box. All other picture quality settings were left at their defaults.

• Picture Mode: FILMMAKER
• Contrast: 45
• Color: 25
• Color Space: Auto
• Gamma: 2.2
• Color Tone: Warm2

The settings that control the backlight should be adjusted in SDR depending on your viewing conditions. These settings deliver the most accurate image in a completely dark room.

• Brightness: 18 (100 nits)
• Local Dimming: Low (100 nits)

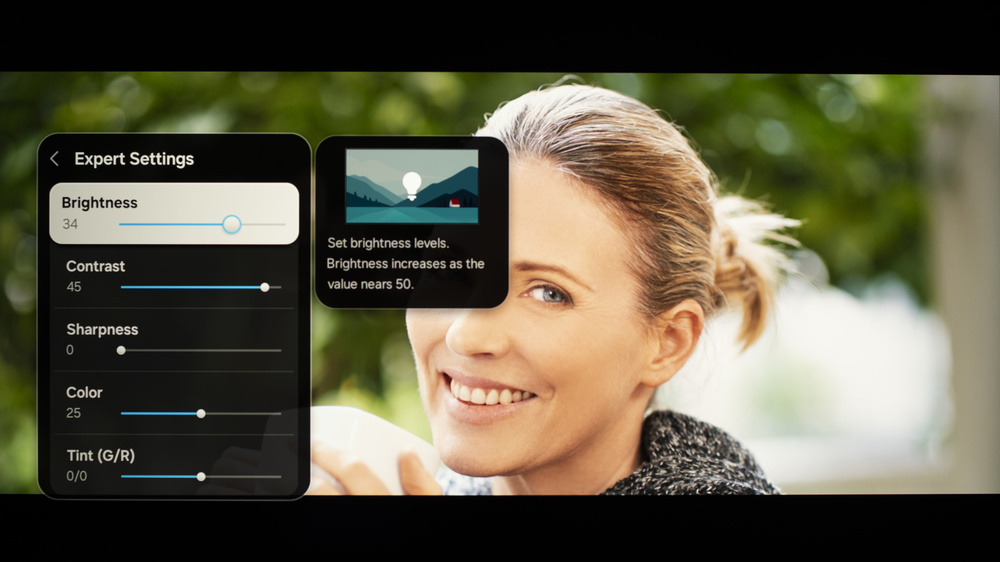

• Brightness: 34 (200 nits)
• Local Dimming: Low (200 nits)

If you prefer a brighter image, set Local Dimming to 'High', and adjust the Brightness setting as needed.

• Brightness: 50 (adjust as needed)

HDR is automatically enabled for native apps. Once you start playing HDR content, some of the settings change automatically. All other picture quality settings were left at their defaults.

• Picture Mode: FILMMAKER
• Contrast: 50
• HDR Tone Mapping: Static
• Color Space: Auto
• Color Tone: Warm2
• Local Dimming: High

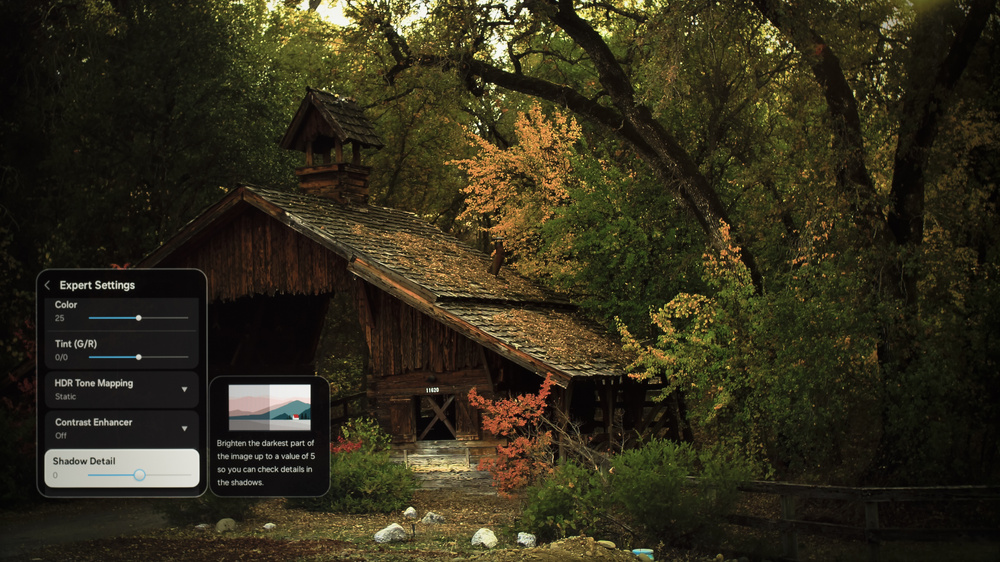

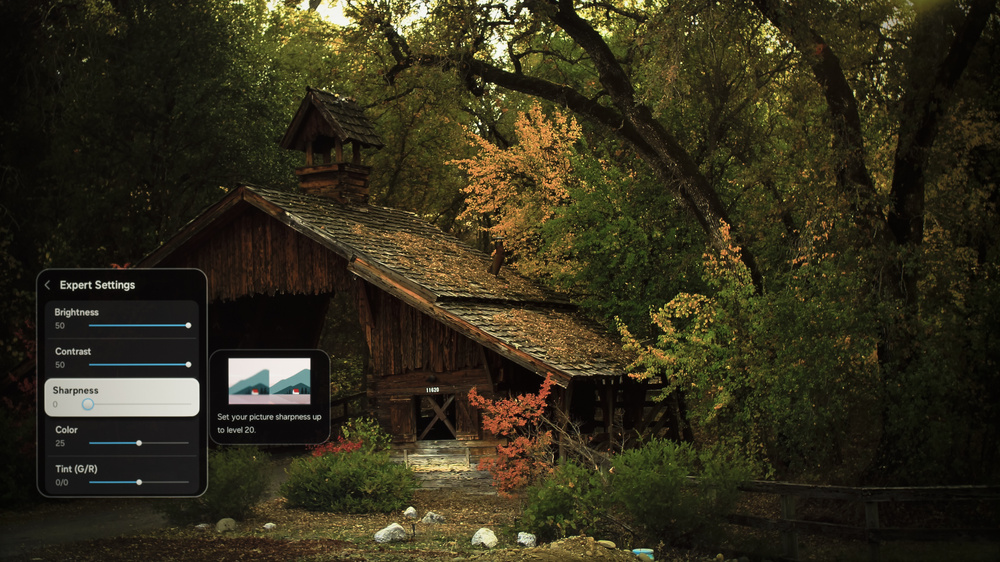

Below are the settings we used for HDR10 in a dark room. These settings deliver the most accurate image, but also limit how bright the TV can get.

• Brightness: 50
• HDR Tone Mapping: Static

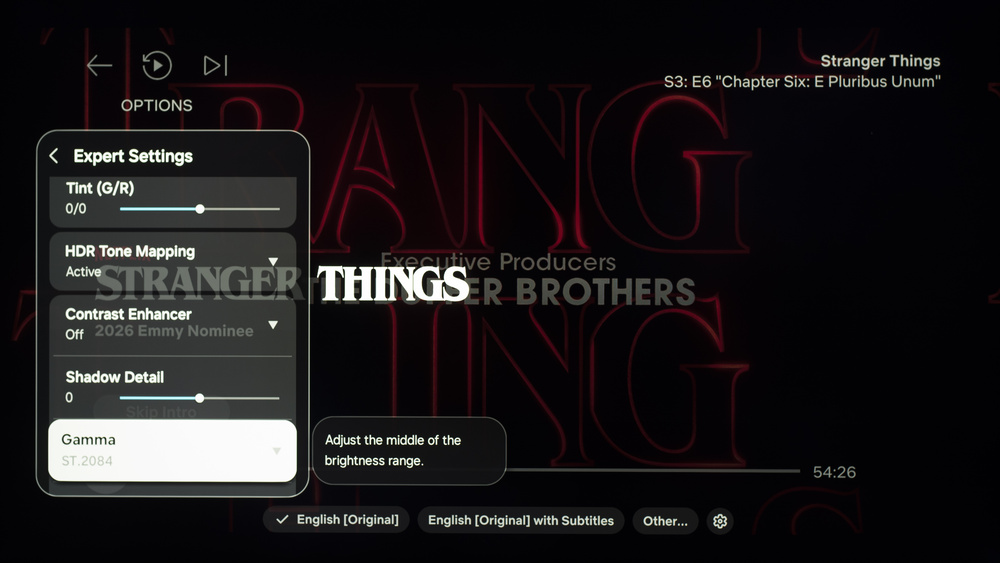

If you prefer a brighter image, you can enable HDR Tone Mapping setting.

• HDR Tone Mapping: Active

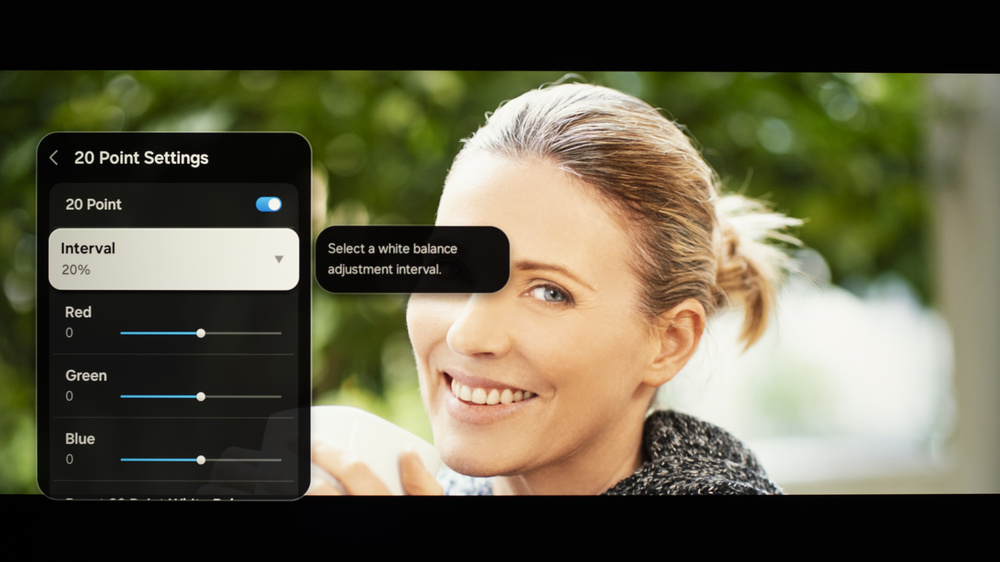

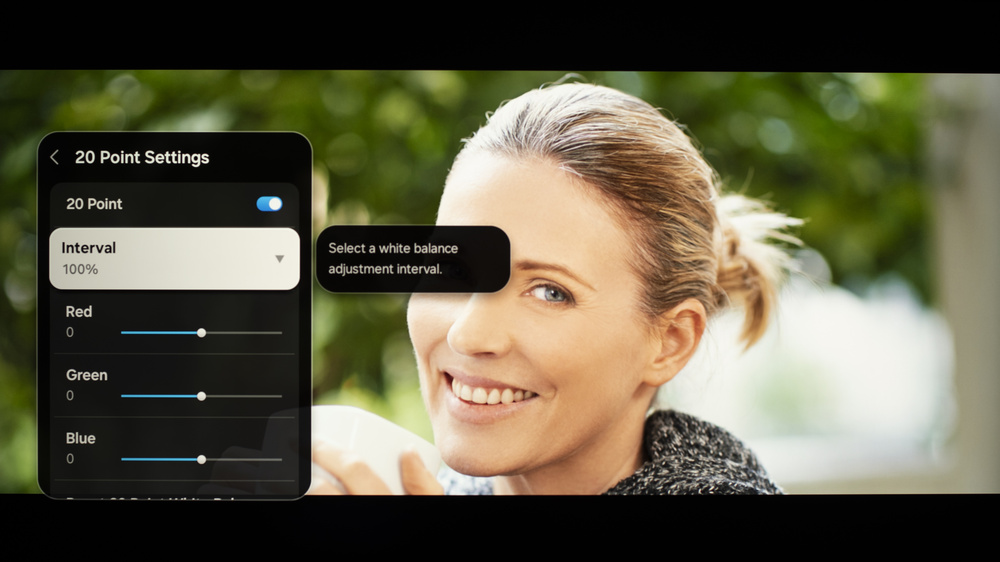

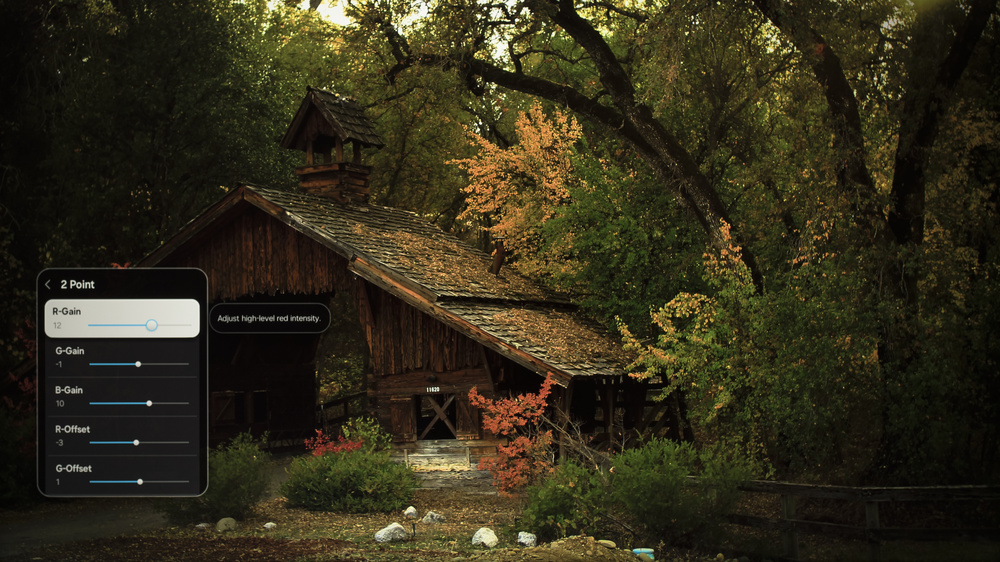

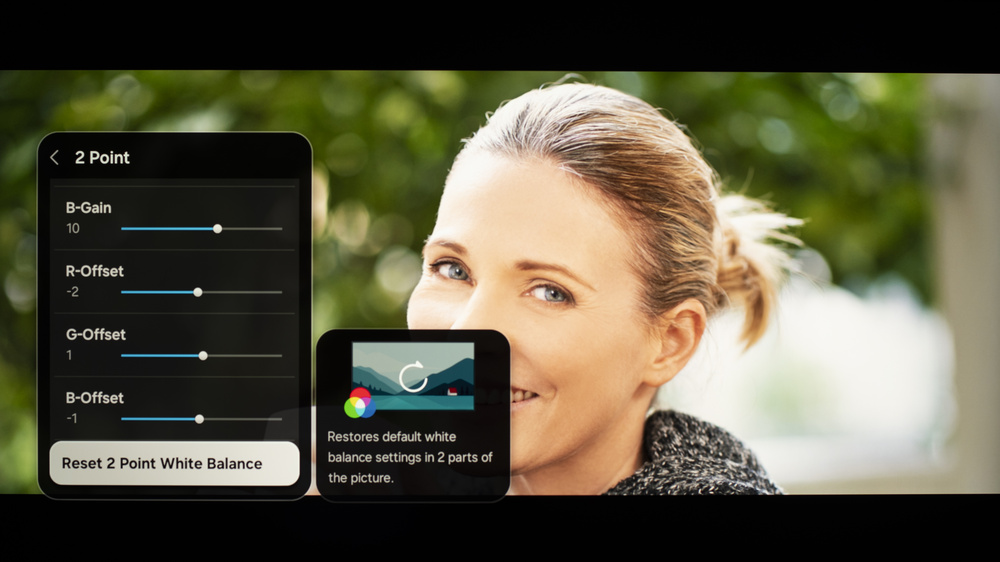

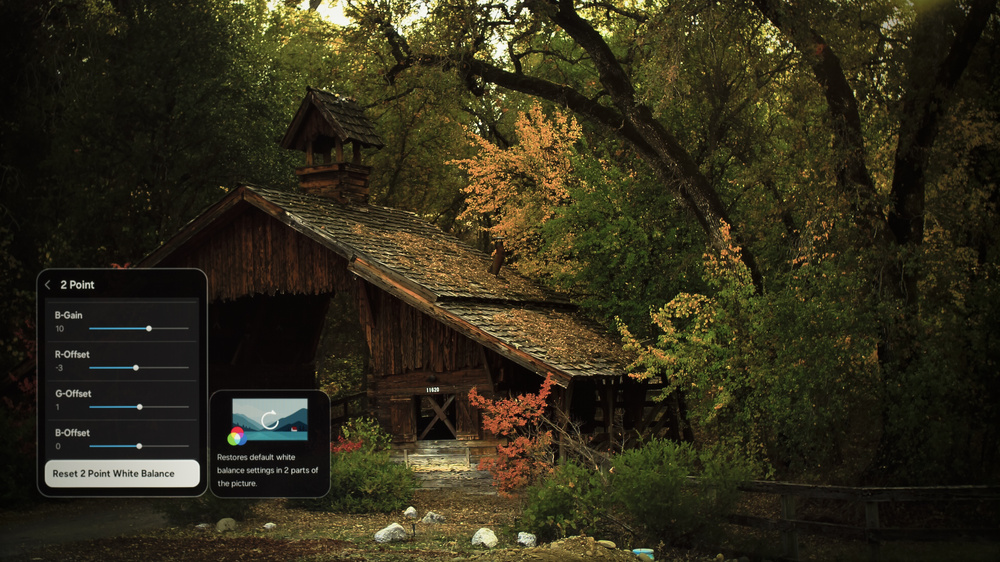

The following are the results of calibrating the white balance of our unit to 6500K in HDR using the 2-point method. These settings are provided for reference only and shouldn't be copied as the calibration values vary per individual unit. If you want to try them, you'll need to enter all values shown, as all of them are active at the same time. If you have worse picture quality, simply reset them to the default values.

When you start gaming, you can switch to the Game Mode to get the lowest input lag and enable advanced gaming features. No other changes to picture quality settings are needed. With ALLM enabled the TV will automatically switch to Game Mode when you start playing a game.

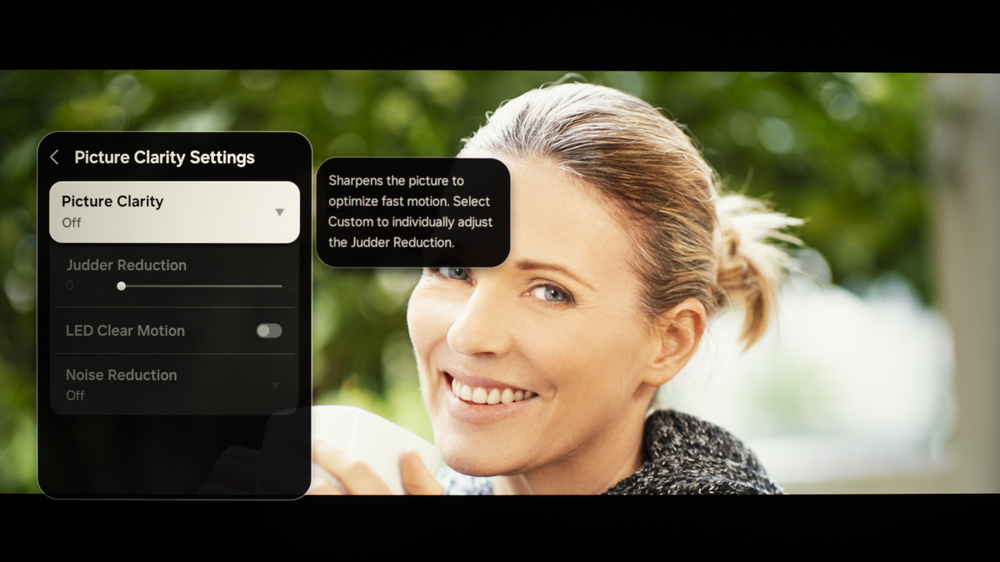

Below are the settings we used for most of our motion and processing tests. Motion and processing can be subjective, so you should adjust these settings to your personal preferences. You might also need to adjust these settings depending on the source and specific content.

The TV automatically removes judder from the internal apps and 24Hz and 25Hz signals.

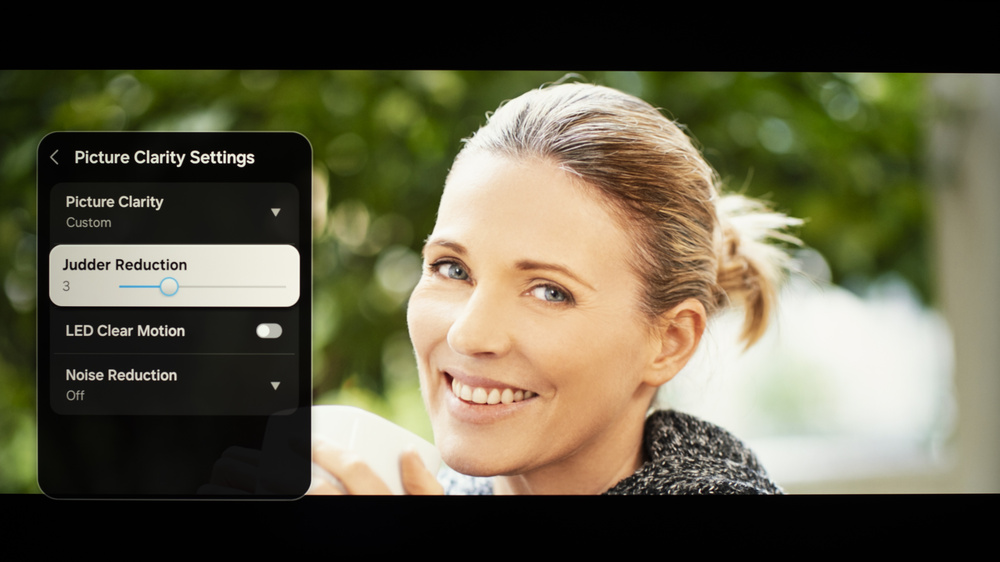

Setting Judder Reduction to '3' outputs a framerate equivalent to 30fps, which helps to reduce stutter in 24fps content. However, it barely works on this TV, and the setting introduces judder.
