Products
NuPhy Air75 HE
NuPhy Air75 V3
Tested using Methodology v1.4.2
Updated Sep 25, 2025 06:06 PM
SEE PRICE
Amazon.com
Tested using Methodology v1.4
Updated Aug 26, 2025 03:47 PM
SEARCH
Amazon.com
ConnectivityWired
Size
Compact (75%)
Switch Type
Magnetic
Output Type
Adjustable Actuation
Hot-Swappable Switches
Yes
ConnectivityWireless
Size
Compact (75%)
Switch Type
Mechanical
Output Type
Non-Adjustable
Hot-Swappable Switches
Yes
Our Verdict
NuPhy Air75 HE
NuPhy Air75 V3
The NuPhy Air75 V3 and the NuPhy Air75 HE are low-profile keyboards with a similar look and form factor, but they are designed for different purposes. The Air75 V3 uses mechanical switches, making it a versatile option suitable for both gaming and productivity. The Air75 HE, on the other hand, is better suited for gaming and features Hall effect switches with adjustable actuation, Rapid Trigger and SOCD support, and a maximum polling rate of 8000 Hz.
Variants
- Air75 HE (Gray)
- Air75 V3 (Nebula Dark)
- Air75 V3 (Nova White)
Check Price
Gray
Air75 HE
SEE PRICE
Amazon.com
Nebula Dark
Air75 V3
SEARCH
Amazon.com
Gray
Air75 HE
SEARCH
B&H
Nova White
Air75 V3
SEARCH
Amazon.com
Gray
Air75 HE
SEARCH
BestBuy.com
Gray
Air75 HE
SEARCH
Walmart.com
Main Differences for
Gaming
Gaming
Threshold
Gaming
9.0
8.3
Multi-Key Latency
9.7
8.3
Single-Key Latency
9.8
8.9
Chord Split
8.6
7.4
Full Comparison

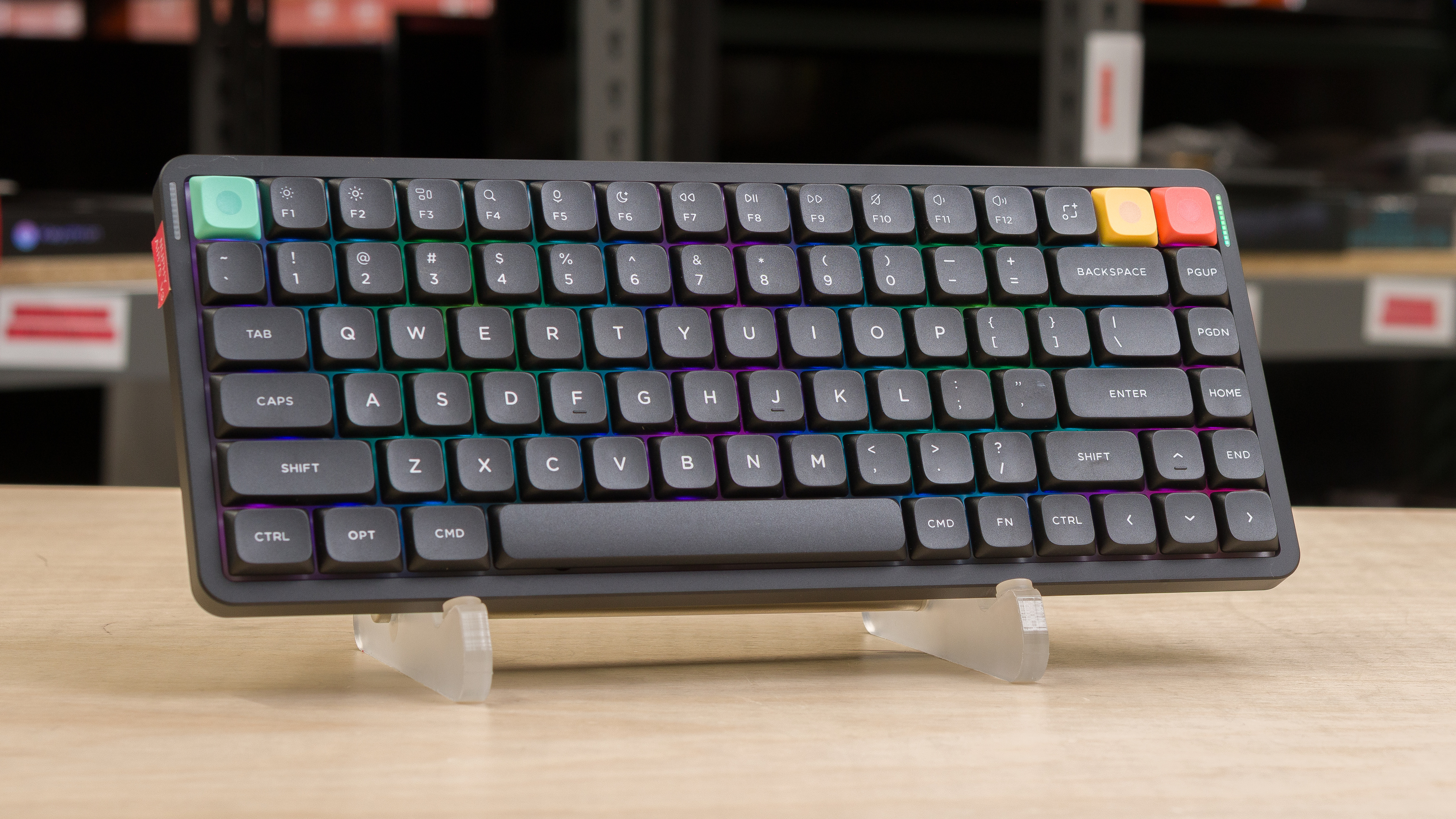

Design
Dimensions

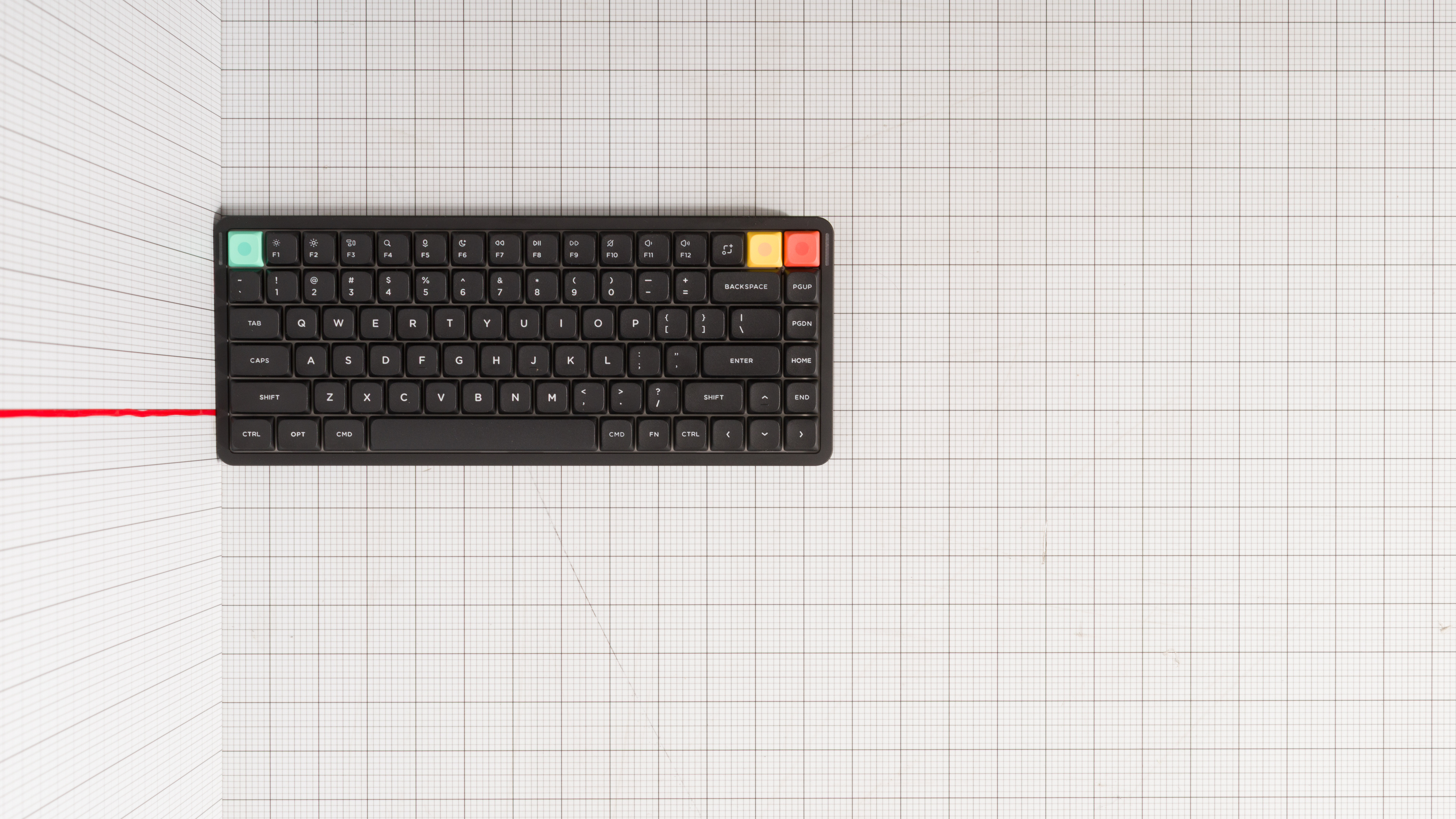

Top Picture
Size
Compact (75%)
Compact (75%)
Height
0.9" (2.3 cm)
1.1" (2.8 cm)
Width
12.4" (31.6 cm)
12.5" (31.8 cm)
Depth
5.2" (13.2 cm)
5.0" (12.7 cm)
Depth With Wrist Rest
N/A
N/A
Weight
1.66 lbs (0.751 kg)
1.59 lbs (0.723 kg)
Build Quality
8.5
8.5

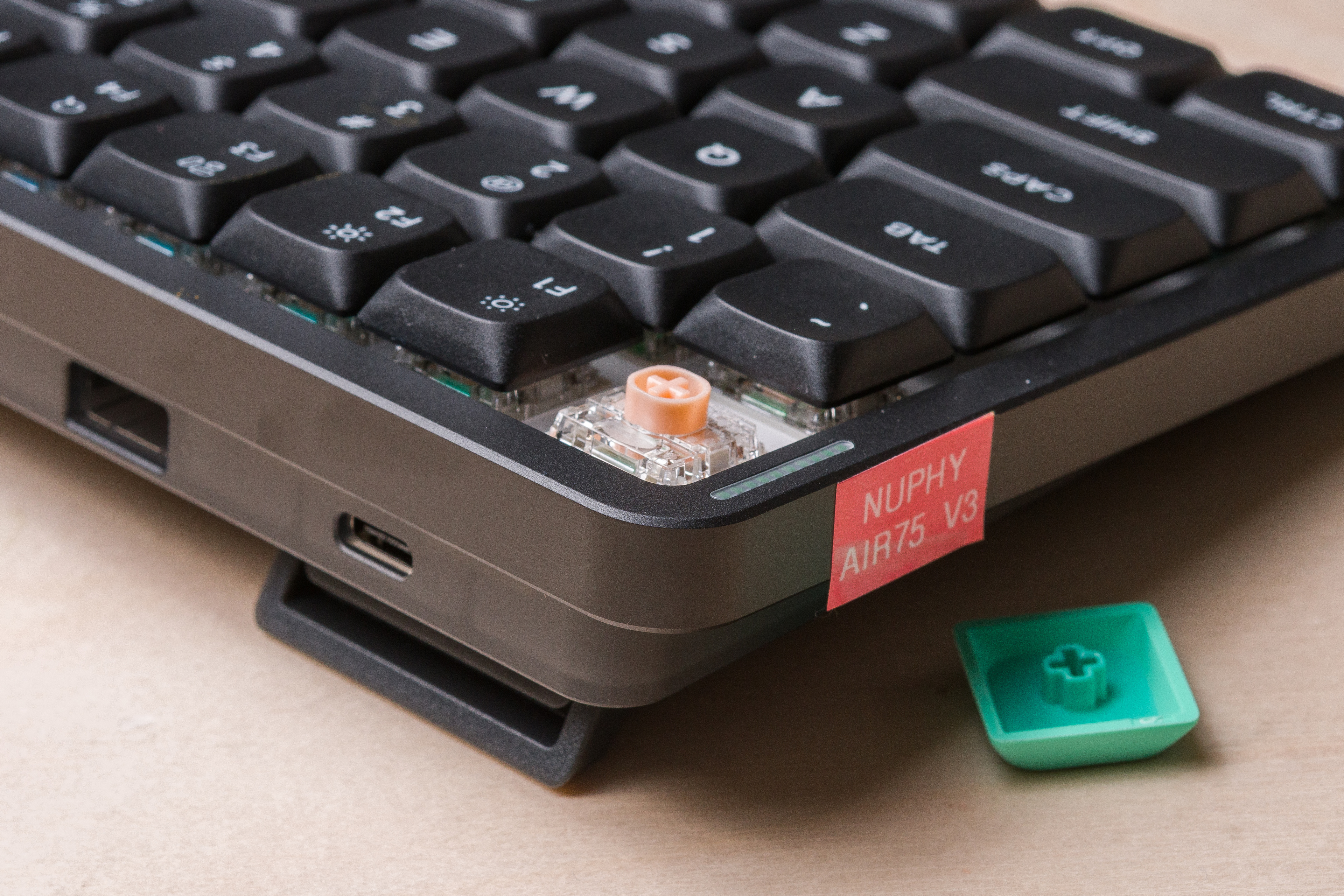

Build Quality Close Up
Keycap Material
PBT
PBT
Ergonomics
7.0
7.0

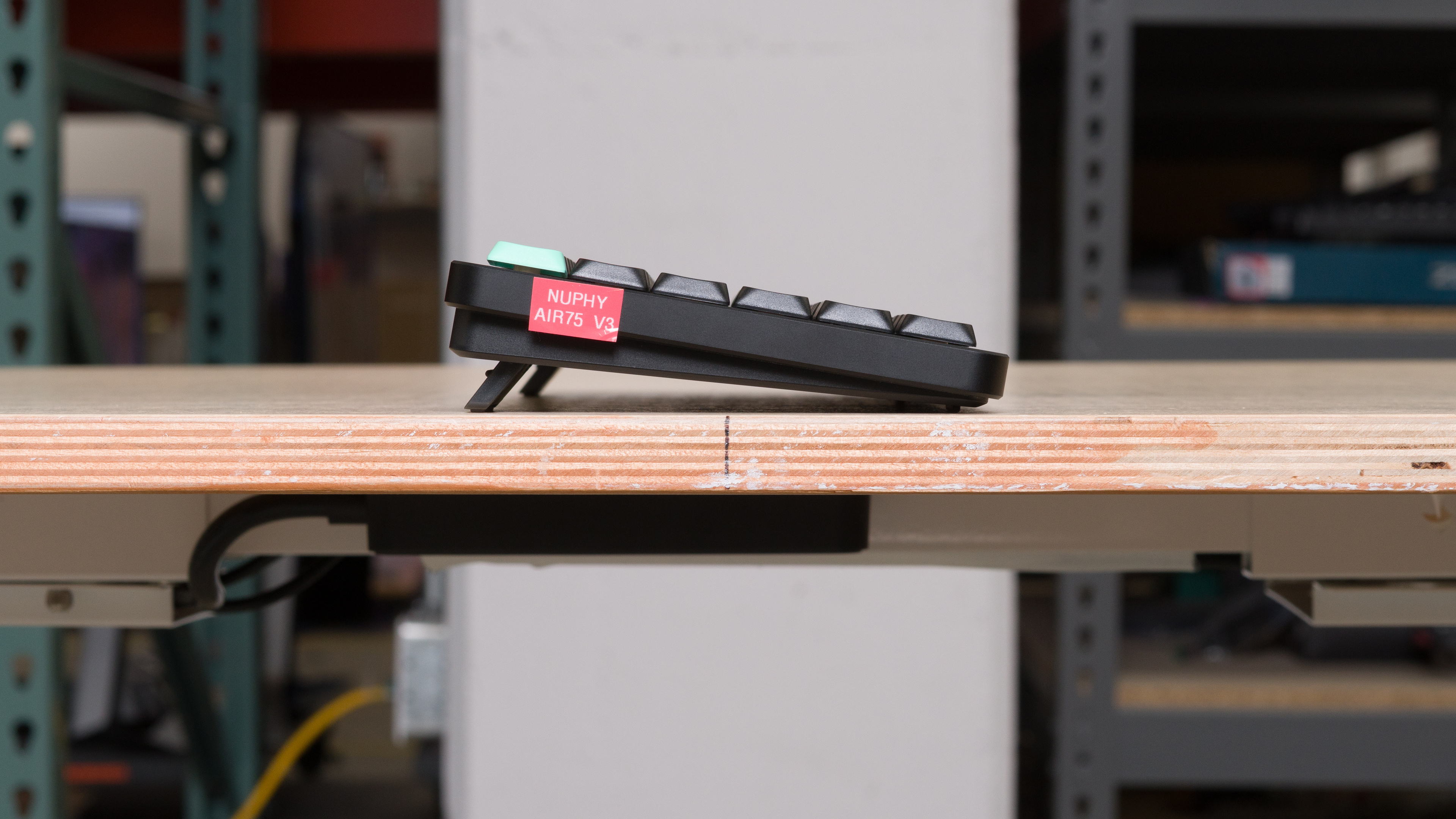

Side Picture
Curved/Angled
No
No
Split Keyboard
No
No
Key Alignment
Staggered
Staggered
Minimum Incline
2.4°
4°
Medium Incline
5°
7.9°
Maximum Incline
7.7°
10°
Home Row Height
20.6 mm (0.8")
22.8 mm (0.9")
Hardware Customizability
8.1
8.3

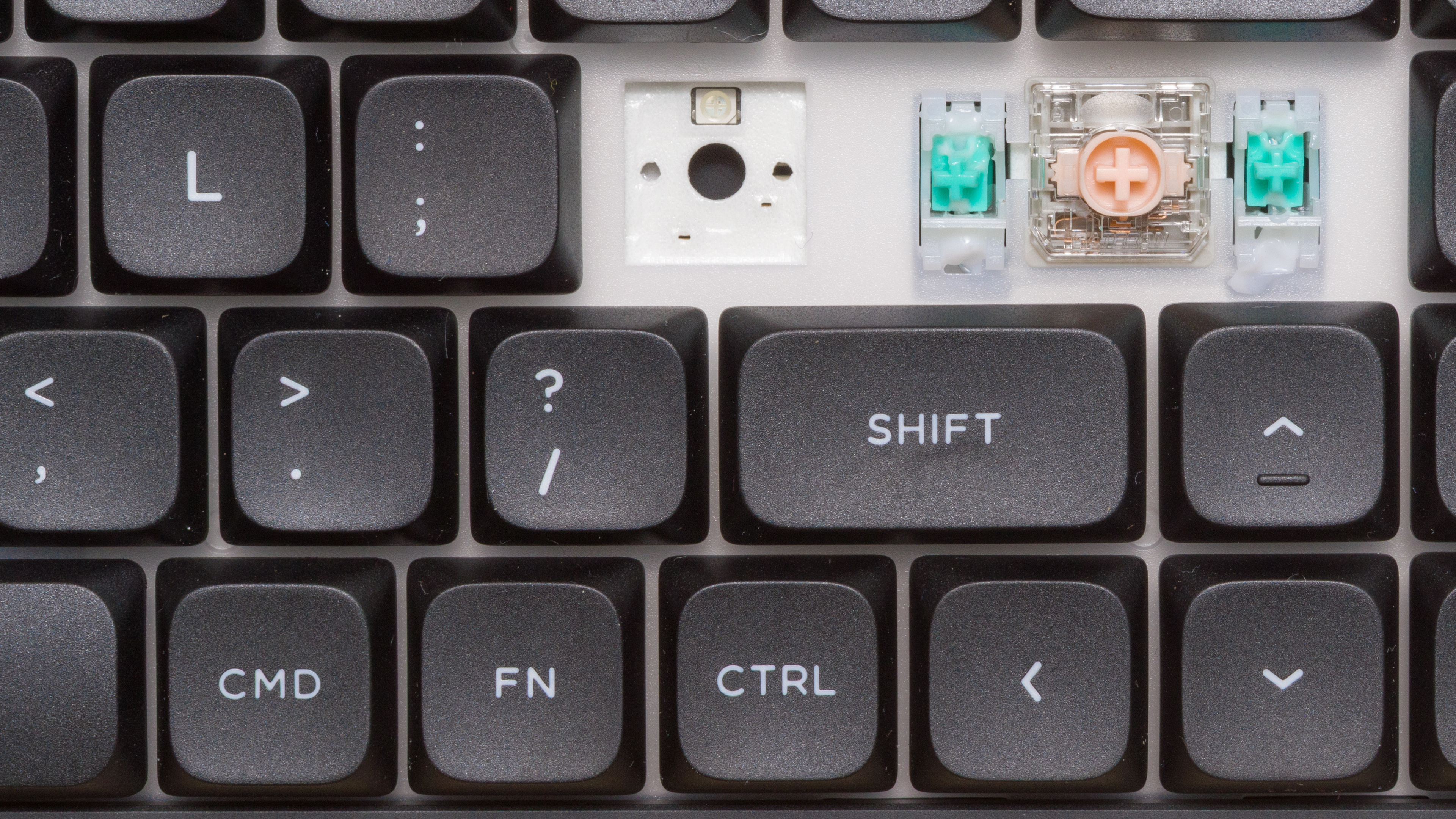

Customizability Overview
Replaceable Cherry Stabilizers
Yes
Yes
Stabilizer Fixation
Plate-Mounted
Plate-Mounted
Spacebar Stabilizer Size
6.25u
6.25u
Size Of Right Mod Keys
1u
1u
Hot-Swappable Switches
Yes
Yes
Switch Stem Shape
Low Profile Cherry MX Style
Low Profile Cherry MX Style
Mechanical Switch Compatibility
No Mechanical Switch Pinout
Non-Cherry Pinout
Magnetic Switch Compatibility
N-Pole Down
North-Facing Cherry MX Interference
No
No
Backlight Features
10
10

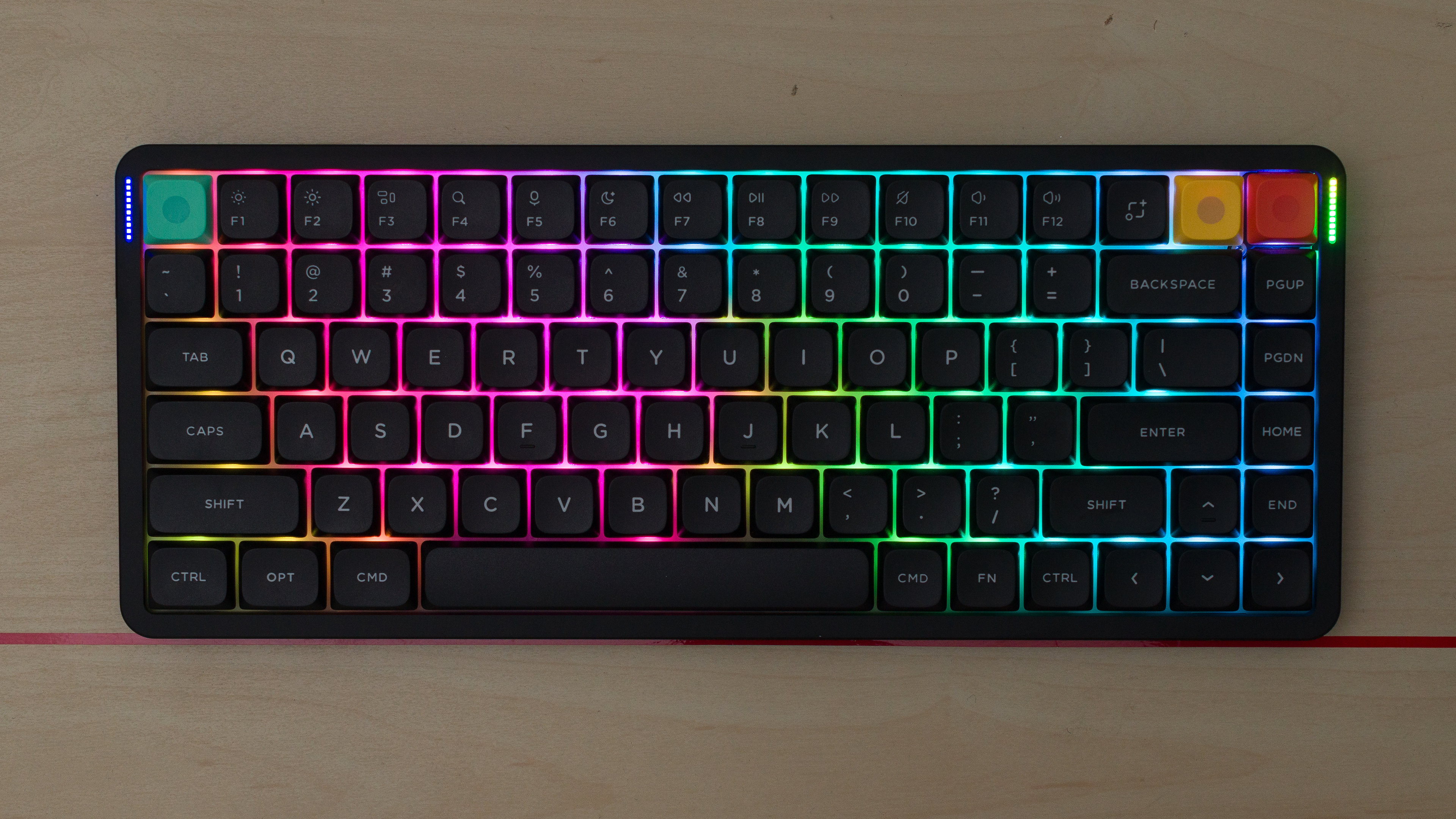

Backlighting Picture

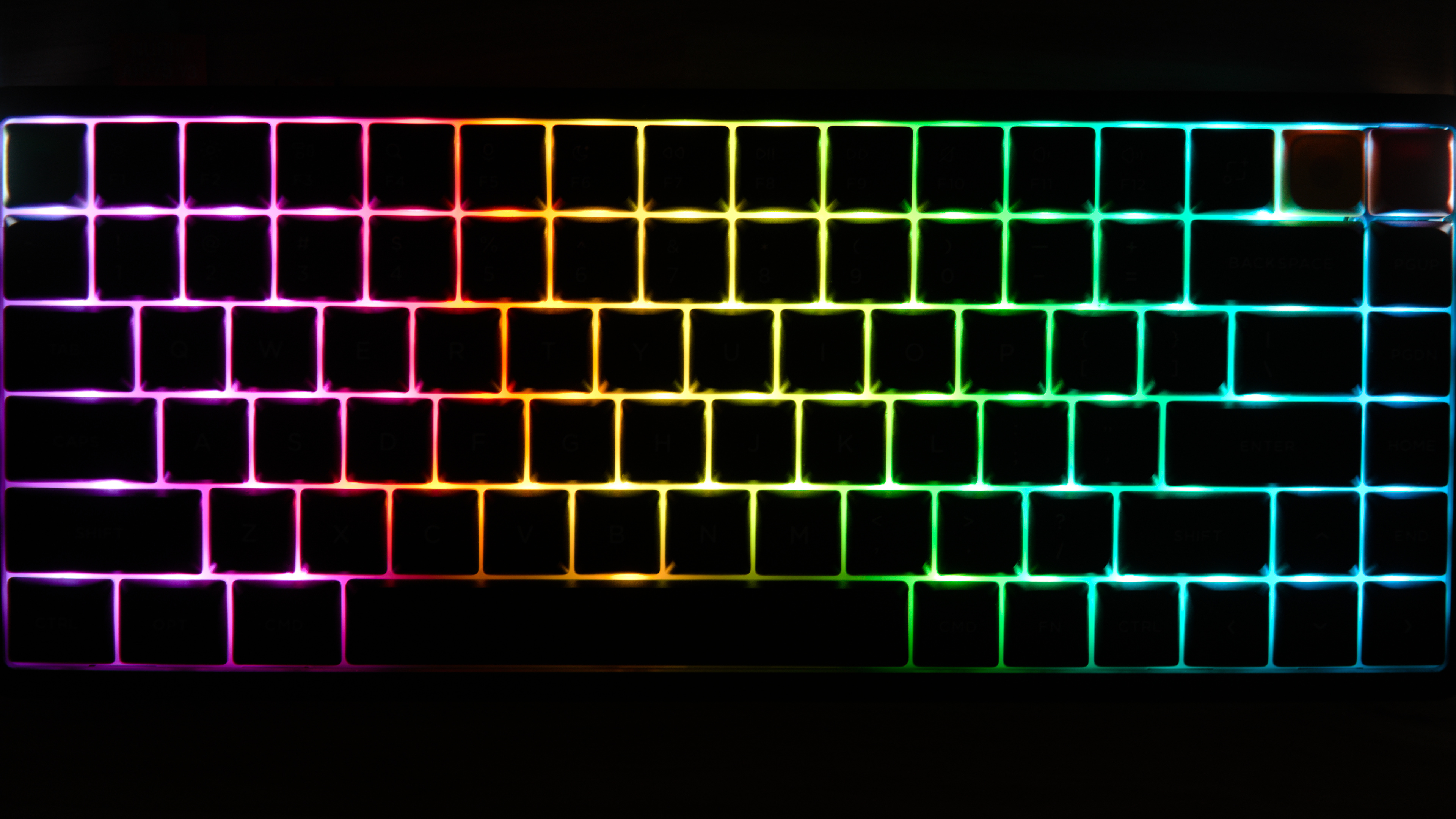

Brightness Max
Backlighting
Yes
Yes

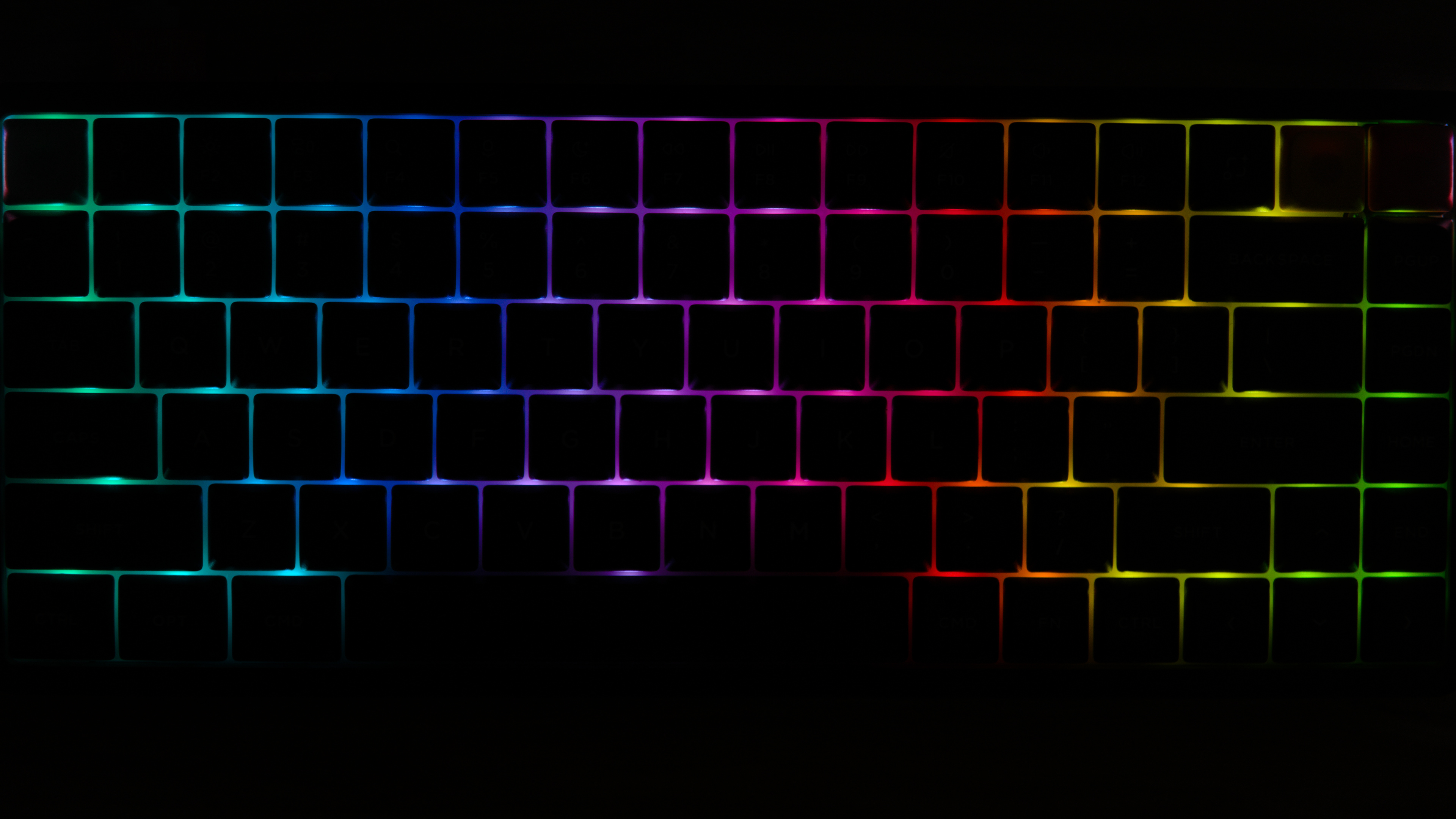

Brightness Min
RGB
Yes
Yes
Per-Key Backlighting
Yes
Yes
Effects
Yes
Yes
Software Controllable
Yes
Yes
Backlight Clarity
4.0
4.0

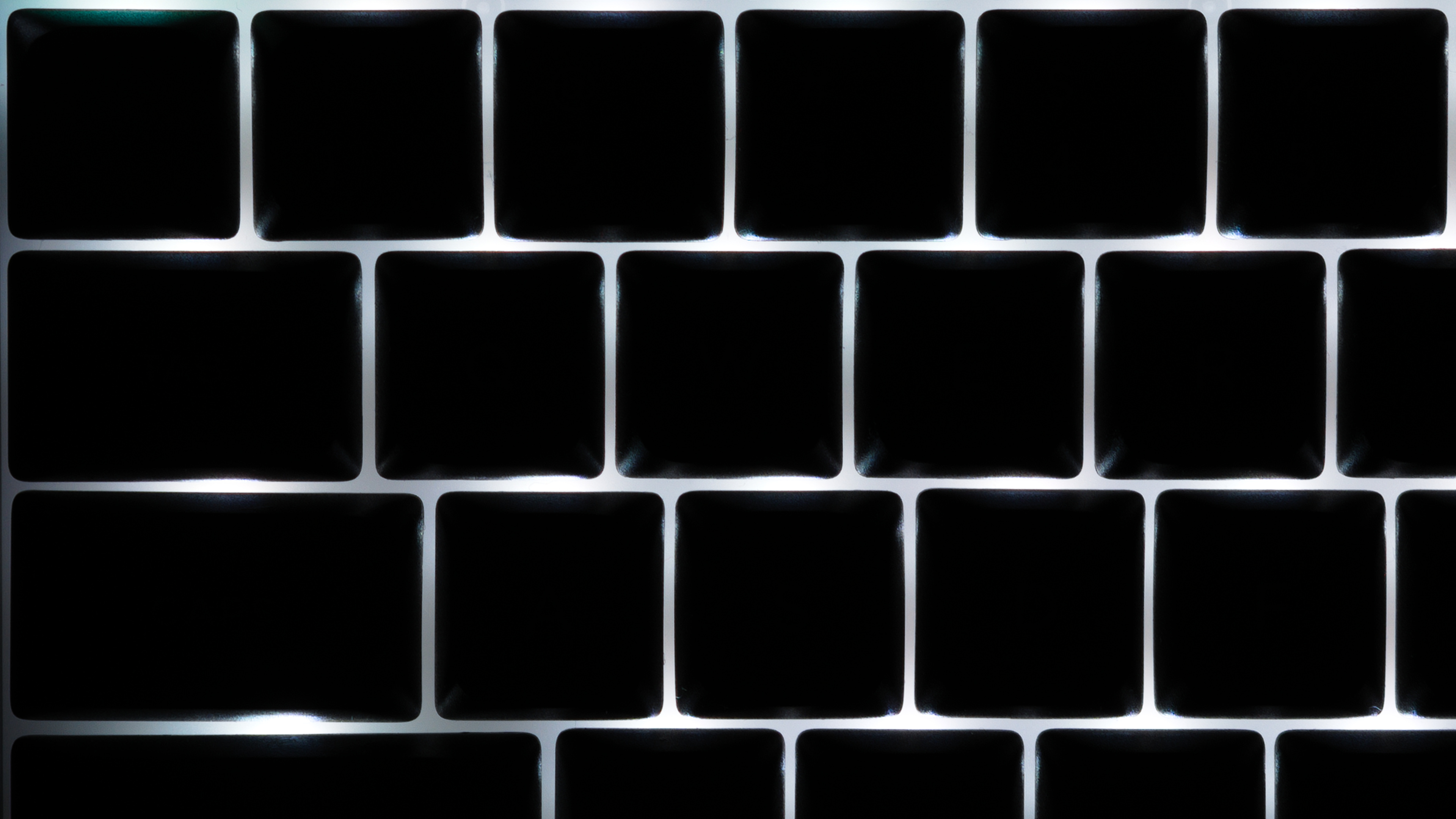

White Shot
Cable & Connector
Connectivity
Wired
Wireless
Detachable
Yes (Wired Only Keyboard)
Yes (Wired Mode and Charge)
Length
4.9 ft (1.5 m)
4.9 ft (1.5 m)
Connector (Keyboard side)
USB type-C
USB type-C
Wireless Versatility
0.0
10
Bluetooth
No
Yes
Bluetooth Multi-Device Pairing
No
3
Proprietary Receiver
No
Yes
Battery Type
No Batteries
Rechargeable
Macro Keys And Programming
4.0
4.0
Dedicated Macro Keys Count
0
0
Onboard Macro Programming
No
No
Macro Programming With Software
Yes
Yes

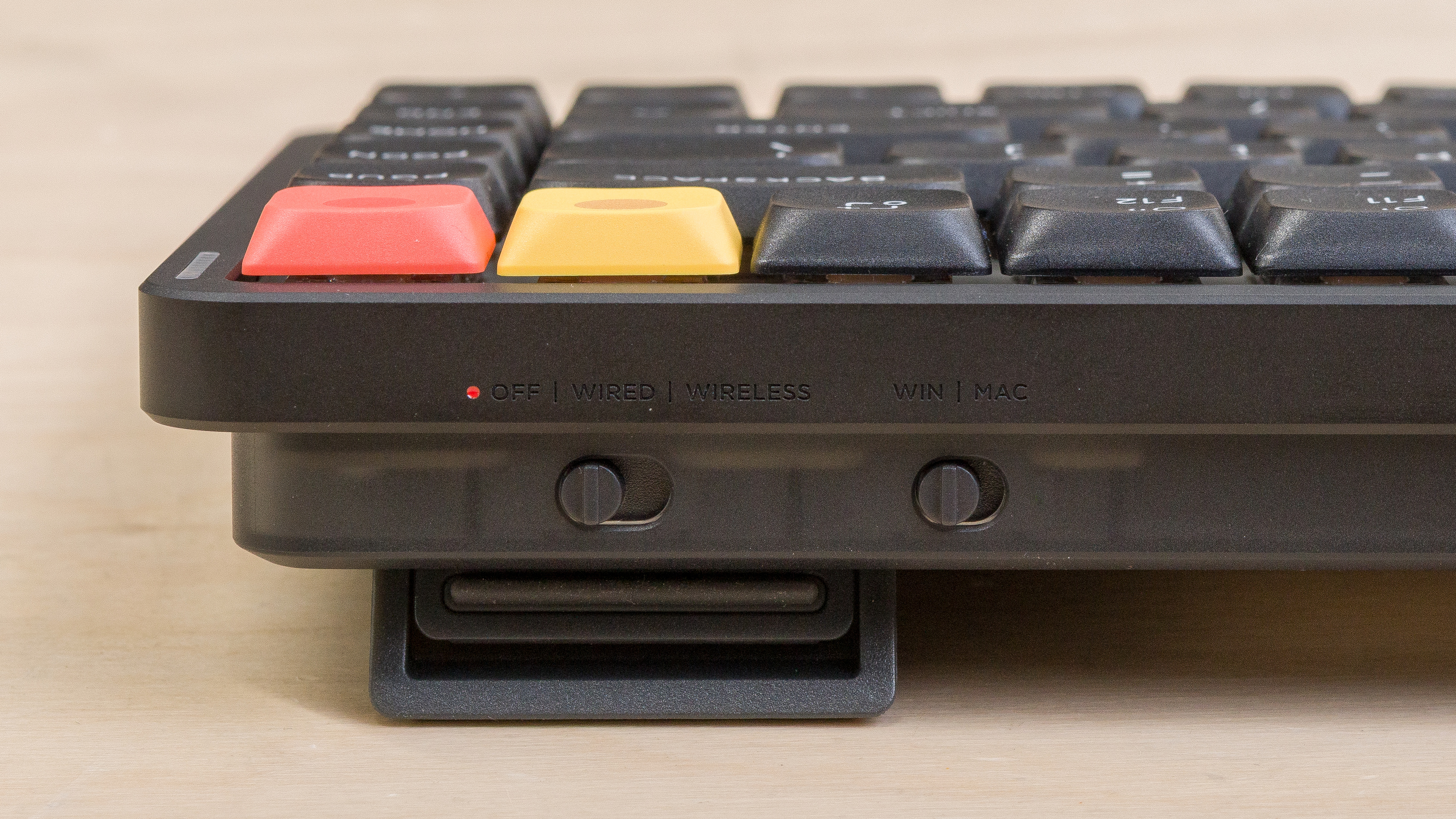

Extra Features
Extra Features
Media Keys
Non-Dedicated
Non-Dedicated
Trackpad / Trackball
No
No
Scroll Wheel
No
No
Control Knob
No
Yes
USB Passthrough
No
No
Numpad
No
No
Windows Key Lock
Yes
Yes
Lock Indicator
Caps Lock
Caps Lock
In The Box

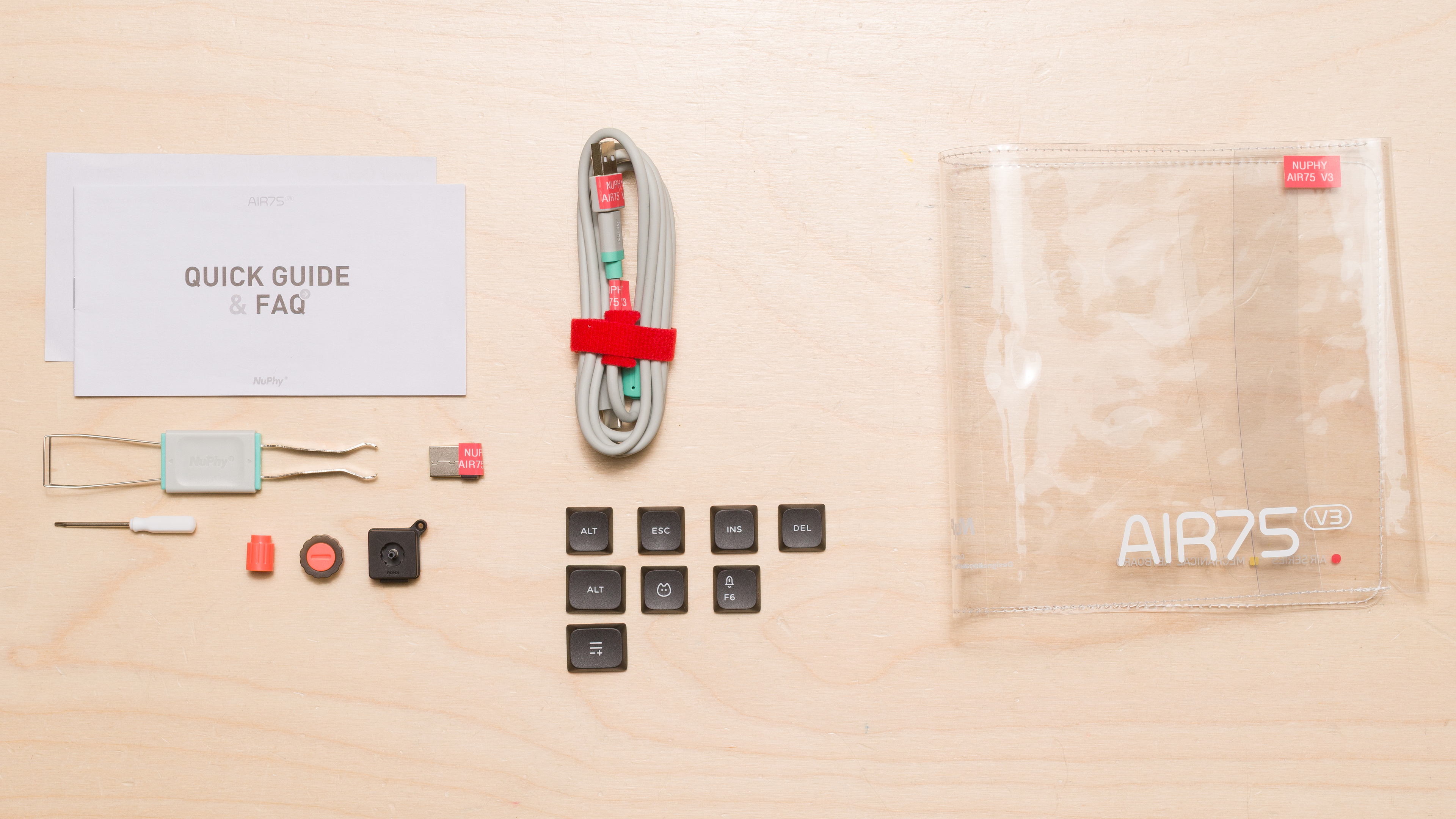

Bundle Picture
Typing Experience
Typing Quality
8.5
8.0
Key Spacing
19.0 mm (0.748")
19.0 mm (0.748")
Typing Noise
8.6
9.4
Typing Sample
Average Loudness
47.6 dBA
41.3 dBA
High Pitch Clicks
No
No
Keystrokes
Key Switch Actuation Graph
Operating Force
38 gf
43 gf
Actuation Force
38 gf
40 gf
Pre-Travel
0.4 mm
1.6 mm
Total Travel
3.3 mm
3.0 mm
Adjustable Input Granularity
8.5
0.0
Input Linearity Graph
Analog Output Graph
Top Deadzone
0.31 mm
N/A
Bottom Deadzone
0.22 mm
N/A
Detection Ratio
84%
N/A
Minimum Step Depth
0.02 mm
N/A
Switches
Wobble Video
Switch Name
Gateron Low-Profile Magnetic Jade Pro
Gateron Blush Nano
Switch Type
Magnetic
Mechanical
Feel
Linear
Linear
Output Type
Adjustable Actuation
Non-Adjustable
Performance
Single-Key Latency
9.8
8.9
Single-Key Latency Graph
Best Connection
0.9 ms
4.4 ms
Best Connection Std Dev
±0.1 ms
±0.7 ms
Wired
0.9 ms
4.4 ms
Receiver
N/A
7.2 ms
Bluetooth
N/A
12.4 ms
PCB (Estimated)
N/A
3.1 ms
Multi-Key Latency
9.7
8.3
Latency Video
Multi-Key Latency Graph
Connection Evaluated
Wired
Receiver
Key Press
0.9 ms
7.0 ms
Key Release
N/A
Data Transmission
9.6
8.7

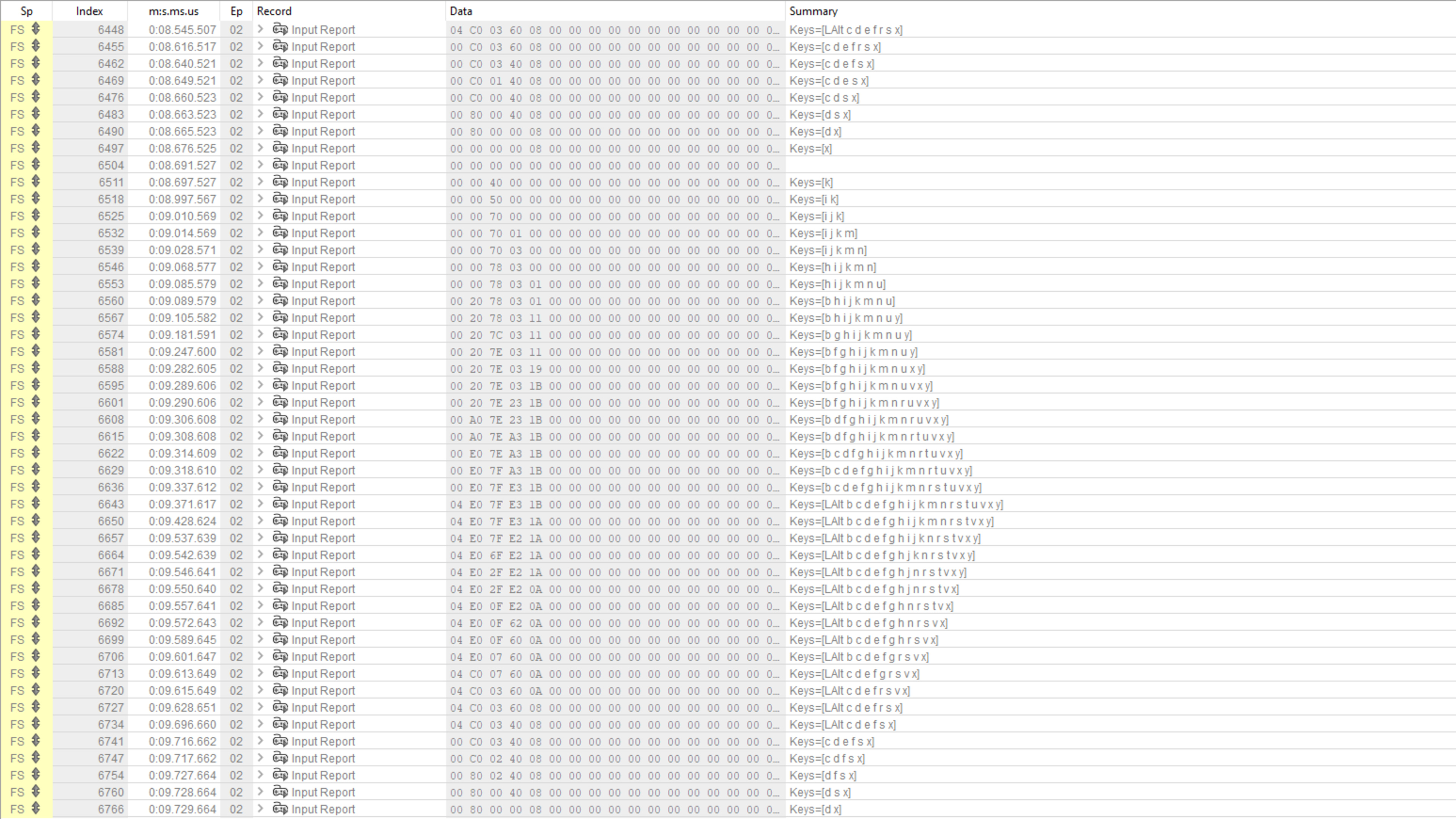

Multi-Key Raw USB
Connection Evaluated
Wired
Receiver
USB Polling Rate
8,000 Hz
1,000 Hz
Effective Update Rate
8,000 Hz
1,000 Hz
N-Key Rollover (NKRO)
Yes
Yes
Multiple Keys Per USB Report
Yes
Yes
Chord Split
8.6
7.4
Chord Split Graph
4 Chord Split Delay
3.5 ms
7.2 ms
8 Chord Split Delay
12.6 ms
11.2 ms
Software and Operating System
Configuration Software
Software Tour
Software Name
NuPhy.io
NuPhy.io 2.0
Software Windows Compatible
Yes
Yes
Software macOS Compatible
Yes
Yes
Onboard Memory
Yes
Yes
Profiles
6+
6+
Computer Compatibility
10
10
Windows
Fully Compatible
Fully Compatible
macOS
Fully Compatible
Fully Compatible
Linux (Ubuntu 22)
Fully Compatible
Fully Compatible
Media Key Compatibility
Windows, MacOS & Linux
Windows, MacOS & Linux
Wireless Mobile Compatibility
0.0
10
Android
Not Compatible
Fully Compatible
iOS
Not Compatible
Fully Compatible
iPadOS
Not Compatible
Fully Compatible
Media Key Compatibility
Not Compatible
Android, iPhone & iPad
