We used the following calibration settings to test the XGIMI Vibe One. Keep in mind that results can vary slightly between individual units, firmware versions, and picture modes, so you may need small tweaks if your unit looks a bit different.
These settings are meant to provide a solid starting point for accurate SDR playback in a typical living room. They aren't meant to be copied 1:1, and your best results will depend on your screen size, throw distance, room brightness, and wall/screen color.

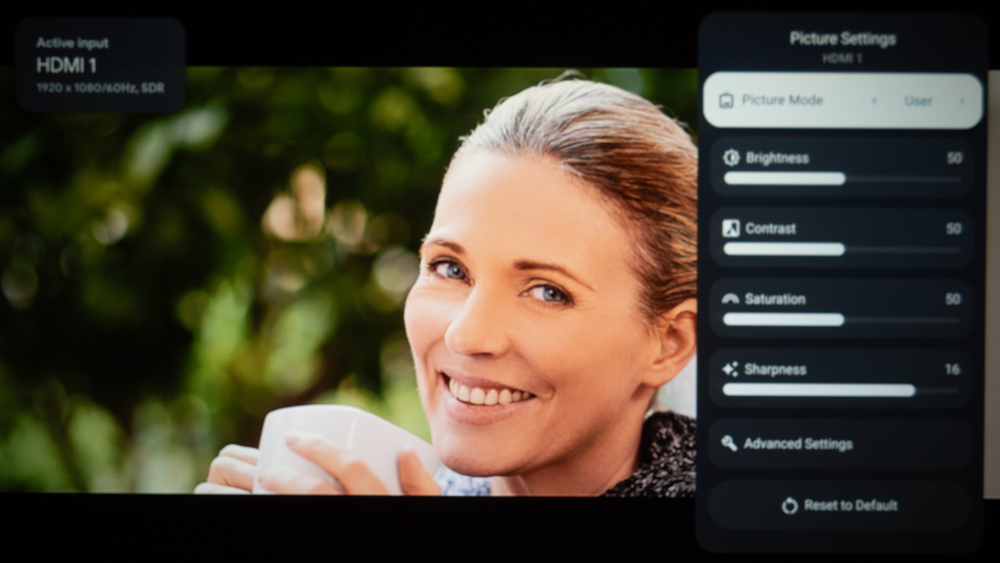

SDR Picture Settings
For SDR content, you can choose a few different preset picture modes. We used the User Mode because it allows for the most customization, including to adjust the projector's white balance (see below). All other settings were either left to default, disabled, or left off.

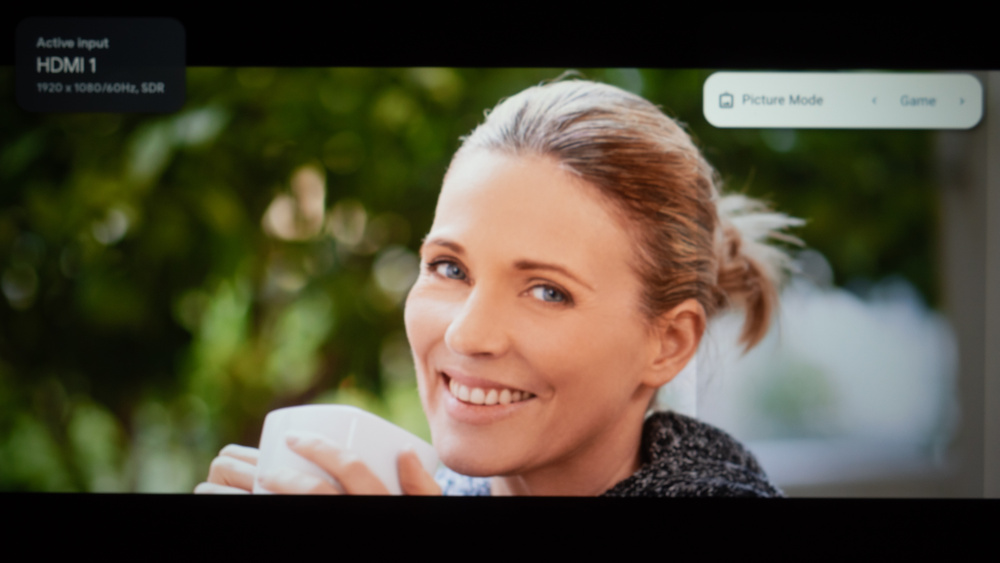

Gaming Settings
From the base SDR settings, very few changes are required for the best gaming experience. For the best input lag, it's best to enable Game Picture Mode, though responsiveness in this mode is only slightly better than when outside of it.

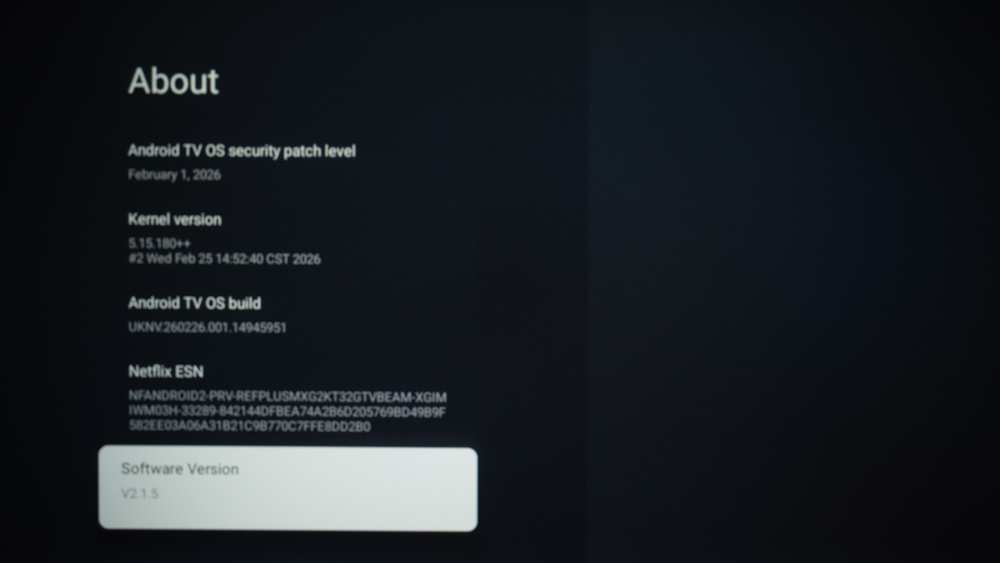

Firmware
The unit we bought and tested was calibrated on software version V2.1.5.

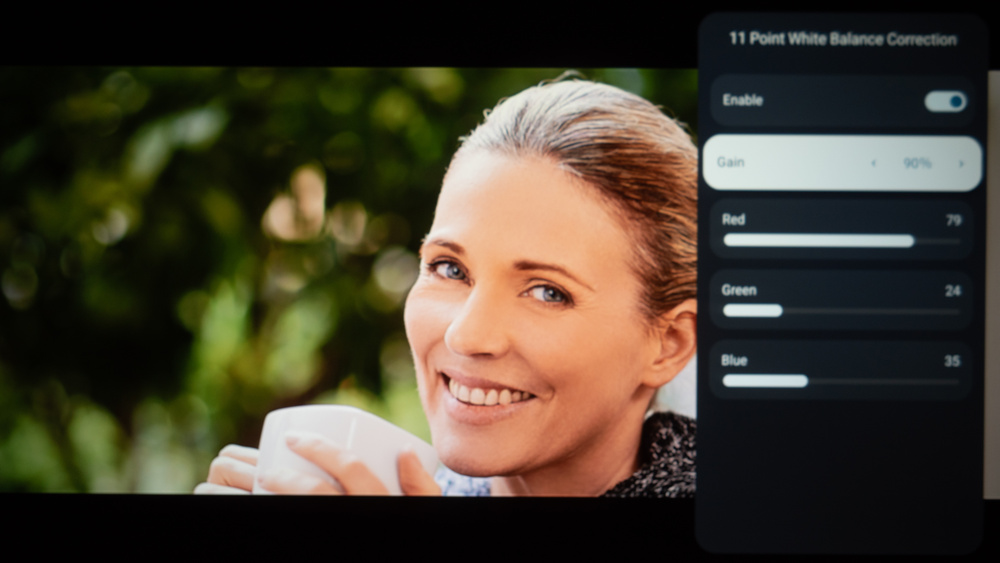

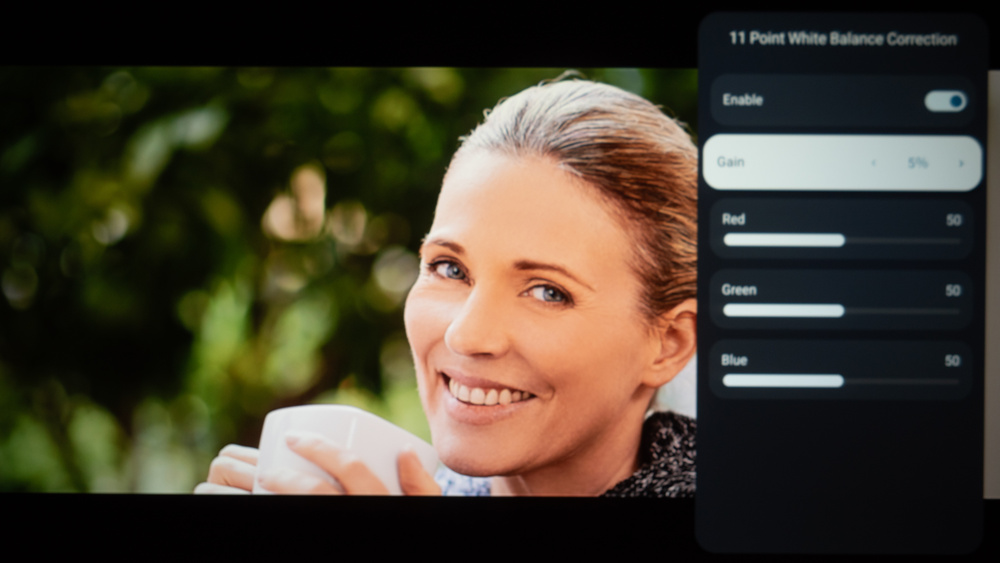

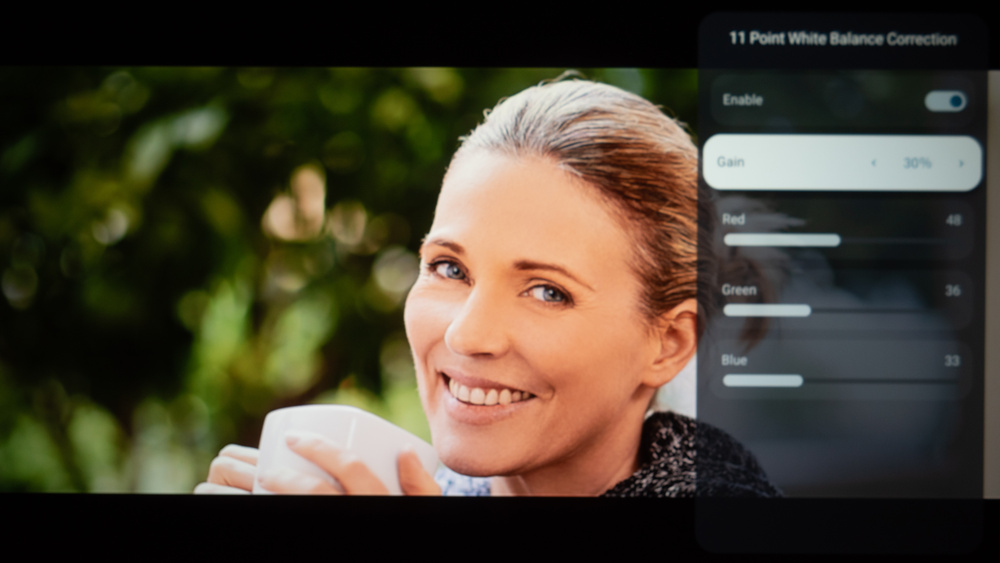

White Balance Settings
The following are the results of our unit's white balance and colorspace calibration. They're provided for reference and shouldn't be copied, as the calibration values vary per individual unit due to manufacturing tolerances. If you want to try them, you'll need to enter all the values shown, as all of them are active at the same time. If you end up with worse picture quality, simply reset them to the default values.
