TCL Q77K Calibration Settings

We used the following calibration settings to test the 75-inch TCL Q77K, but they're also valid for the 55, 65, 85, and 98-inch models. Our settings apply to most types of content, except for gaming or use as a PC monitor, which requires a few additional changes, listed below.

These settings are meant to provide a starting point; they're not meant to be copied 1:1. They provide the most accurate image in a moderately lit room, but you should adjust them to match your personal preferences and viewing conditions.

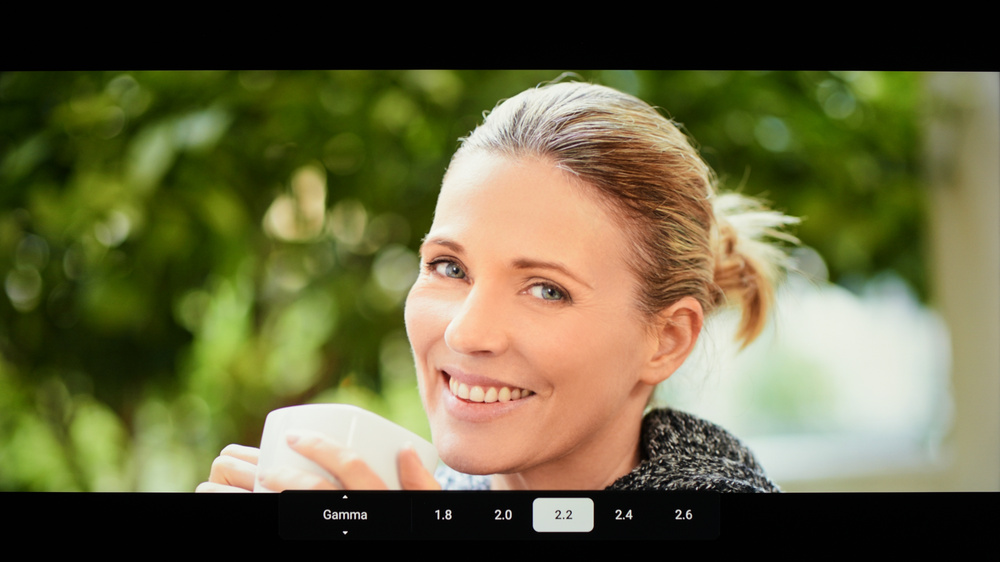

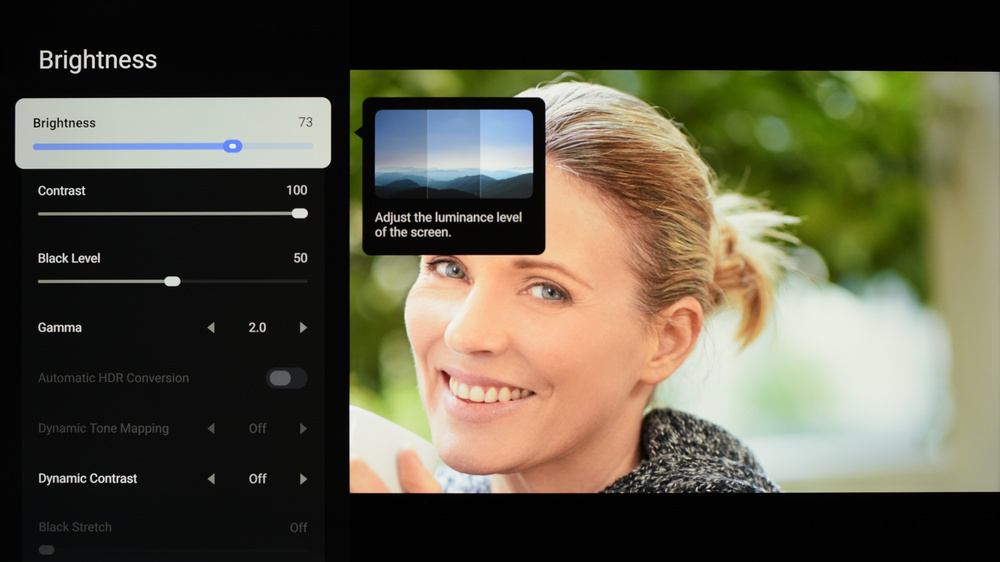

For SDR content, you can choose a few different preset picture modes. We used the 'FILMMAKER MODE' Picture Mode because it's the most accurate out of the box and allows for the most customization. A Brightness setting of '77' corresponds to about 200 nits on our unit, but you should adjust this setting to your specific viewing condition. A Gamma setting of 2.1 is closest to the SDR calibration target and requires the least amount of changes, but if you're not calibrating the TV, 2.2 is the better setting overall. Below are the settings we used for SDR. All other settings were either disabled or left off.

• Picture Mode: FILMMAKER MODE
• Brightness: 77 (200 nits)
• Gamma: 2.2
• Color Temperature: Warm 5
• Contrast: 100

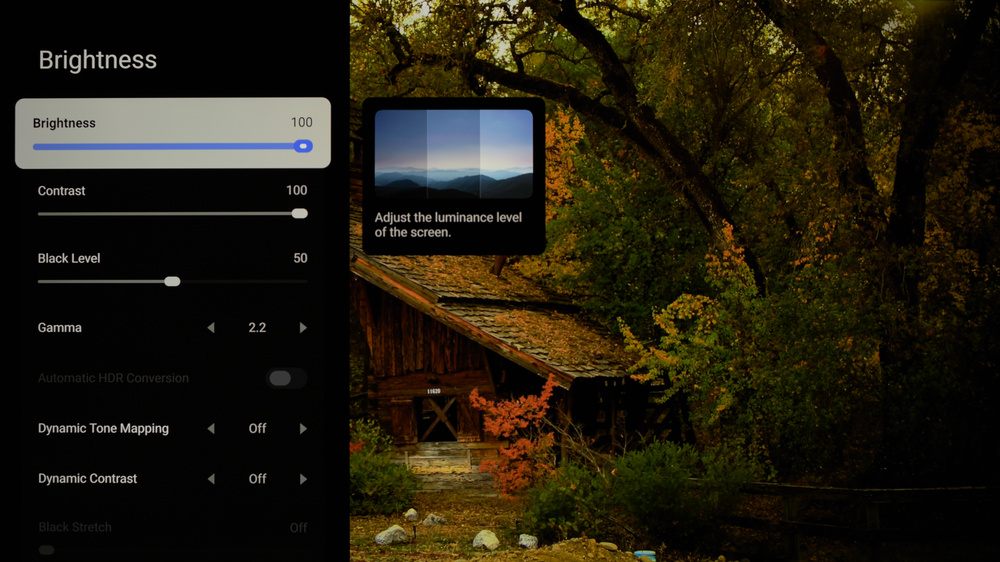

HDR is automatically enabled for native apps. When you start playing HDR content, a small HDR icon appears in the picture settings menu. Once you start playing HDR content, some of the settings change automatically. Below are the settings we used for HDR10. All other settings were either disabled or left off. If you're having any issues with HDR content, make sure HDMI Mode is set to 'HDMI 2.1' or 'Auto.'

• HDR Picture Mode: FILMMAKER MODE
• Brightness: 100
• Black Level: 50
• Dynamic Tone Mapping: Off
• Dynamic Contrast: Off
• Gamma: 2.2
• Color Temperature: Warm 5

The TV supports HDR10+ and Dolby Vision from native apps and external devices. As with normal HDR content, when you start playing HDR10+ or Dolby Vision content, some settings change automatically. Since we don't specifically test these formats, we don't have exact settings for them, but they should be the same as our HDR10 settings.

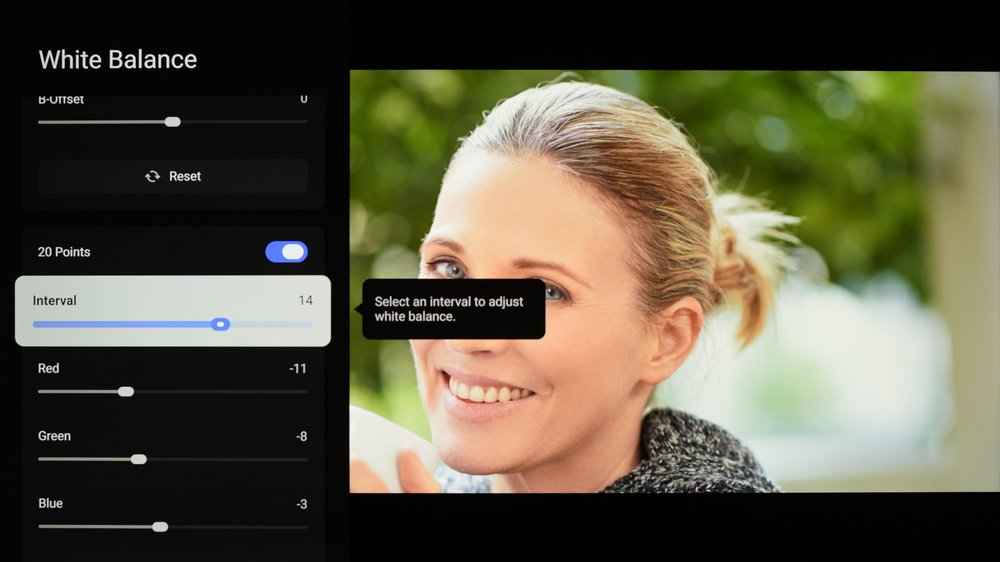

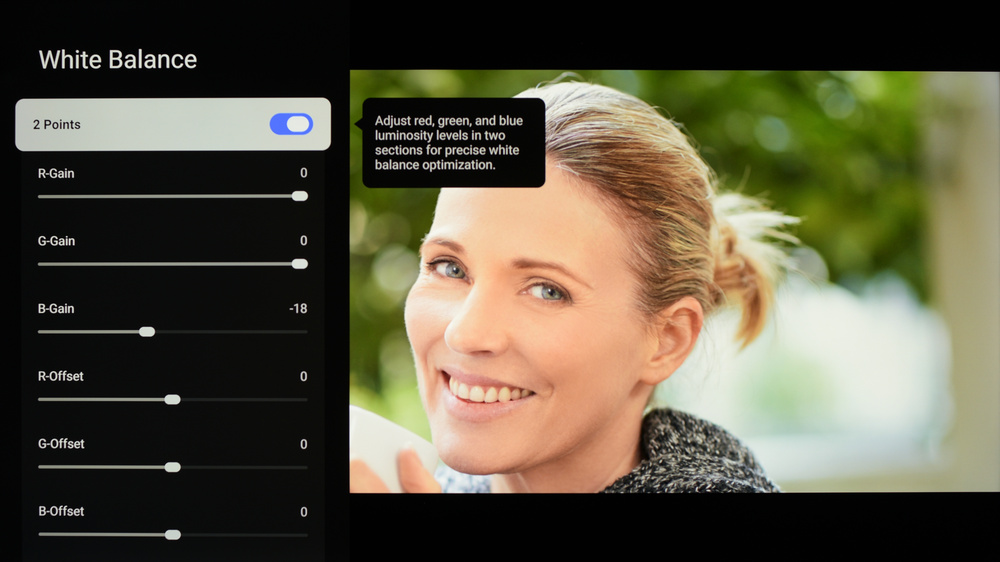

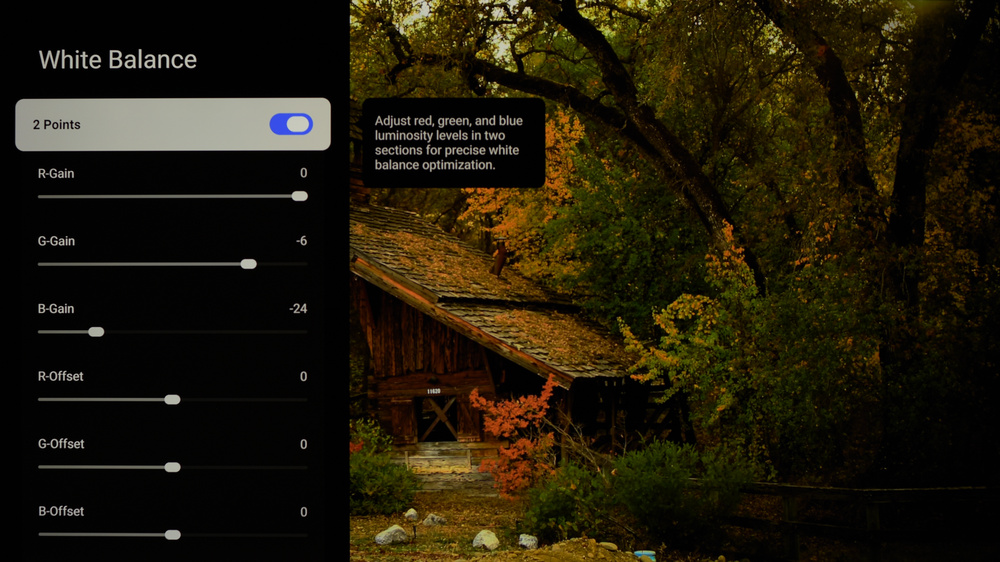

The following are the old results of calibrating the white balance of our unit to 6500K in HDR using the 2-point method. We don't publish the values we used for our new 20-point calibration.

They are provided for reference and shouldn't be copied as the calibration values vary per individual unit, even for the same model and size as the TV we reviewed, due to manufacturing tolerances. If you want to try them, you'll need to enter all values shown, as all of them are active at the same time. If you have worse picture quality, simply reset them to the default values.

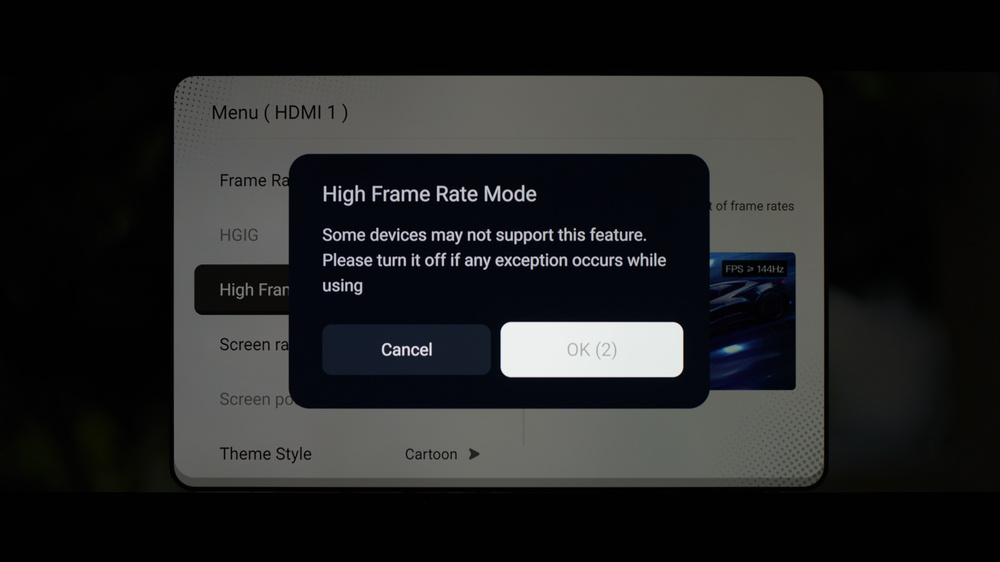

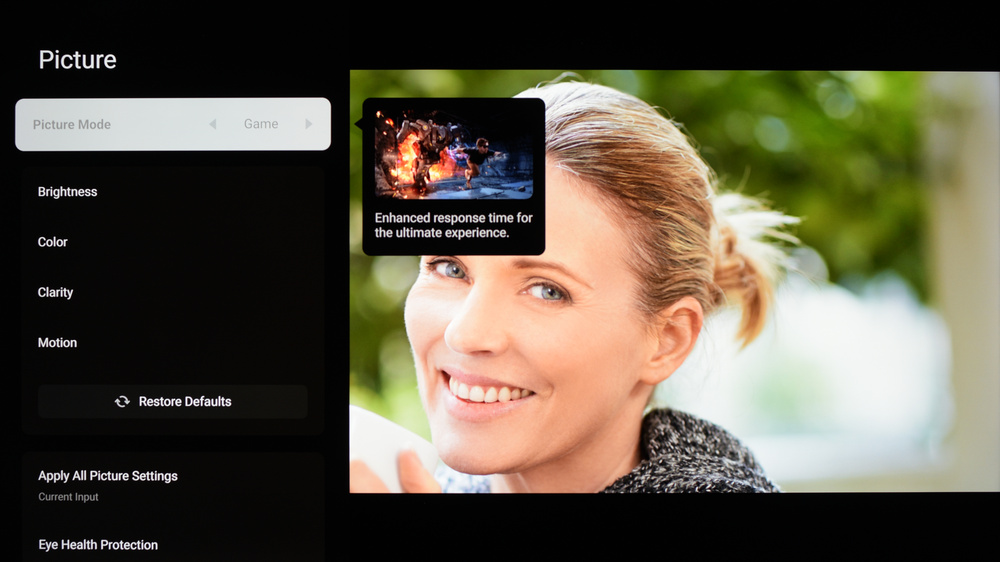

From the base SDR and HDR settings, very few changes are required for the best gaming experience. When you start gaming, it's best to switch to Game Mode to get the lowest input lag and use the recommended settings for SDR or HDR. This TV supports a variable refresh rate. As long as you're in Game Mode, it's automatically enabled. To enable the high frame rate feature, you have to enable High Frame Rate Mode.

For HDR gaming, it is important to make sure that HDMI Mode is set to 'HDMI 2.1' for the input you're using.

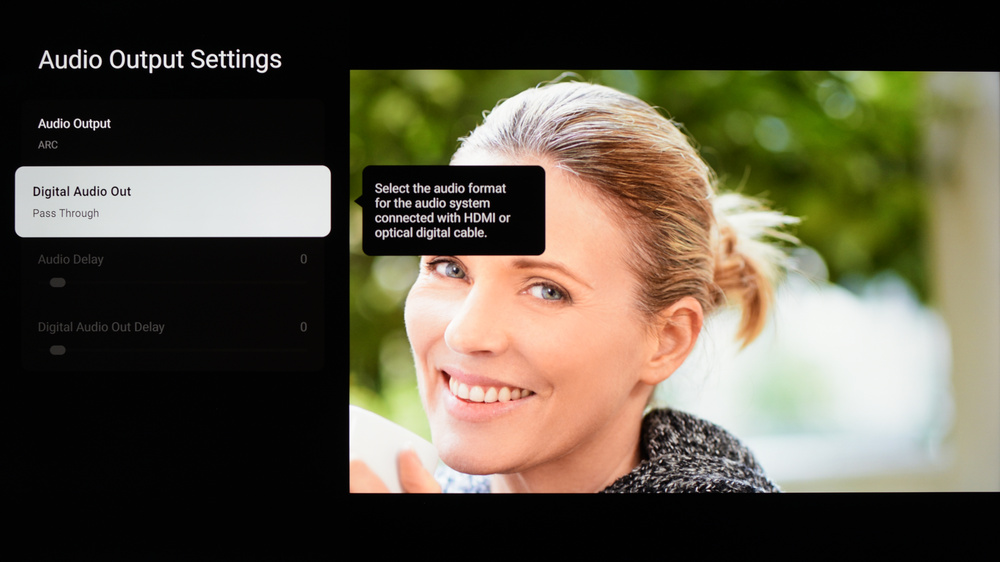

To make eARC work, set Audio Output to 'Auto' or 'ARC.' That setting is found in the Display & Sound section.

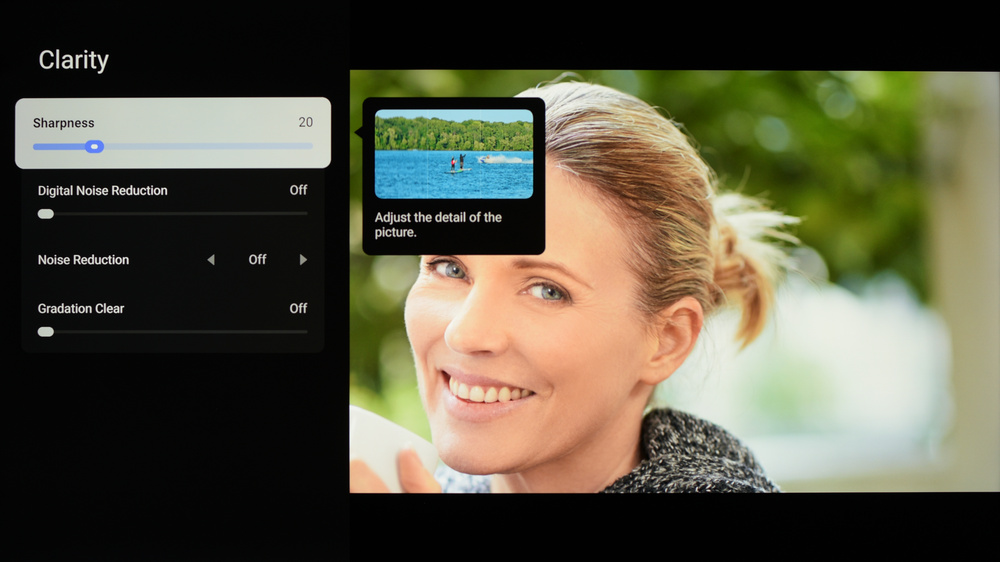

For our upscaling test, we set Sharpness to '20,' and it was set to '0' outside of that test. Sharpness processing was calibrated with no over-sharpening for low-resolution content.

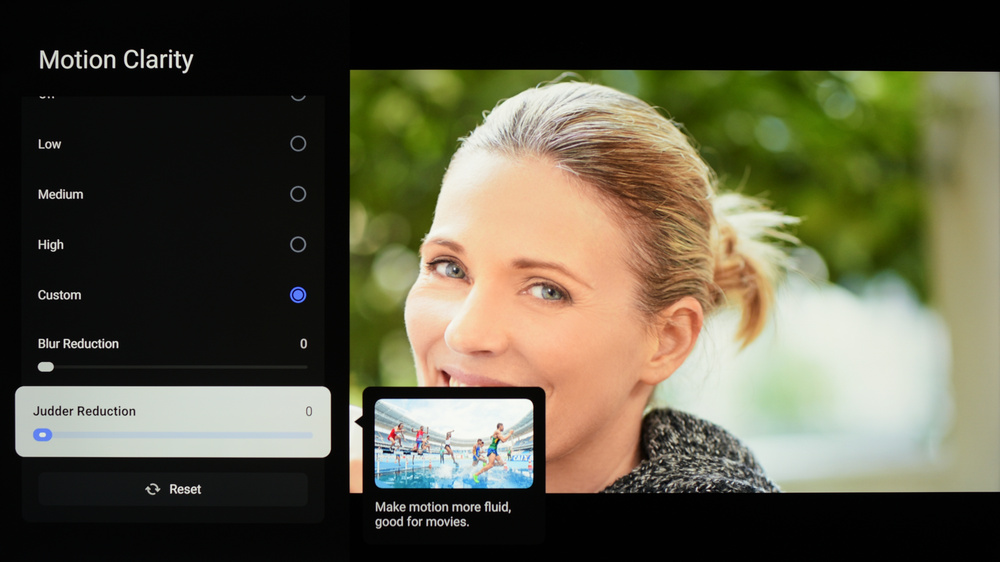

This TV automatically removes judder from 24p sources and from the internal apps. To remove judder from 60Hz sources without interpolation, enable the Motion Clarity setting and set both Blur Reduction and Judder Reduction to '0.'

For information on any other settings or features that fall outside of the scope of our testing, please refer to the quick start guide on the product's support page.
