Keychron K5 Max [K1 Max, K3 Max, etc.] vs Logitech G515 RAPID TKL

Which Keyboard Is Better?

Products

Keychron K5 Max [K1 Max, K3 Max, etc.]
Logitech G515 RAPID TKL

Tested using Methodology v1.3.1

Updated Jun 19, 2025 06:45 PM

SEE PRICE
Amazon.com

Tested using Methodology v1.4.2

Updated Nov 12, 2025 06:57 PM

SEE PRICE
BestBuy.com
  1. Recommended in 2 articles:
  2. Office
  3. Low-Profile

Our Verdict

Keychron K5 Max [K1 Max, K3 Max, etc.]

Logitech G515 RAPID TKL

The Keychron K5 Max and the Logitech G515 RAPID TKL are both low-profile mechanical keyboards. The Keychron is designed for general use, but delivers great latency performance. Unlike the Logitech, it offers wireless connectivity with multi-device pairing and uses lightweight software available as either a downloadable or web-based client. The Logitech, on the other hand, is focused primarily on gaming and provides slightly better overall performance. It features magnetic switches that enable adjustable actuation and Rapid Trigger functionality, which are useful in games where precise movement control is important. The Logitech also includes shine-through keycaps, a feature not found on the Keychron.

0 

Variants

  • K5 Max (Gray - 100%)
  • K7 Max (Gray - 65%)
  • K11 Max (Gray - 65% (Alice))
  • K3 Max (Gray - 75%)
  • K15 Max (Gray - 75% (Alice))
  • K1 Max (Gray - 80%)
  • K17 Max (Gray - 96%)
  • K13 Max (Gray - Numpad 80%)
  • G515 RAPID TKL (Black)
  • G515 RAPID TKL (White)

Check Price

Gray - 100%
K5 Max
Amazon.com
Black
G515 RAPID TKL
SEE PRICE
BestBuy.com
Gray - 65%
K7 Max
Amazon.com
White
G515 RAPID TKL
SEE PRICE
BestBuy.com
Gray - 65% (Alice)
K11 Max
Amazon.com

Gray - 75%
K3 Max
Amazon.com

Gray - 75% (Alice)
K15 Max
Amazon.com

Gray - 80%
K1 Max
SEE PRICE
Amazon.com

Gray - 96%
K17 Max
Amazon.com

Gray - Numpad 80%
K13 Max
Amazon.com

Read more

Main Differences for
Gaming

Threshold

0.10

Gaming


8.4
8.7

Backlight Clarity


4.0
8.0

Chord Split


7.4
8.8

Full Comparison

Design

Dimensions


Top Picture


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Top Picture
Compare High-Res

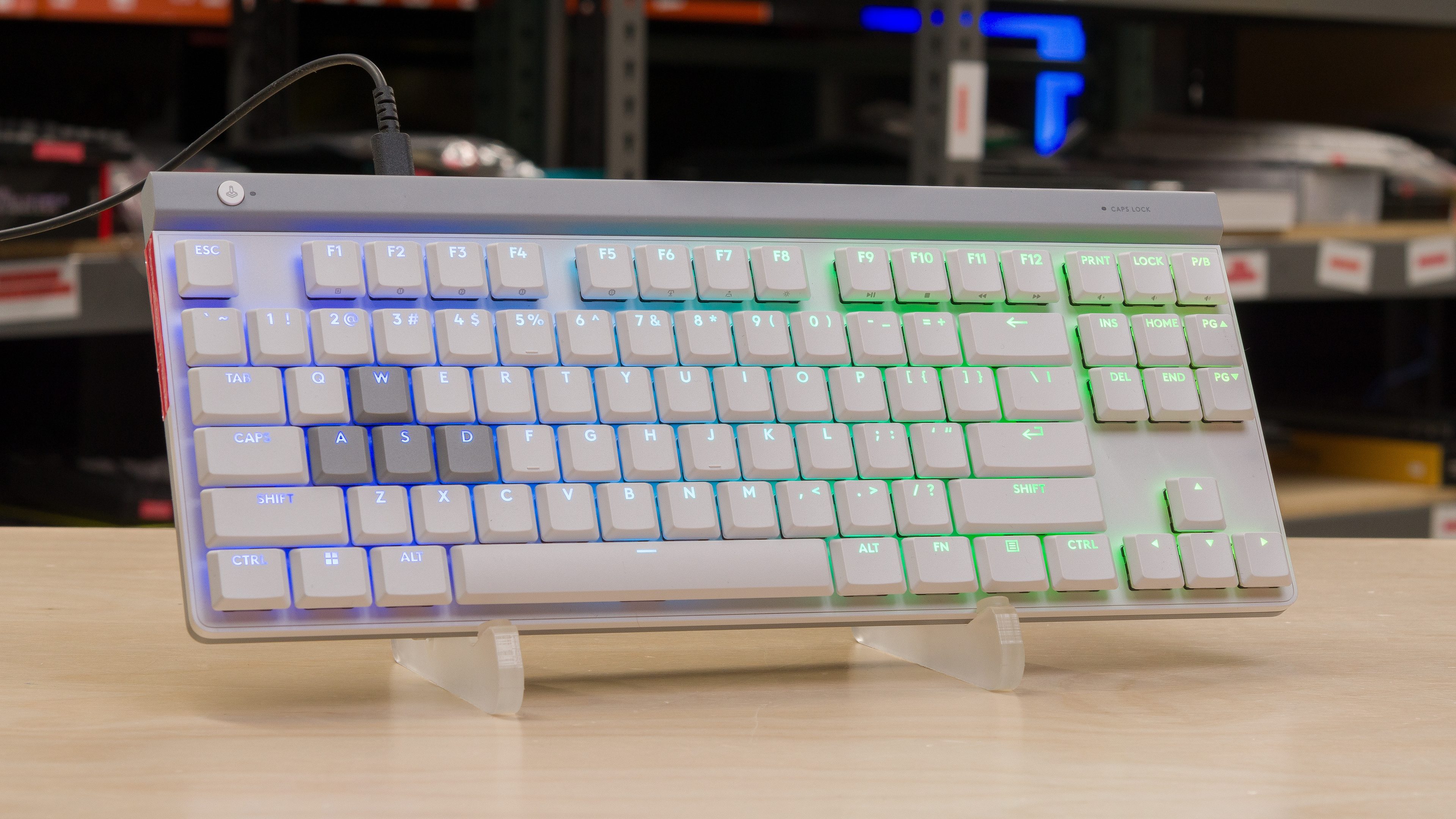

Logitech G515 RAPID TKL Top Picture

Size


Full-size (100%)
TenKeyLess (80%)

Height


0.9" (2.4 cm)
0.8" (2.1 cm)

Width

16.5" (42.0 cm)
14.0" (35.5 cm)

Depth


4.7" (12.0 cm)
5.7" (14.6 cm)

Depth With Wrist Rest


N/A
N/A

Weight


1.60 lbs (0.727 kg)
1.78 lbs (0.809 kg)
Show Text

Build Quality


8.5
8.0

Build Quality Close Up


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Build Quality Close Up
Compare High-Res
Logitech G515 RAPID TKL Build Quality Close Up

Keycap Material

PBT
PBT
Show Text

Ergonomics


7.0
7.0

Side Picture


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Side Picture
Compare High-Res
Logitech G515 RAPID TKL Side Picture

Curved/Angled


No
No

Split Keyboard


No
No

Key Alignment


Staggered
Staggered

Minimum Incline


3.3°
2.5°

Medium Incline


4.5°

Maximum Incline


6.6°

Home Row Height


20.9 mm (0.8")
22.6 mm (0.9")
Show Text

Hardware Customizability


4.4
6.0

Customizability Overview


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Customizability Overview
Compare High-Res
Logitech G515 RAPID TKL Customizability Overview

Replaceable Cherry Stabilizers


No
Yes

Stabilizer Fixation


Plate-Mounted
Plate-Mounted

Spacebar Stabilizer Size


6.25u
6.25u

Size Of Right Mod Keys


1.25u
1.25u

Hot-Swappable Switches


No
No

Switch Stem Shape


Low Profile Cherry MX Style
Low Profile Cherry MX Style

Mechanical Switch Compatibility


Soldered
No Mechanical Switch Pinout

Magnetic Switch Compatibility


Non-Standard Magnetic Switch

North-Facing Cherry MX Interference


Yes
No
Show Text

Backlight Features


10
10

Backlighting Picture


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Backlighting Picture
Compare High-Res
Logitech G515 RAPID TKL Backlighting Picture

Brightness Max


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Brightness Max
Compare High-Res
Logitech G515 RAPID TKL Brightness Max

Backlighting

Yes
Yes

Brightness Min


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Brightness Min
Compare High-Res
Logitech G515 RAPID TKL Brightness Min

RGB


Yes
Yes

Per-Key Backlighting


Yes
Yes

Effects


Yes
Yes

Software Controllable


Yes
Yes
Show Text

Backlight Clarity


4.0
8.0

White Shot


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] White Shot
Compare High-Res
Logitech G515 RAPID TKL White Shot
Show Text

Cable & Connector

Connectivity

Wireless
Wired

Detachable


Yes (Wired Mode and Charge)
Yes (Wired Only Keyboard)

Length

3.9 ft (1.2 m)
5.9 ft (1.8 m)

Connector (Keyboard side)


USB type-C
USB type-C
Show Text

Wireless Versatility


10
0.0

Bluetooth


Yes
No

Bluetooth Multi-Device Pairing


3
No

Proprietary Receiver


Yes
No

Battery Type


Rechargeable
No Batteries
Show Text

Macro Keys And Programming


6.7
4.0

Dedicated Macro Keys Count

4
0

Onboard Macro Programming


No
No

Macro Programming With Software


Yes
Yes
Show Text

Extra Features


Extra Features


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Extra Features
Compare High-Res
Logitech G515 RAPID TKL Extra Features

Media Keys


Non-Dedicated
Non-Dedicated

Trackpad / Trackball

No
No

Scroll Wheel


No
No

Control Knob


No
No

USB Passthrough


No
No

Numpad

Yes
No

Windows Key Lock


No
Yes

Lock Indicator

Caps Lock
Caps Lock
Show Text

In The Box

Bundle Picture


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Bundle Picture
Compare High-Res
Logitech G515 RAPID TKL Bundle Picture
Show Text
Typing Experience

Typing Quality


8.0
8.0

Key Spacing


19.0 mm (0.748")
19.0 mm (0.748")
Show Text

Typing Noise


9.4
8.4

Typing Sample

Average Loudness


41.3 dBA
48.6 dBA

High Pitch Clicks


No
No
Show Text

Keystrokes


Key Switch Actuation Graph

See details
See details

Operating Force


48 gf
35 gf

Actuation Force


48 gf
35 gf

Pre-Travel


1.8 mm
1.3 mm

Total Travel


2.9 mm
2.5 mm
Show Text

Adjustable Input Granularity


7.6

Input Linearity Graph

See details

Analog Output Graph

Logitech G515 RAPID TKL Analog Output Graph

Top Deadzone


0.12 mm

Bottom Deadzone


0.39 mm

Detection Ratio


80%

Minimum Step Depth


0.09 mm
Show Text

Switches


Wobble Video

Switch Name


Gateron Low-Profile MX 2.0 Mechanical Red
No Marketed Name

Switch Type


Mechanical
Magnetic

Feel


Linear
Linear

Output Type


No
Adjustable Actuation
Show Text
Performance

Single-Key Latency


9.1
9.2

Single-Key Latency Graph

See details
See details

Best Connection


2.9 ms
3.1 ms

Best Connection Std Dev

±0.5 ms
±0.3 ms

Wired


2.9 ms
3.1 ms

Receiver


4.4 ms
N/A

Bluetooth


9.7 ms
N/A

PCB (Estimated)


1.5 ms
N/A
Show Text

Multi-Key Latency


8.6
9.0

Latency Video

Multi-Key Latency Graph

See details
See details

Connection Evaluated

Receiver
Wired

Key Press


4.5 ms
3.0 ms

Key Release


8.7 ms
Show Text

Data Transmission


8.2
8.2

Multi-Key Raw USB


Compare High-Res
Keychron K5 Max [K1 Max, K3 Max, etc.] Multi-Key Raw USB
Compare High-Res
Logitech G515 RAPID TKL Multi-Key Raw USB

Connection Evaluated

Receiver
Wired

USB Polling Rate


1,000 Hz
1,000 Hz

Effective Update Rate


1,000 Hz
1,000 Hz

N-Key Rollover (NKRO)


Yes
Yes

Multiple Keys Per USB Report


No
No
Show Text

Chord Split


7.4
8.8

Chord Split Graph

See details
See details

4 Chord Split Delay


6.5 ms
3.0 ms

8 Chord Split Delay


17.6 ms
10.9 ms
Show Text
Software and Operating System

Configuration Software


Software Tour

Software Name

VIA
Logitech G HUB

Software Windows Compatible


Yes
Yes

Software macOS Compatible


Yes
Yes

Onboard Memory


Yes
Yes

Profiles


6+
6+
Show Text

Computer Compatibility


10
10

Windows


Fully Compatible
Fully Compatible

macOS


Fully Compatible
Fully Compatible

Linux


Fully Compatible
Fully Compatible

Media Key Compatibility


Windows, MacOS & Linux
Windows, MacOS & Linux
Show Text

Wireless Mobile Compatibility


10
0.0

Android


Fully Compatible
Not Compatible

iOS


Fully Compatible
Not Compatible

iPadOS


Fully Compatible
Not Compatible

Media Key Compatibility


Android, iPhone & iPad
Not Compatible
Show Text
