Sony X800G Calibration Settings

The video demonstrates the settings for the Sony X900F. It is accurate for most of the X800G settings as well, but some options may have changed slightly.
For additional settings information, please consult the Common Problems and How to Calibrate pages.

We used the following calibration settings to review the Sony 55" X800G (XBR55X800G), and we expect them to be valid for the 43" model (XBR43X800G), 49" model (XBR49X800G),65" model (XBR65X800G), and the 75" model (XBR75X800G).

These settings should apply to most types of content, except for gaming or use as a PC monitor, which require a few additional changes, listed below.

General Settings

Eco Settings

One of the first things we did was disable all of the Power Saving modes, as we don't want the TV to adjust the image during testing. From the Picture menu, we also disabled Auto picture mode, and Light Sensor, as we don't want the picture settings changing during calibration.

SDR

For SDR content, we recommend choosing the 'Custom' picture mode, as it is the most accurate one out of the box, and allows for the most customization. We recommend leaving the Contrast to '90,' Gamma at '0,' and the Black Level at '50.'

For our calibration, Black Adjust, and Adv. contrast enhancer were all disabled, but you should adjust these to your liking.

You should adjust the Brightness to your specific viewing conditions. Changing the brightness does not have any impact on the overall picture quality.

Under the 'Color' tab, we selected the 'Expert 1' Color Temperature, as it is closest to our calibration target of 6500 K. If you prefer a warmer or cooler image, you should adjust this setting to your preference.

Clarity

In the Clarity tab, we left Sharpness to the default value of '50,' which is the neutral setting. Reality Creation was left disabled, but you can enable it when watching lower resolution content, as it can help to improve the image quality. Random noise reduction, and Digital noise reduction were also left disabled, but they can help improve the image quality of low quality videos. We don't recommend leaving them enabled, as they can cause a loss of fine details in higher quality content.

HDR

HDR is automatically enabled for the native apps. When you start playing HDR content, a small HDR icon appears in the picture settings menu. Once you start playing HDR content, some of the settings change automatically, including the Brightness, which increases to 'Max'. We recommend choosing the 'Cinema Pro' Picture Mode, and leaving the other settings to their defaults in HDR.

For HDR to work from external devices, the Enhanced format option usually has to be enabled from the 'HDMI signal format' menu for the input you are using. Older devices may have compatibility issues if this option is left enabled, so it is recommended to only enable this setting for devices that require it.

How to Make HDR Brighter

If you find HDR content too dim, increase the Contrast and Gamma, and set Adv. contrast enhancer to 'High.'

Motion Settings

Sony TVs usually feature great, highly customizable motion features, and the X800G is no exception. Although we disable most motion enhancing functions for most of our tests, you should adjust these to whatever looks best for you. Some settings, like motion interpolation settings, may need to be adjusted depending on the specific content you are watching.

Motion Interpolation

Although we usually leave these settings disabled during testing, you should adjust the settings in the Motion tab to your liking, as different people prefer different levels of motion interpolation. If you want to enable motion interpolation, set Motionflow to 'Custom,' and adjust the Smoothness slider. Most of these settings will need to be adjusted depending on the specific content you are watching.

The Clearness slider adjusts the X800G's Black Frame Insertion (BFI) feature.

Judder Settings

The Sony X800G can only remove judder from true 24p sources, and does not require any additional settings to do so.

Gaming

From the base SDR and HDR settings, very few changes are required for a great gaming experience. When you start gaming, it is best to switch to the 'Game' picture mode, in order to get the lowest input lag, and use the recommended settings for SDR or HDR. For HDR gaming, it is important to make sure that HDMI Enhanced Format is enabled for the input you are using.

PC Gaming

Unlike TVs from most other brands, no special settings are required for PC use on the X800G. Just make sure you are using either the 'Game,' or 'Graphics' Picture Mode, and that HDMI Enhanced Format is enabled for the input you are using. Both of these modes offer excellent low input lag, and display Chroma 4:4:4 properly, so that text is displayed properly.

Note that in the 'Graphics' Picture Mode, the X800G uses nearest neighbor upscaling when sent a 1080p signal. Although some people prefer this, if you don't like the image, switch to 'Game' instead.

Other Settings

Screen Settings

When watching lower resolution content, the upscaling method may need to be adjusted depending on the specific format. The screen position and aspect ratio can be adjusted from the Screen page on each input.

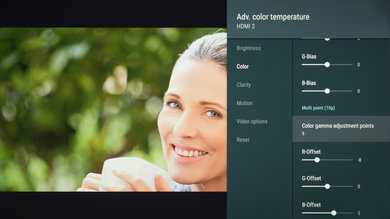

White Balance Settings

The following are the results of the white balance and colorspace calibration on our unit. They are provided for reference, and should not be copied as the calibration values vary per individual unit even for the same model and same size as the TV we reviewed due to manufacturing tolerances. If you want to try them you will need to enter all values shown, as all of them are active at the same time. If you end up with worse picture quality, simply reset them to the default values.
