Audio-Technica ATH-R70x  Headphones Review

Reviewed Jan 23, 2023 at 12:58pm
Writing modified Sep 10, 2024 at 03:36pm
Tested using Methodology v1.5
Audio-Technica ATH-R70x
8.2
Neutral Sound
3.7
Commute/Travel
5.3
Sports/Fitness
4.5
Office
4.5
Wireless Gaming
6.6
Wired Gaming
1.5
Phone Calls
 3
  1. Recommended in:
  2. Audio-Technica

The Audio-Technica ATH-R70x are this manufacturer's long-standing open-back option for audiophile headphones. They're lightweight, and the ear cups feature an aluminum honeycomb mesh housing to help create a natural and open passive soundstage. They come with some unique features like a 3D Wing Support head pad system designed to reduce headband discomfort, as well as a unique cable system that lets you use either cable in either driver while still getting the appropriate L/R channel. They have an impedance of 470 ohms and a sensitivity of 98 dB, so they need an amp to drive them. Although they're often compared to the Sennheiser HD 600 for their sound, they're worth considering if you're looking for lightweight mid-range headphones with an immersive sound.

Our Verdict

8.2
Neutral Sound

The Audio-Technica ATH-R70x are great for neutral sound. They have a warm sound profile that gives audio some extra fullness, as well as a well-balanced mid-range that accurately reproduces vocals and lead instruments. While their open-back design creates an open and natural-feeling soundstage, their small ear cups may not be the most comfortable if you have larger ears. Their high impedance also means you'll need a powerful-enough amp to get the most out of them.

Pros
  • Good passive soundstage.
Cons
  • Small ear cups, which may not be comfortable for users with large ears.
3.7
Commute/Travel

The Audio-Technica ATH-R70x aren't intended for commuting and travel. Their open-back design lets in noise from engines and other commuters. They also leak a lot of audio, can't fold up into a more compact shape, and their carrying pouch doesn't protect against damage while on the go. They also need a powerful amp to deliver good sound.

Pros
  • Good passive soundstage.
Cons
  • Bad noise isolation.
  • Leakage at high volumes.
  • Small ear cups, which may not be comfortable for users with large ears.
5.3
Sports/Fitness

The Audio-Technica ATH-R70x aren't recommended for sports. They won't block out any noise in the gym and are unstable on your head during moderate exercise. Additionally, their cable can get caught on exercise equipment and damage the headphones. They need an amp to get the most out of them too, which adds an extra, bulky component to worry about at the gym.

Pros
  • Good passive soundstage.
Cons
  • Bad noise isolation.
  • Leakage at high volumes.
  • Small ear cups, which may not be comfortable for users with large ears.
4.5
Office

The Audio-Technica ATH-R70x are bad for the office. They don't have a mic for calls, don't block out ambient noise and leak audio, meaning you'll hear people talking around you, and people around you will hear your audio. However, if you work from home or have your own office, they may be worth considering if you value sound quality.

Pros
  • Good passive soundstage.
Cons
  • Bad noise isolation.
  • Leakage at high volumes.
  • No mic.
  • Small ear cups, which may not be comfortable for users with large ears.
4.5
Wireless Gaming

You can't use the Audio-Technica R70x wirelessly, and therefore, you can't use them for wireless gaming.

6.6
Wired Gaming

The Audio-Technica ATH-R70x are okay for wired gaming if you don't need a built-in microphone. Their open-back design creates an open and immersive soundstage with accurately-placed effects like footsteps in the stereo image. They're lacking a rumbly, thumpy low-bass, but on the upside, sound effects like footsteps and explosions still sound warm.

Pros
  • Good passive soundstage.
  • Consistent audio delivery.
Cons
  • No mic.
  • Small ear cups, which may not be comfortable for users with large ears.
1.5
Phone Calls

The Audio-Technica ATH-R70x aren't suited for phone calls as they have no microphone. If you use an external mic, they'll still leak a lot of call audio, meaning people around you will hear your conversation.

  • 8.2
    Neutral Sound
  • 3.7
    Commute/Travel
  • 5.3
    Sports/Fitness
  • 4.5
    Office
  • 4.5
    Wireless Gaming
  • 6.6
    Wired Gaming
  • 1.5
    Phone Calls
  • Changelog

    1.  Updated Sep 10, 2024: The introduction was edited to give the correct sensitivity rating.
    2.  Updated Jan 23, 2023: Review published.
    3.  Updated Jan 13, 2023: Early access published.
    4.  Updated Jan 09, 2023: Our testers have started testing this product.

    Check Price

    BlackATH-R70x
    SEE PRICE
    Amazon.com
    BlackATH-R70x
    SEE PRICE
    Walmart.com
    BlackATH-R70x
    B&H
    BlackATH-R70x
    BestBuy.com

    Differences Between Sizes And Variants

    The Audio-Technica ATH-R70x come in one color variant: 'Black'; you can see our unit's label here. If you come across another variant of these headphones, please let us know in the discussion section below.

    Popular Headphones Comparisons

    Released in 2015, the Audio-Technica ATH-R70x have established themselves as one of the most popular mid-range open-back audiophile headphones on the market. They're unique amid Audio-Technica's lineup, as most of their headphones, like the Audio-Technica ATH-M50x, are closed-back and meant for casual or studio use. They feature an immersive passive soundstage and a 3D Wing Support system that eliminates discomfort on the top of the head. However, the ATH-R70x are much smaller than traditional audiophile headphones, like the Audio-Technica ATH-AD700X 2013, and may not be comfortable if you have larger ears. They still deliver more bass and are more comfortable than other mid-range audiophile headphones, like the Sennheiser HD 650.

    If you're looking for more headphones like these, check out our lists for the best over-ear headphones, the best open-back headphones, and the best audiophile headphones.

    Sennheiser HD 600

    The Audio-Technica ATH-R70x and the Sennheiser HD 600 are very similar-performing audiophile headphones. While the Audio-Technica have a lower bass extension, the Sennheiser have more accurate treble delivery and a flatter frequency response. However, they have a higher clamping force than the Audio-Technica, making them less comfortable to wear for long listening sessions. Their passive soundstage also isn't as wide and natural-feeling as the Audio-Technica.

    AKG K712 PRO

    The Audio-Technica ATH-R70x are slightly better for neutral sound than the AKG K712 PRO. the Audio-Technica have more bass overall and a more neutral midrange, resulting in a warm mix with clear and present lead instruments and vocals, which some users may prefer. The AKG, on the other hand, have a better-balanced treble range, so vocals and sibilants will sound crisp and detailed. However, their passive soundstage doesn't feel as natural and open as the Audio-Technica.

    Sennheiser HD 560S

    The Sennheiser HD 560S are better audiophile headphones than the Audio-Technica ATH-R70x. Although both open-backed headphones are comfortable to wear, the Sennheiser are slightly more stable with more space to fit your ears. That said, they're both broadly similar-sounding, so you may prefer the more conventional headband design of the Sennheiser cans.

    Audio-Technica ATH-M50x

    The Audio-Technica ATH-M50x and the Audio-Technica ATH-R70x are different kinds of audiophile headphones, and your preference for open or closed-back designs will determine which is best suited for your needs. The closed-back ATH-M50x have more bass overall, which will make EDM and hip-hop sound thumpier and more full. Meanwhile, the ATH-R70x interact more with your pinna, which is indicative of a more spacious sound. However, the ATH-M50x block out much more noise and leak a lot less audio, making these more suitable for podcasts or casual listening in noisy spaces.

    Overhauling Our Audio Measurements And A New Multi-Curve Graphing Tool

    We've upgraded our Headphones Test Bench to 2.0! This update brings several key changes to our tests and usages, making it easier than ever to interpret our sound results based on your personal preferences. You'll also find a brand-new interactive graph tool featuring multiple targets (including our own!) for you to explore and compare.

    For a full breakdown, check out our changelog, which includes detailed commentary from our test designer explaining the rationale behind our update.

    We'd also love to hear your thoughts: your feedback helps us keep improving, so join us in the comments!

    Test Results

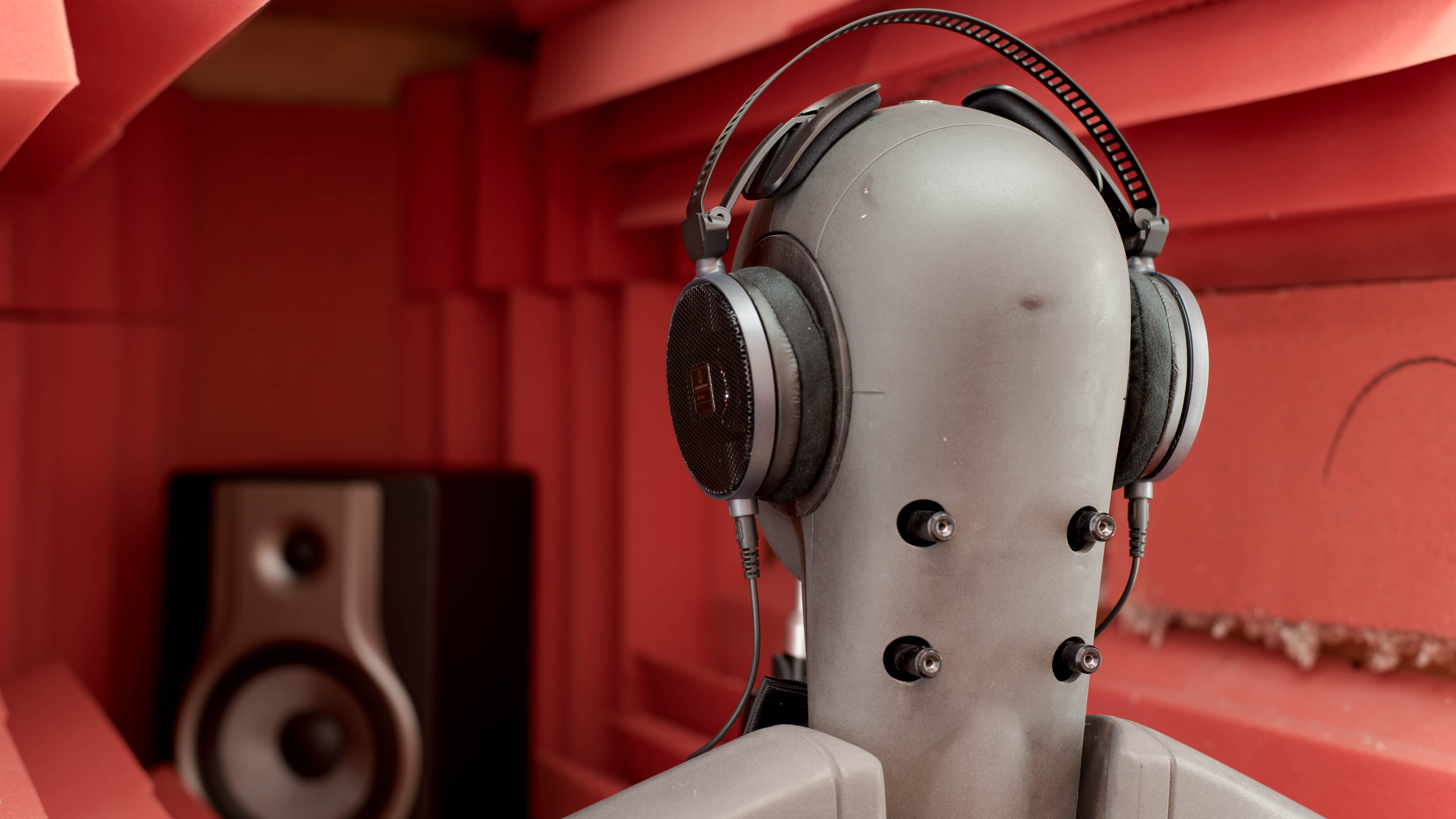

    perceptual testing image
    Sort:
    RATINGS
    Category:
    All
    Design
    Style
    TypeOver-ear
    EnclosureOpen-Back
    WirelessNo
    TransducerDynamic

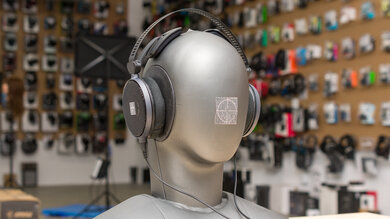

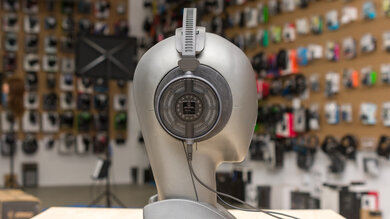

    These are open-back headphones with a unique and lightweight all-black design. Rather than a standard headband, they come with Audio-Technica's 3D Wing Support system, which are two spring-loaded mesh pads that rest on each side of your head and adjust automatically to its shape. The front of each ear cup is covered in a black honeycomb-shaped aluminum mesh that features a small manufacturer's logo in the center.

    8.0
    Comfort
    Weight0.47 lbs
    Clamping Force
    0.6 lbs

    These headphones are very comfortable. They're incredibly lightweight and won't put pressure on your head during long listening sessions. Their 3D Wing Support system rests comfortably on either side of the top of your head and avoids any pressure on the top of your head. However, support can change depending on your hair type. If you have thinner hair or hair with lots of volume, you may find them difficult to adjust or rest comfortably on your head. Additionally, if you have large ears, you may feel some discomfort, as the ear cups are significantly smaller and shallower than earcups on other audiophile headphones, like Drop + Sennheiser HD 8XX. Your ears may feel cramped and pressed up against the drivers.

    0.0
    Controls
    OS Compatibility
    No Controls
    Ease Of UseNo Controls
    FeedbackNo Controls
    Call/Music ControlNo
    Volume ControlNo
    Microphone ControlNo
    Channel Mixing
    No
    Noise Cancelling ControlNo
    Talk-Through
    No
    Additional ControlsNo
    5.2
    Portability
    L8.7" (22.0 cm)
    W7.5" (19.0 cm)
    H3.5" (9.0 cm)
    Volume236.22 in³ (3,871.00 cm³)
    Transmitter RequiredNo

    These headphones have poor portability. They're over-ear audiophile headphones and aren't designed to be taken on the go. They don't fold into a more compact design, and while they come with a carrying pouch, it's only meant to protect the headphones from dust.

    5.0

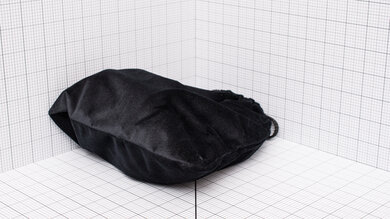

    Case
    TypePouch
    LN/A
    WN/A
    HN/A
    VolumeN/A

    These headphones come with a velvet pouch. It won't protect the headphones against damage during travel but can come in handy for storage.

    7.0
    Build Quality

    These headphones have decent build quality. They're primarily made from aluminum and a carbon composite resin, which makes them feel sturdier than their minimalist design may suggest. However, the plastic used in the ear cup connectors and the Wing Support hinges feels flimsy and gives the impression that they could break after frequent use. The ear cup's hinges also have a short range of movement, and some users have reported them breaking during a short fall. Our model's ear pads are also slightly different sizes, which affects their overall fit and seal.

    7.0
    Stability

    These headphones are decently stable. They'll stay on your head during casual seated listening but will fall off with moderate movement, making these less than ideal for habitual headbangers. The Wing Support system also offers less stability than a traditional headband, so they move around a little with minor head movements.

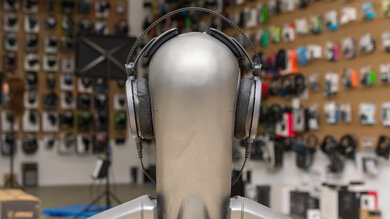

    Headshots 1
    Headshots 2
    Top
    In The Box

    • Audio-Technica ATH-R70x headphones
    • Detachable 1/8" to 1/16" audio cable
    • 1/4" to 1/8" adapter
    • Legal information pamphlet
    • Purchase registration card
    • Quick start manual
    Sound
    Sound Profile
    See details on graph tool
    Bass Amount
    -3.57 dB
    Treble Amount
    -2.74 dB

    These headphones have a fairly warm sound profile. Like most open-back headphones, they lack a lot of low-bass, which will turn off fans of heavier EDM or trap music, but they still have enough high-bass for audio to sound full-bodied. Vocals and instruments also sound very accurate and natural, making them a solid choice for genres like jazz and folk. That said, the dip in the treble range can hurt their detail while sibilants are dulled.

    8.2
    Frequency Response Consistency
    See details on graph tool
    See details on graph tool
    Avg. Std. Deviation
    0.36 dB

    These headphones have great frequency response consistency. There are minor deviations in bass and treble delivery due to fit, seal, and positioning. Our unit also has slightly different-sized L/R ear pads, which impact the headphones' placement on-head. However, once you achieve a good fit, you'll experience more consistent audio delivery.

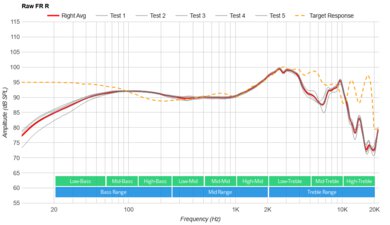

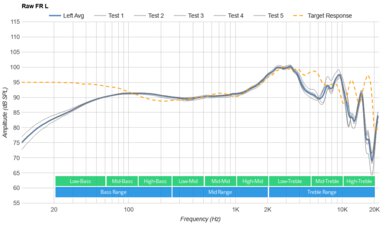

    Raw Frequency Response
    See details on graph tool
    See details on graph tool
    7.4
    Bass Accuracy
    See details on graph tool
    Std. Err.
    3.51 dB
    Low-Frequency Extension
    69.24 Hz
    Low-Bass
    -6.94 dB
    Mid-Bass
    -1.14 dB
    High-Bass
    1.74 dB

    These headphones have decent bass accuracy. Like most open-back headphones, they have underemphasized low-bass and lack the thump and rumble found in EDM and hip-hop music. However, the bump in high-bass helps balance out the range with a touch of extra warmth and boom.

    9.5

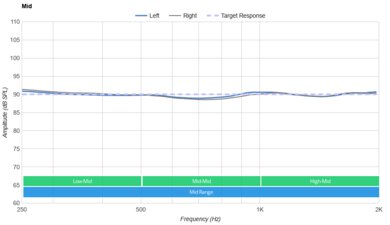

    Mid Accuracy
    See details on graph tool
    Std. Err.
    0.61 dB
    Low-Mid
    0.26 dB
    Mid-Mid
    -0.66 dB
    High-Mid
    0.07 dB

    These headphones have outstanding mid accuracy. The entire range is even and neutral, so if you're using Donald Fagen's song I.G.Y. (What a Beautiful World) as a reference track, you'll hear the horn section and backing vocals in the chorus clear and present in the mix.

    7.3

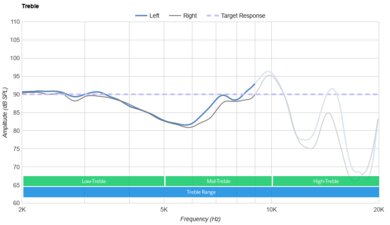

    Treble Accuracy
    See details on graph tool
    Std. Err.
    4.07 dB
    Low-Treble
    -1.43 dB
    Mid-Treble
    -3.22 dB
    High-Treble
    -10.46 dB

    The Audio-Technica R70x have decent treble accuracy. Vocals and instruments are veiled and lacking in detail. Sibilants, like cymbals, sound dull and lispy, which in turn contributes to the upper range feeling veiled overall.

    7.9

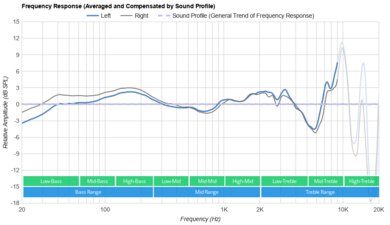

    Peaks/Dips
    See details on graph tool
    Peaks
    1.36 dB
    Dips
    1.01 dB

    Their peaks and dips performance is very good. There's some mismatch between the L/R drivers throughout the bass range, resulting in the right driver producing a little more thump, punch, and boom than the left. However, this may be due to our unit's L/R ear cup padding, which causes slight deviations in bass delivery. That said, the rest of the response is well-matched. A peak in the high-bass adds warmth to their sound, while a peak in the high-mid makes lead instruments sound a little harsh. Sharp peaks and dips in the treble range make sibilants, vocals, and instruments sound bright, then veiled.

    8.3

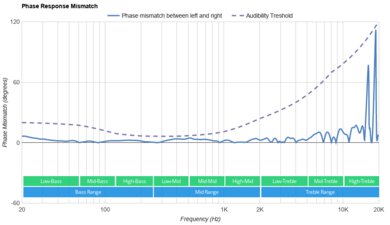

    Imaging
    See details on graph tool
    See details on graph tool
    Weighted Group Delay
    0.19
    Weighted Phase Mismatch
    3.55
    Weighted Amplitude Mismatch
    1.45
    Weighted Frequency Mismatch
    2.05

    These headphones have great imaging performance. This manufacturer is known for having good ergonomics and quality control. The entire group delay falls below the audibility threshold, ensuring tight bass and transparent treble reproduction. The L/R drivers are also very well-matched in phase, amplitude, and frequency response, which is important to accurately place objects like voices and instruments in the stereo image. That said, imaging can vary between units.

    8.0
    Passive Soundstage
    See details on graph tool
    PRTF Accuracy (Std. Dev.)
    2.69 dB
    PRTF Size (Avg.)
    3.24 dB
    PRTF Distance
    13.98 dB
    Openness
    9.6
    Acoustic Space Excitation
    8.0

    These headphones have an impressive passive soundstage. Their open-back design lets in ambient sound to mix with your audio and create a wider, more natural-feeling soundstage. The soundstage also feels very spacious and more open than similar audiophile headphones, like the Sennheiser HD 600. Audio seems like it's coming from speakers placed in the room around you, as opposed to earbuds which tend to make audio feel like it's coming from within your head.

    0.0
    Virtual Soundstage
    Head Modeling
    No
    Speaker Modeling
    No
    Room Ambience
    No
    Head Tracking
    No
    Virtual Surround
    No App
    8.1
    Weighted Harmonic Distortion
    See details on graph tool
    WHD @ 90
    0.214
    WHD @ 100
    0.093

    These headphones have great weighted harmonic distribution performance. Most of the range falls within acceptable limits, which results in clean and pure audio reproduction. There's a small peak in the low to mid-treble, but it won't be very noticeable with real-life content.

    Test Settings
    Firmware
    No Firmware
    Power
    Passive
    Connection
    Wired
    Codec
    PCM, 24-bit, 48kHz
    EQ
    No EQ
    ANC
    No ANC
    Tip/Pad
    Default
    Microphone
    No Microphone

    These are the settings used to test the Audio-Technica ATH-R70x. The results are only valid when used in this configuration.

    Isolation
    1.0
    Noise Isolation
    See details on graph tool
    Isolation Audio
    Overall Attenuation
    -2.25 dB
    Noise CancellingNo
    Bass
    0.13 dB
    Mid
    0.86 dB
    Treble
    -7.52 dB

    These headphones have a very bad noise isolation performance. However, this is normal as they're open-back audiophile headphones and are designed to let ambient sound mix in with the headphones' audio for a more immersive soundstage. It's best to use these headphones in a quiet room away from loud noise sources to better hear your audio.

    2.7
    Leakage
    See details on graph tool
    Leakage Audio
    Overall Leakage @ 1ft
    59.05 dB

    These open-back headphones have very bad leakage performance. They leak a lot of audio from the high-mid and low-treble range and aren't ideal for use at the office or anywhere where leaking audio can bother those around you.

    Microphone
    Microphone Style
    Integrated
    No
    In-Line
    No
    Boom
    No
    Detachable Boom
    No
    MicNo
    0.0
    Recording Quality
    Recorded Speech
    N/A
    LFE
    N/A
    FR Std. Dev.
    N/A
    HFE
    N/A
    Weighted THD
    N/A
    Gain
    N/A
    0.0
    Noise Handling
    SpNR
    N/A
    Noise Gate
    No
    Speech + Pink Noise Handling
    N/A
    Speech + Pink Noise Audio SampleN/A
    Speech + Subway Noise Handling
    N/A
    Speech + Subway Noise Audio SampleN/A
    Active Features
    0.0
    Battery
    Battery Type
    No Battery
    Continuous Battery Life
    N/A
    Additional Charges
    N/A
    Total Battery Life
    N/A
    Charge Time
    N/A
    Power-Saving Feature
    No
    Audio While Charging
    No
    Passive Playback
    Passive Headphone
    Charging PortNone
    0.0
    App Support
    App NameNo App
    iOSNo
    AndroidNo
    macOSNo
    WindowsNo
    Equalizer
    No
    ANC Control
    No
    Mic ControlNo
    Room Effects
    No
    Playback Control
    No
    Button MappingNo
    Surround Support
    No
    Connectivity
    0.0
    Bluetooth
    Bluetooth Version
    No Bluetooth
    Multi-Device Pairing
    No
    NFC Pairing
    No
    Line Of Sight Range
    N/A
    PC Latency (SBC)
    N/A
    PC Latency (aptX)
    N/A
    PC Latency (aptX HD)
    N/A
    PC Latency (aptX-LL)
    N/A
    iOS Latency
    N/A
    Android Latency
    N/A
    0.0
    Non-Bluetooth Wireless
    Non-BT Line Of Sight Range
    N/A
    Non-BT Latency
    N/A
    9.5
    Wired
    Analog Audio
    Yes
    USB Audio
    No
    DetachableYes
    Length10.24 ft (3.12 m)
    Connection
    1/8" TRS
    Analog/USB Audio Latency
    0 ms

    These headphones come with a detachable 1/8" to 1/16" audio cable. In a unique design from other audiophile headphones, both 1/16" L/R connectors automatically detect which ear cup they're in, ensuring proper stereo orientation each time you plug them in. They also come with a 1/8" to 1/4" TRS adapter so that you can connect them to your audio interface.

    PC Compatibility
    Analog
    Audio Only
    Wired USB
    No
    Non-BT Wireless
    No

    These headphones don't have a mic and only support audio when connected via analog to your PC.

    PlayStation Compatibility
    PS4 Analog
    Audio Only
    PS4 Wired USB
    No
    PS4 Non-BT Wireless
    No
    PS5 Analog
    Audio Only
    PS5 Wired USB
    No
    PS5 Non-BT Wireless
    No

    These headphones only support audio when connected to your PS4 or PS5's controller via analog.

    Xbox Compatibility
    Xbox One Analog
    Audio Only
    Xbox One Wired USB
    No
    Xbox One Non-BT Wireless
    No
    Xbox Series X|S Analog
    Audio Only
    Xbox Series X|S Wired USB
    No
    Xbox Series X|S Non-BT Wireless
    No

    These headphones don't have a mic. You can connect them to your Xbox console by plugging their 1/8" TRS cable into your controller's AUX port.

    0.0
    Base/Dock
    Type
    No Base/Dock
    USB Input
    No
    Line In
    No
    Line Out
    No
    Optical Input
    No
    RCA Input
    No
    Dock Charging
    No
    Power Supply
    No Base/Dock
