LG E8 OLED TV Calibration Settings

The video demonstrates the settings for the LG C8 and the LG B8. It is accurate for almost all of the E8 settings as well.

For additional settings information, please consult the Common Problems and How to Calibrate pages.

We used the following calibration settings to review the LG 55" E8 (OLED55E8PUA), and we expect them to be valid for the 65" model (OLED65E8PUA) as well. These settings should apply to most types of content except for gaming, which requires a few additional settings.

The first thing we did was change Energy Saving to 'Off' since we did not want the screen brightness to change automatically depending on the room lighting.

LG E8 Calibration Settings 4

In the Aspect Ratio Settings tab, we selected the '16:9' aspect ratio to match our content. This way the screen will automatically adjust to our HDMI input without needing to change the Overscan setting from the source output settings.

LG E8 Calibration Settings 3

The ISF Expert (Dark Room) picture mode was selected since it most closely matched our calibration goals.

LG E8 Calibration Settings 12

In the Picture Mode Settings, we set the OLED Light to '19', since that gave us the 100 nits we calibrated for a dark room. This setting can be changed depending on your viewing environment without affecting picture quality. Most people will prefer setting OLED Light to a higher level, as '19' is low for most rooms. Contrast was set to '90' since it gave us the best contrast for calibration without clipping any of the bright whites. We left Brightness set to '50', the default value and left Sharpness at '0' since we don't want to add any sharpness. When in PC Mode, Sharpness should be set to '20' for no added sharpness or softening. Color was left at 50 and Tint at '0', since they were the most accurate settings for both.

LG E8 Calibration Settings 13

LG E8 Calibration Settings 14

In the Expert Controls settings page, we set Dynamic contrast and Super Resolution to 'Off', since we did not want to add any image processing. We set the Color Gamut to 'Auto' since the TV will choose the best setting automatically to match the source format. Color Filter was left to 'Off' since we did not need this function (this feature is useful if you want to calibrate your display without any measurement equipment). We set the Gamma to '2.2' as it helped to reach our calibration goal and because it is the standard for most TV shows and movies. If you find that you are losing details in dark scenes (blacks appear crushed), you can change this setting to your preference. A setting of '1.9' is a good starting point if '2.2' doesn't work for you.

LG E8 Calibration Settings 16

LG E8 Calibration Settings 20

In the White Balance settings, we selected the 'Warm2' from the Color Temperature settings since it was the Color Temperature the closest to our calibration goal. If you find the image too warm or yellow, then you should choose a cooler color temperature to suit your preference.

LG E8 Calibration Settings 21

In the Picture Options menu, we set Noise Reduction and MPEG Noise Reduction to 'Off', but you can enable these features if you are watching older low-resolution content, as it may help reduce visual noise and compression artifacts. We set the Black Level to 'Low' to match our source Output Dynamic Range. If you are not sure if you have the good setting, when set wrong, blacks will look grayish instead of really deep blacks. We left Motion Eye Care disabled since we did not want the TV to change the brightness of the TV automatically depending on the displayed scene. Real Cinema was left to 'On', as this will help 24p movies will be displayed at the correct cadence and should not affect negatively any other content (60p/60i). TruMotion setting was left 'Off', since we did not want to add any motion interpolation (soap opera effect). If you wish to activate the BFI feature to introduce flicker and make the image crisper, go to TruMotion and select 'User' and then enable Motion Pro.

LG E8 Calibration Settings 50

LG E8 Calibration Settings 54

LG E8 Calibration Settings 57

Luminance Settings

Dark Room

We adjusted the OLED LIGHT to '19' for our dark room calibration, to reach our target calibration luminance of 100 cd/m2. If that is too bright you can adjust lower depending on your needs.

Average Room

For a room with average lighting, we adjusted OLED LIGHT to '65' to reach a luminance of 200 cd/m². This setting should be good for any room with an average light situation. You can always adjust it to better suit your specific room.

Bright Room

For our bright room setting, we adjusted the OLED LIGHT to '100' (maximum) to get the maximum luminance available. This setting should be good for any well-lit rooms with direct sunlight or light from a very bright lamp.

It is good to note that changing the 'OLED LIGHT' settings does not affect the color or the picture quality, only the luminance of the display.

HDR settings

Some players may not properly detect that the TV supports HDR. To ensure they properly detect the TV as HDR compatible, turn on HDMI ULTRA HD Deep Color for the HDMI port where you intend to connect your HDR device such as a UHD Blu-Ray player or a game console such as the Xbox One X or PS4 Pro. Note: Only turn on  HDMI ULTRA HD Deep Color if your device does not properly detect the TVs HDR support, as turning it on all the time might cause compatibility issues with older devices.

'Cinema' is the best picture mode, 'Warm 1' is the best color temperature.

If you find HDR content too dim you can set the Dynamic Contrast setting to High, which will brighten most HDR scenes. For measurements of this setting see the Color Gamut section of the review.

LG E8 Calibration Settings 6

When in HDR, some settings might be unavailable (grayed out) in the menu, this is normal. Depending on your content type (HDR10 or Dolby Vision), you may need to adjust your settings as follows:

HDR10

When the TV detects HDR10 content, it will give you 6 HDR Picture Mode options. For movies, Cinema is the best option available since it will give you more control of the settings, similar to ISF Expert (Dark Room) with SDR content. The OLED Light Setting in HDR10 mode is set to maximum automatically and should not be changed. This is recommended for HDR10 content, as it will permit the reproduction of the brightest highlights possible under HDR to create the 'Pop' normally seen with HDR content.

LG E8 Calibration Settings 62

Dynamic Tone Mapping

The 2017 & 2018 LG OLED TVs now support HDR with Dynamic Tone Mapping, which is similar to HDR10+ or HDR10 with dynamic metadata. This feature analyses the content frame by frame in real time to adjust the HDR tone mapping curve. This has the advantage of displaying each scene with an optimized HDR effect. With HDR with static metadata, the entire movie used the same tone mapping curve, resulting in some scenes occasionally being too dark or too bright, or simply not exposed correctly to have the best possible HDR effect.

To activate this feature on the LG E8, you need to go in the Picture Mode Settings tab and set the Dynamic Tone Mapping option to 'On'. We prefer leaving it off to not modify the content in a way that was not intended by the content creator.

Dolby Vision

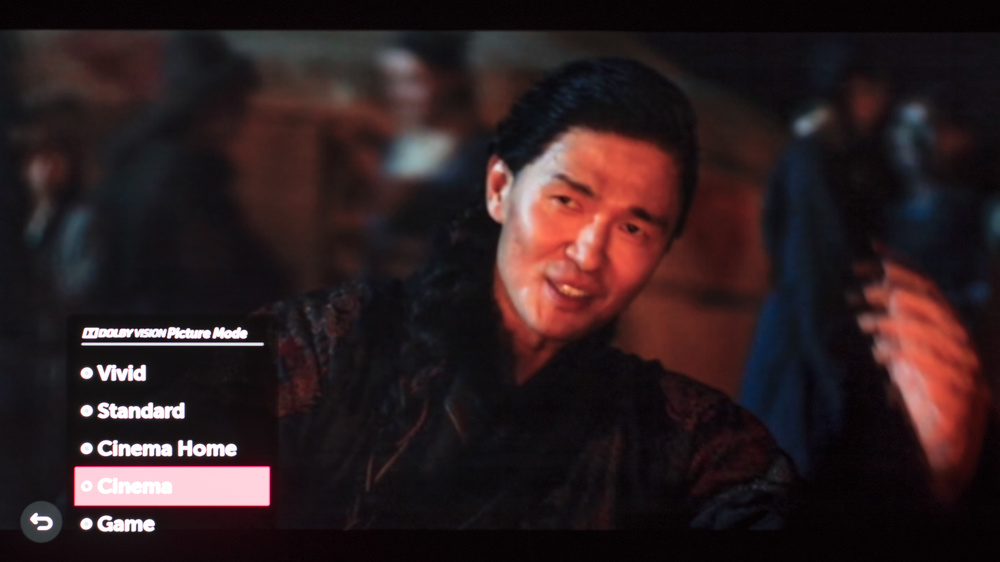

When the TV detects Dolby Vision HDR content, it will also give you 5 HDR Picture Mode options. For movies, the Cinema picture mode is the best option available since it will give you more control of the settings, again similar to what you have access with 'IFS Expert (Dark Room)' with SDR content and similar to the HDR10 setting. 'Cinema home' is also brighter than the other modes. When in Dolby Vision HDR, the recommended OLED LIGHT setting is '50'. Raising OLED LIGHT setting higher than '50' will raise the Gamma, so this can help if you notice black crush (loss of detail in the black regions of the screen).

When in Dolby Vision HDR, since Dolby Vision HDR already incorporates dynamic metadata, there is no need for an 'Active HDR' feature, and thus the 'Dynamic Contrast' behaves the same way it does in SDR.

LG E8 Calibration Settings 63

Gaming settings

SDR Gaming

To get the best input lag possible when gaming, you need to set the Picture Mode to 'Game'. In Game mode, some options won't be available in the setting pages, since the 'Game' picture mode disables most of the image processing to give better input lag. Under game mode, the color temperature setting is now a slider giving you a different control from colder to warmer, but the most accurate results are with a setting of W48. The gamma selection is also a bit different, giving you the option from 'Low' to 'High2', and the most accurate setting is 'Medium'. For the rest of the available settings, you can follow our general settings.

HDR Gaming

For HDR gaming, simply turn on HDMI ULTRA HD Deep Color for the HDMI port where you intend to connect your video game console or PC and select the 'Game' HDR picture Mode to have the best input lag possible. Some options won't be available to reduce the input lag.

Miscellaneous settings

If you want to activate the Chroma subsampling (4:4:4) on the LG E8, you need to set the Input Label to 'PC' for the HDMI port where your device is connected. This setting is available via the Inputs menu. When in PC Mode, Sharpness should be set to '20' for no added sharpness or softening.

LG E8 Calibration Settings 1

OLED Panel Settings

From the main 'Picture settings' page, there is a menu called OLED Panel Settings. Inside there is the Pixel Refresher function, 'Screen Shift' option, and 'Logo Luminance Adjustment'. 'Pixel Refresher' is the function that will attempt to clear any image retention or other screen issues that can happen when the TV is left turn on for a long period of time. This function needs at least one hour to run and will only start once the TV is turned off. There is also an automatic Pixel Refresher that is run automatically once the TV is turned off after 4 cumulative hours of use. The Screen Shift is a feature that will slightly move the screen at regular intervals to prevent image retention (the screen shift is not noticeable). We recommend to turn on this feature. Logo Luminance Adjustment is an LG feature which detects static logos on screen and automatically dims them to help prevent them from causing permanent image retention. We recommend the 'Low' setting since 'High' can dim some areas too much.

LG E8 Calibration Settings 2

LG E8 Calibration Settings 7

LG E8 Calibration Settings 8

LG E8 Calibration Settings 9

White Balance and Color Space Settings

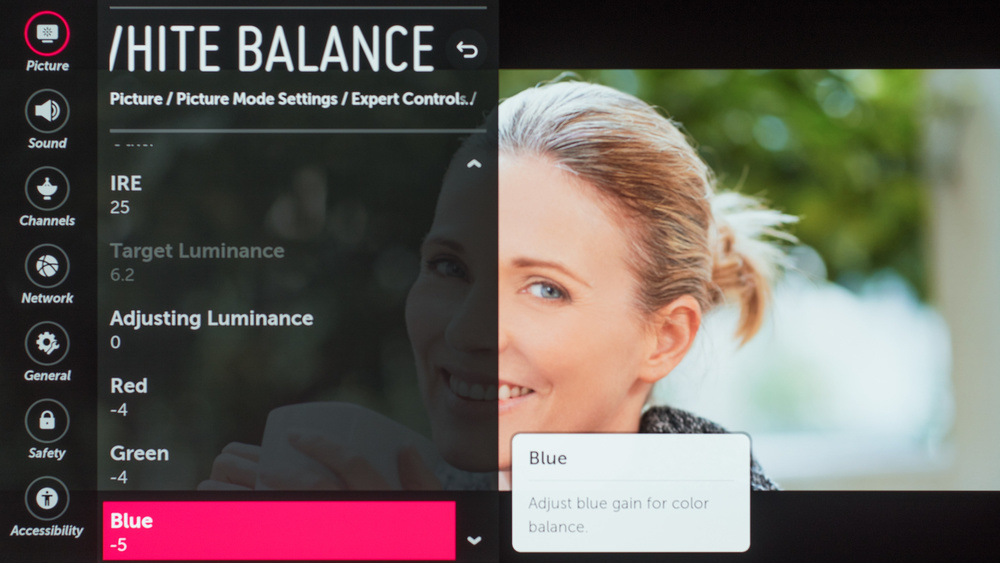

The following are the results of the white balance and colorspace calibration on our unit. They are provided for reference, and should not be copied as the calibration values vary per individual unit even for the same model and same size as the TV we reviewed due to manufacturing tolerances. If you want to try them you will need to enter all values shown, as all of them are active at the same time. If you end up with worse picture quality, simply reset them to the default values.
