Reviewed on May 12, 2017

Sony X800E TV REVIEW

Usage Ratings - Version 1.2
7.1
Mixed Usage
Value for price beaten by
: Not at the latest test bench
5.9
Movies
7.7
TV Shows
7.4
Sports
7.6
Video Games
6.0
HDR Movies
7.1
HDR Gaming
7.8
PC Monitor
This TV was replaced by the Sony X800G

Type : LED
Sub-Type
:
IPS
Resolution : 4k

The X800E is a good 4k smart TV with decent picture quality for an LED TV. It has a wide viewing angle and can display a wide range of colors with very smooth gradients. It also has low input lag and deals with motion well, making it a good gaming TV. Unfortunately though, its blacks lack depth, and they'll often appear blotchy making the TV less suitable for use in a darker setting.

Test Results
Design 8.0
Picture Quality 7.1
Motion 7.3
Inputs 8.1
Sound Quality 6.1
Smart Features 8.0
Pros
  • Can be enjoyed even from the sides
  • Gradients are smooth and without stepping
  • Great handling of motion.
Cons
  • Contrast is low, making blacks less deep
  • Blacks are blotchy
  1. Update 3/12/2018: Converted to Test Bench 1.2. Learn more about our versioned test bench system here.
  2. Update 12/11/2017: Google Assistant has now been added to Android TV on Sony TVs, and it brings a lot of new features to the voice control. The remote score has been increased to reflect the new fuctionality.
  3. Update 11/10/2017: Retested input lag with the latest firmware (PKG6.2669.0070NAA); there was no significant change.

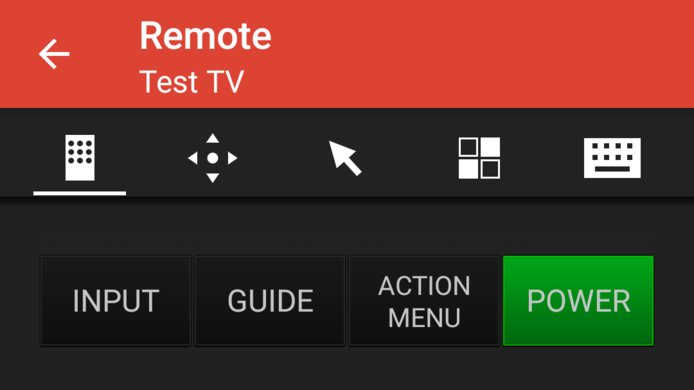

  4. Update 9/12/2017: The Remote App box has been updated, replacing Google's app with Sony's better one.
  5. Update 8/10/2017: Converted to Test Bench 1.1. Learn more about our new versioned test bench system here.
  6. Update 7/19/2017: Updated with newest firmware (PKG6.2648.0065NAA). The input lag has been retested and is unchanged.

Check Price

8.0

Design

Curved : No

The design of the X800E is similar to most other Sony TVs, including the X800D from 2016. It does have less of a premium feel to it when compared to the older model, and some of the inputs can be a bit more difficult to access if close to a wall. It also has an external power brick.

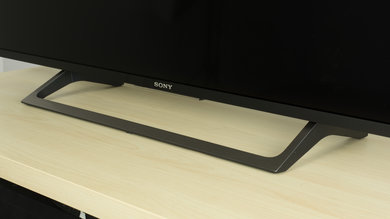

Stand

The plastic stand is a bit lower quality than the 2016 X800D but still supports the TV well and provides tracks at the back for some basic cable management.

Footprint of the 43" TV stand: 9.6" x 21.9"

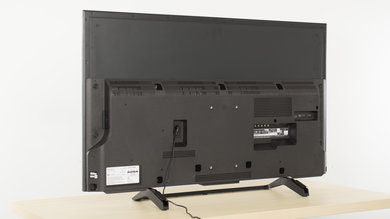

Back
Wall Mount : VESA 100x200

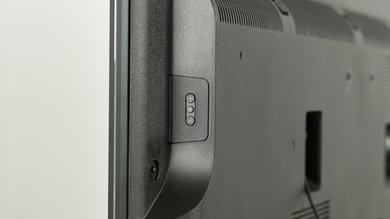

The rear of the TV is quite basic and made of plastic. Some of the inputs may be difficult to access if placed close to a wall as they go directly out the back of the TV. Note that there is an external power brick which may make the TV a bit more difficult to mount.

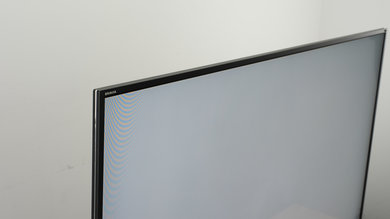

Borders
Borders : 0.51" (1.3 cm)

The border of the TV have an average thickness but look quite good. The edges are metallic.

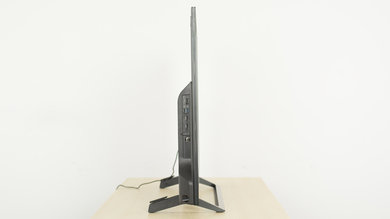

Thickness
Max Thickness : 2.28" (5.8 cm)

The TV is a bit thicker than average when viewed from the side. If wall mounted it may stick out a little bit.

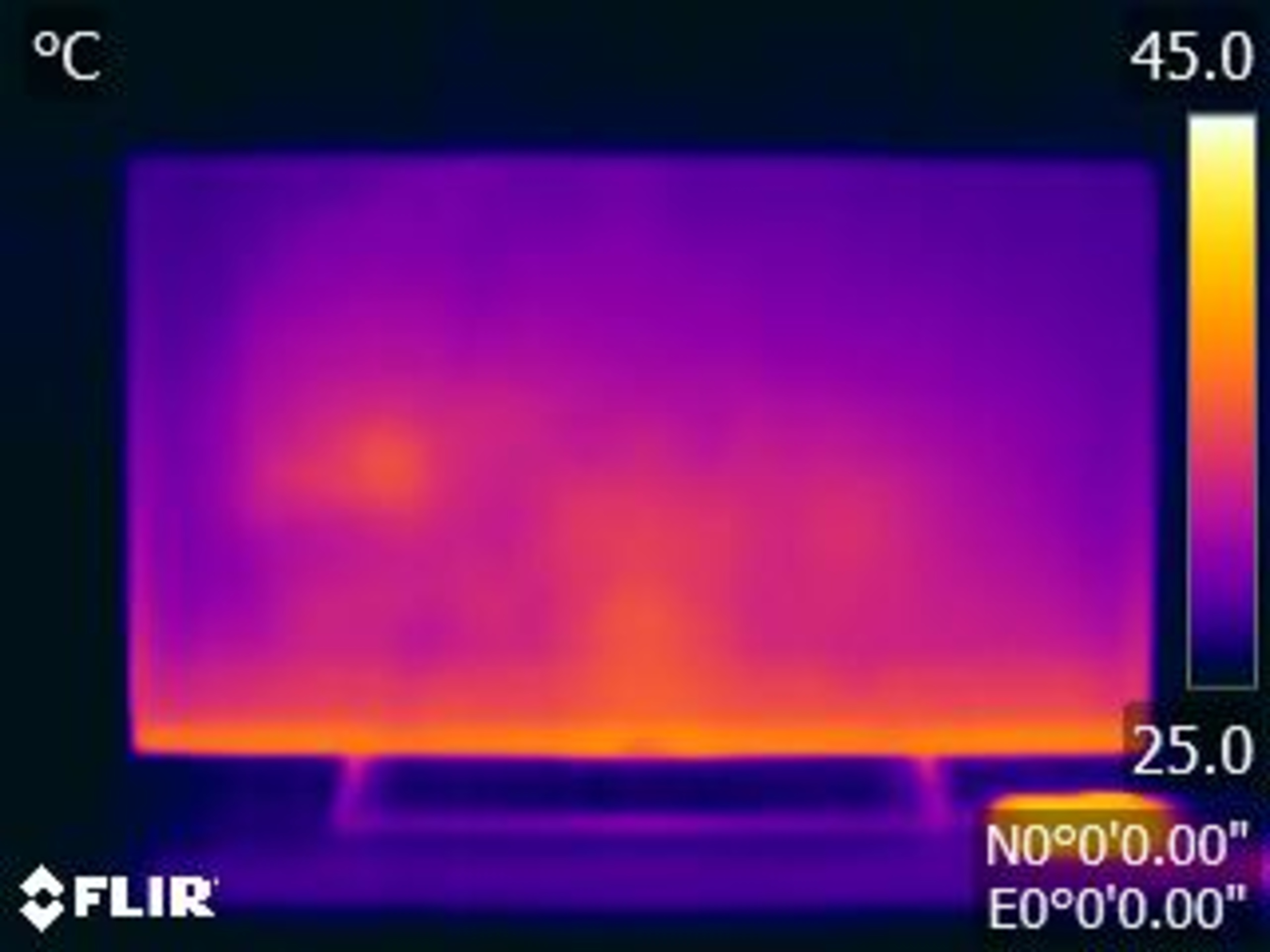

Temperature
Maximum Temperature
:
99 °F (37 °C)
Average Temperature
:
88 °F (31 °C)

The main body of the TV is fairly cool, only getting slightly warm along the bottom where the LEDs are for the backlight. Its power brick on the other hand does get warm to the touch, reaching 40 °C.

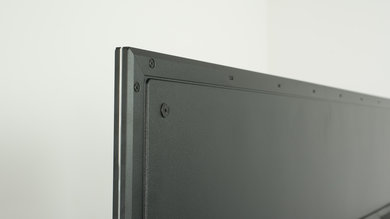

6.5 Build Quality

The build quality of the X800E is decent. Most of the TV is plastic, but screws around the edges hold the TV together well. The remote also feels quite low quality, especially when compared to higher end Sony TVs.

7.1

Picture Quality

The Sony X800E has an average picture quality. The contrast ratio and black uniformity are disappointing and when set in a dark room, and results in grayish looking blacks. As a result, the X800E won't be a good choice for a dark room but still can be okay for a viewing room with a lot of light as the low contrast isn't noticeable when viewed in a bright setting. The peak brightness is good and should be enough to fight glare from a close lamp or a window, but the screen is worse than average at dealing with reflections. The gray uniformity could be better but luckily, dirty screen effect is not a problem. The addition of the decent viewing angle results in a good TV for watching sport, especially with a large group of people. Finally, the X800E has a good HDR capability since it has a good HDR peak brightness, wide color gamut and it can display gradients without banding.

5.9 Contrast
Native Contrast
:
961 : 1
Contrast with local dimming
:
N/A

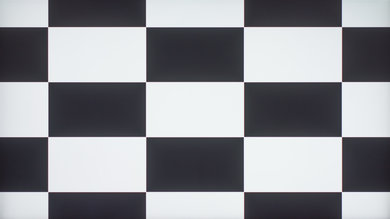

The Sony X800E has a disappointing contrast ratio of only 961:1. This is mostly due to the IPS panel used in this 2017 model. This results in a quarter of the contrast ratio when compared to the 2016 X800D, which is a big disappointment. When viewed in a dark room, dark scenes in movies look washed-out and blacks aren't as deep as on other TVs with VA panel.

0 Local Dimming
Local Dimming
:
No
Backlight
:
Edge

The Sony X800E doesn't have a local dimming feature. The video is for reference only.

8.0 SDR Peak Brightness
SDR Real Scene Peak Brightness
:
342 cd/m²
SDR Peak 2% Window
:
359 cd/m²
SDR Peak 10% Window
:
392 cd/m²
SDR Peak 25% Window
:
392 cd/m²
SDR Peak 50% Window
:
392 cd/m²
SDR Peak 100% Window
:
391 cd/m²
SDR Sustained 2% Window
:
358 cd/m²
SDR Sustained 10% Window
:
391 cd/m²
SDR Sustained 25% Window
:
391 cd/m²
SDR Sustained 50% Window
:
391 cd/m²
SDR Sustained 100% Window
:
391 cd/m²
SDR ABL
:
0.006

Great SDR peak brightness. The TV stays consistently bright no matter the content played, and should appear bright even in a moderately lit room; however it's not as bright as most high end TVs. The TV is a little brighter than last year's X800D but less bright than the X700D.

A plot of brightness over time is shown here.

6.8 HDR Peak Brightness
HDR Real Scene Peak Brightness
:
395 cd/m²
HDR Peak 2% Window
:
403 cd/m²
HDR Peak 10% Window
:
437 cd/m²
HDR Peak 25% Window
:
437 cd/m²
HDR Peak 50% Window
:
437 cd/m²
HDR Peak 100% Window
:
436 cd/m²
HDR Sustained 2% Window
:
402 cd/m²
HDR Sustained 10% Window
:
437 cd/m²
HDR Sustained 25% Window
:
436 cd/m²
HDR Sustained 50% Window
:
435 cd/m²
HDR Sustained 100% Window
:
435 cd/m²
HDR ABL
:
0.005

Decent HDR peak brightness. The TV is consistently bright when watching any content, however its lack of local dimming prevents it from making small highlights as bright as intended. The TV is a little brighter than the X800D from last year but less bright than the X700D.

A plot of brightness over time is shown here.

7.1 Gray Uniformity
50% Std. Dev.
:
4.785 %
50% DSE
:
0.191 %
5% Std. Dev.
:
0.610 %
5% DSE
:
0.092 %

The overall gray uniformity of the X800E is decent, and there is not too much visible dirty screen effect as most of the issues are situated on the edges of the screen. Both sides are particularly darker than the middle of the screen leaving the center of the screen pretty even. Dirty screen effect is not really a problem.

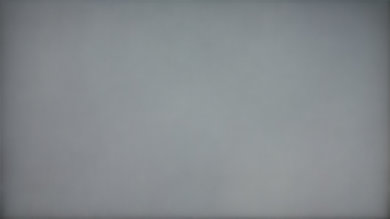

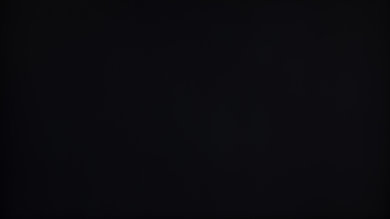

Nothing too bad stands out looking at the 5% gray test picture and this reflects what the TV looks like in person, which is a good thing.

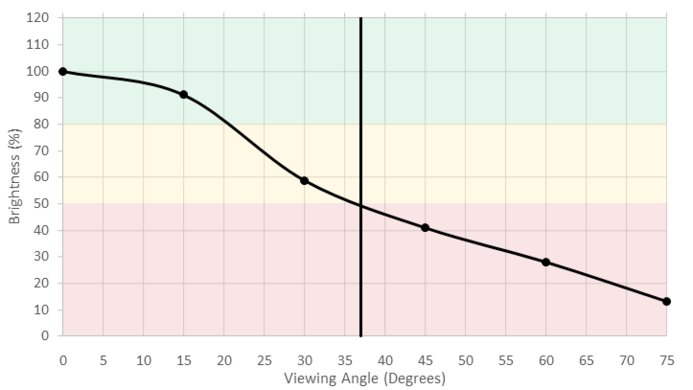

6.6 Viewing Angle
Color Shift
:
27 °
Brightness
:
37 °
Black Level
:
75 °

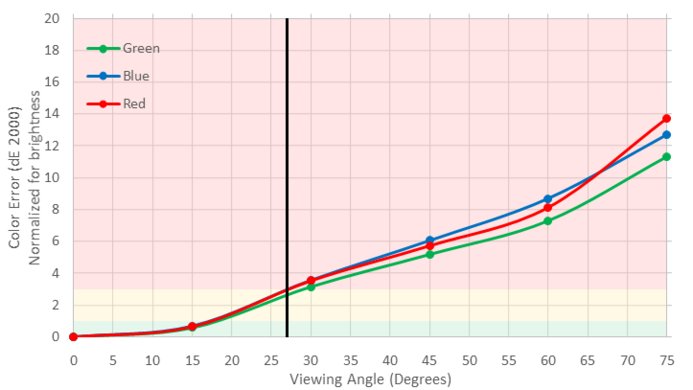

Decent viewing angle. The TV's black level does not change much at an angle, however its colors wash out rapidly and its brightness decreases steadily when viewed on an angle. People sitting to the side of the TV will still have okay picture quality, better than with many VA TVs such as the X800D, but not as good as with OLEDs or some other IPS TVs.

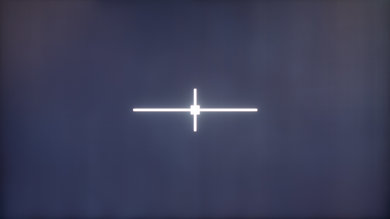

4.8 Black Uniformity
Native Std. Dev.
:
2.787 %
Std. Dev. w/ L.D.
:
N/A

The black uniformity is bad on the 2017 X800E. Some flashlighting can be seen in both top corners and clouding is present on most of the screen, but a lot of it is due to the fact that this model is using a IPS panel which usually performs worse than TVs with VA panels. In any case, dark scenes will not look optimal on this TV, especially when the TV is set in a dark room.

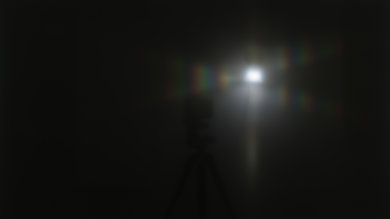

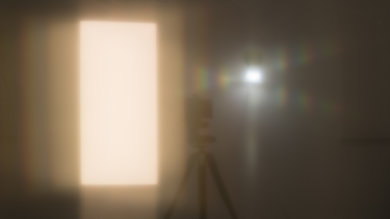

7.2 Reflections
Screen Finish
:
Semi-gloss
Total Reflections
:
5.2 %
Indirect Reflections
:
1.7 %

The X800E is a bit more reflective than most other TVs. This is fine for a dark room, but for a bright room rainbows can be seen around reflections and the semi-gloss finish diffuses them across the screen.

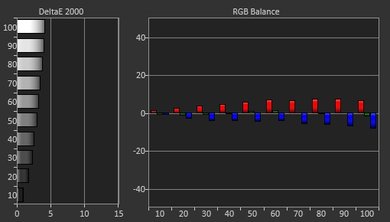

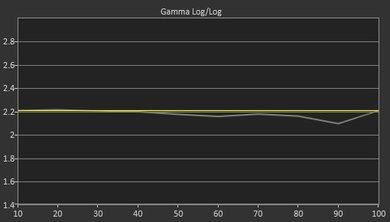

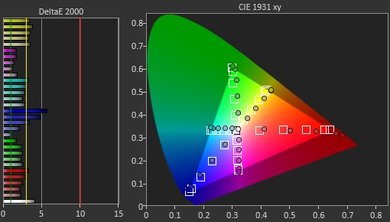

7.6 Pre Calibration
Picture Mode
:
Custom
White Balance dE
:
2.90
Color dE
:
2.78
Gamma
:
2.17
Color Temperature
:
5989 K

Great performance out of the box for the Sony X800E. The white balance is a bit on the warmer side than we usually aim for, but it is not far off and the gamma is tracking our 2.2 target pretty closely. Looking at the color dE, overall it is a great score, where all color tracks relatively well, with only the blues being a bit less accurate. In the end, this is a good result and for personal use, this TV could be used as it is without any problems.

9.2 Post Calibration
Picture Mode
:
Custom
White Balance dE
:
0.27
Color dE
:
1.99
Gamma
:
2.20
Color Temperature
:
6500 K

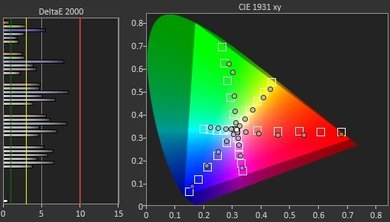

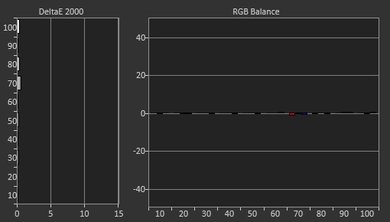

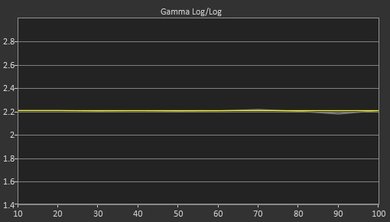

After calibration, the X800E is very accurate. The white balance dE was brought down to only 0.27, which is a great result and calibration is relatively easy. As a result of this, the gamma was able to track closely to our 2.2 target.

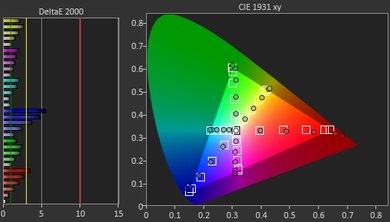

When it come to the Color dE, as with other Sony TVs, the X800E does not have a 'Color Management System' and the only correction possible here is done via the white balance. Even without a 'CMS', the color dE was brought down to 1.99, which is still better than what we had out of the box, with only the blues being a bit more off than the rest of the other colors.

You can see our recommended settings here.

8.0 480p Input

Upscaling of low quality content such as DVDs is good. Very few artifacts can be seen and edges are smoothed without reducing the sharpness.

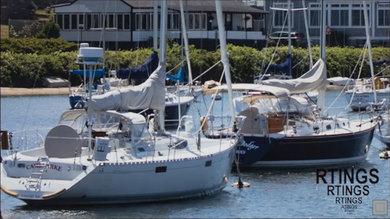

8.0 720p Input

720p content such as cable TV is upscaled quite well. Details are preserved and the image isn't too soft.

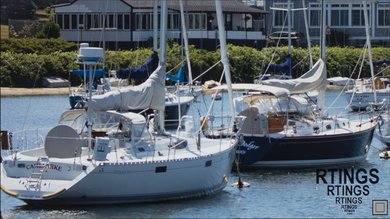

9.0 1080p Input

1080p content such as Blu-rays look good.

10 4k Input

No issues can be seen with native 4k content.

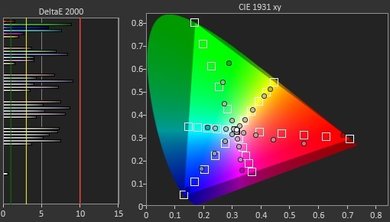

7.6 Color Gamut
Wide Color Gamut
:
Yes
DCI P3 xy
:
84.71 %
DCI P3 uv
:
90.60 %
Rec 2020 xy
:
62.03 %
Rec 2020 uv
:
68.40 %

Wide color gamut, though not as wide as on the X800D. Deep colors in HDR content will be fairly well represented. The TV struggles with showing deep greens, like most other TVs, but also can't show fully saturated blue.

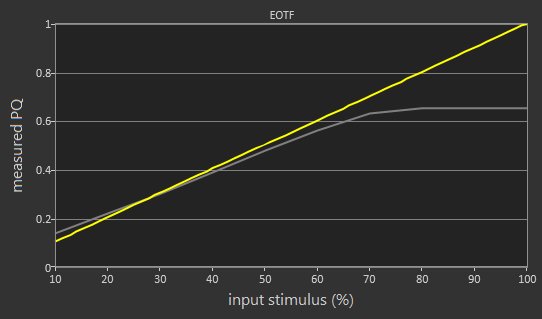

The TV's EOTF follows the PQ curve fairly closely, but at higher brightness it rolls off then clips at its maximum brightness. This EOTF was measured in the Custom picture mode using our recommended settings; the EOTF in the Cinema Pro picture mode shown here is nearly identical unlike other Sony TVs we've measured.

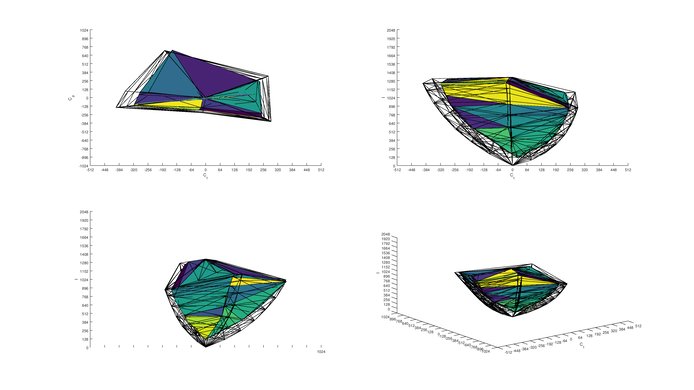

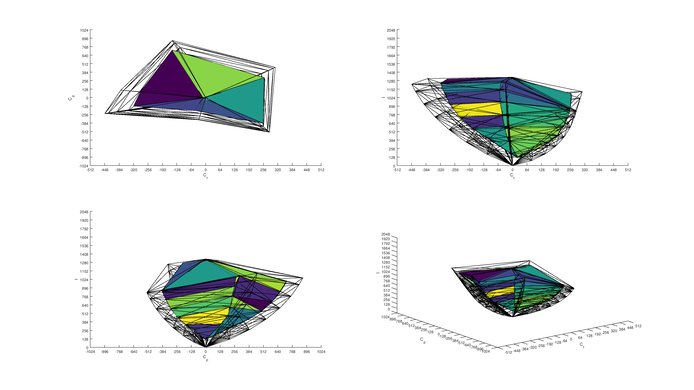

5.9 Color Volume
Normalized DCI P3 Coverage ITP
:
65.2 %
10,000 cd/m² DCI P3 Coverage ITP
:
28.6 %
Normalized Rec 2020 Coverage ITP
:
53.4 %
10,000 cd/m² Rec 2020 Coverage ITP
:
23.4 %

Poor color volume. The TV has a wide color gamut when showing bright colors, but its gamut narrows significantly when showing very dark colors. It also can't make dark colors dark enough due to its low contrast ratio. The TV performs frame dimming when shown our black-with-border slide, but even this doesn't make the black point very dim.

8.5 Gradient
Color Depth
:
10 Bit
Red (Std. Dev.)
:
0.109 dE
Green (Std. Dev.)
:
0.097 dE
Blue (Std. Dev.)
:
0.100 dE
Gray (Std. Dev.)
:
0.067 dE

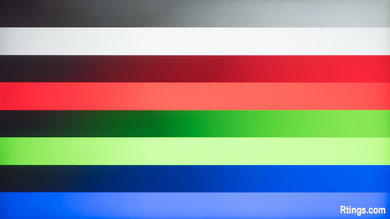

The X800E performs very well on our gradient test. As you can see in our test picture, the gradient looks very smooth and is almost perfect, without any major visible banding from any colors and even in the grayscale.

10 Temporary Image Retention
IR after 0 min recovery
:
0.00 %
IR after 2 min recovery
:
0.00 %
IR after 4 min recovery
:
0.00 %
IR after 6 min recovery
:
0.00 %
IR after 8 min recovery
:
0.00 %
IR after 10 min recovery
:
0.00 %

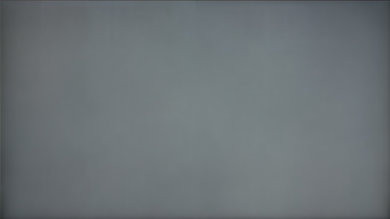

The X800E as an excellent result on our image retention test. If you look very closely to our test picture, you will see a really faint remnant of the top Rtings logos but it was not enough to trigger a response from our test. Looking at the TV in person when the pictures were taken, it was not possible to see any retention. For an IPS TV, this is a very good performance, especially if you compare with the 2016 Sony X700D IPS TV.

10 Permanent Burn-In Risk
Permanent Burn-In Risk
:
No

Although some IPS panels can suffer from temporary image retention, this doesn't appear to be permanent as seen in our long-term test.

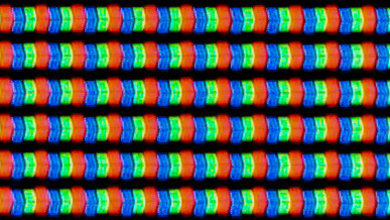

Pixels

The chevron shape of the IPS pixels can be seen.

7.3

Motion

The X800E is good at handling motion. It has a fast response time which results in very little blur following fast moving objects. By default the backlight doesn't flicker which helps to produce smooth motion, but it is possible to introduce flicker to clear up fast moving content. Movies played from a cable box do experience some minor judder, but this isn't noticeable to most people. The X800E has a 60Hz panel which can interpolate lower frame rate content for those who enjoy the soap opera effect.

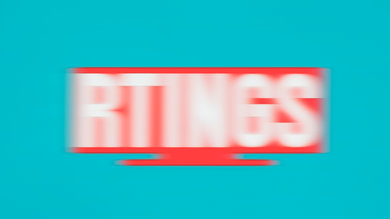

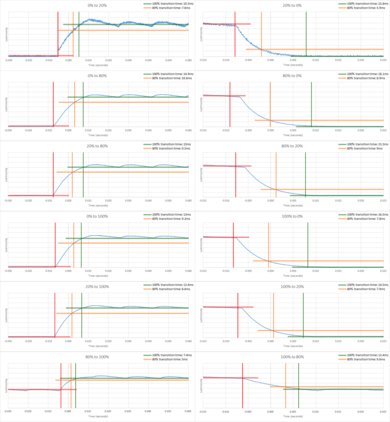

7.9 Response Time
80% Response Time
:
8.3 ms
100% Response Time
:
13.9 ms

The X800E has a good response time, which results in only a very short trail following moving objects. This is a similar result to the X800D from 2016.

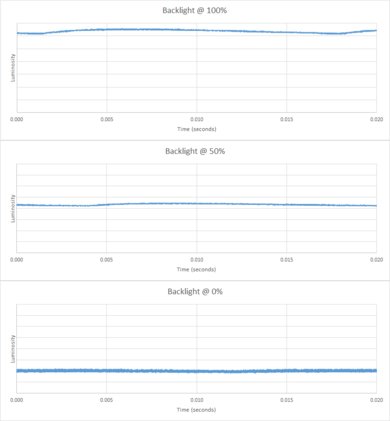

10 Flicker-Free
Flicker-Free
:
Yes
PWM Dimming Frequency
:
0 Hz

Like many Sony TVs, the backlight doesn't flicker by default. This results in smoother motion without duplications.

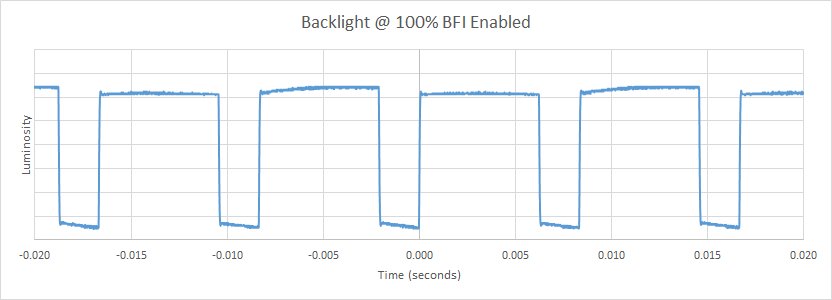

5.4 Black Frame Insertion (BFI)
Optional BFI
:
Yes
Min Flicker for 60 fps
:
120 Hz
60 Hz for 60 fps
:
No
120 Hz for 120 fps
:
N/A
Min Flicker for 60 fps in Game Mode
:
120 Hz

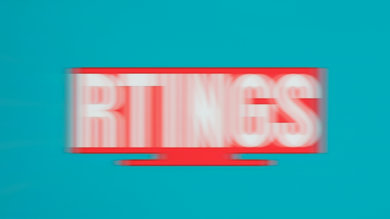

It is possible to flicker the backlight with the 'Motionflow' setting. Increasing the 'Clearness' slider causes the backlight to flicker at 120Hz which clears up motion blur a bit, but not as good as the 60Hz flicker available on the X720E.

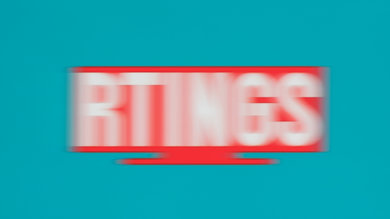

7.0 Motion Interpolation
Motion Interpolation (30 fps)
:
Yes
Motion Interpolation (60 fps)
:
No

The X800E has a 60Hz panel which can interpolate lower frame rate content. To do so adjust the 'MotionFlow' to 'Custom' and increase the 'Smoothness' slider. Note that any motion interpolation does introduce some artifacts.

7.5 Stutter
Frame Hold Time @ 24 fps
:
27.8 ms
Frame Hold Time @ 60 fps
:
2.8 ms

The Sony X800E is great at displaying content smoothly. For 24 fps content such as movies the transition is approximately 1/3 of the frame time, which doesn't produce much stutter. 60 fps content is also very smooth.

5.6 24p Judder
Judder-Free 24p
:
Yes
Judder-Free 24p via 60p
:
No
Judder-Free 24p via 60i
:
No
Judder-Free 24p via Native Apps
:
No

This TV can only display 24p movies without judder from 24p sources (DVDs, Blu-rays). 24p movies playing from 60p/60i sources like cable or satellite boxes do present some minor judder and the TV can't remove even with 'CineMotion' set to 'Auto'.

This is the same result as last year models (X800D) and people who are sensitive to judder may notice it when watching movie from cable/satellite boxes.

0 Variable Refresh Rate
Native Refresh Rate
:
60 Hz
Variable Refresh Rate
:
No
4k VRR Maximum
:
N/A
4k VRR Minimum
:
N/A
1080p VRR Maximum
:
N/A
1080p VRR Minimum
:
N/A
VRR Supported Connectors
:
N/A

This TV has a 60Hz panel and doesn't support any variable refresh rate features.

8.1

Inputs

The X800E supports all the common input signals (except 120 Hz), so nearly all content will be displayed properly. It has low input lag which is good enough for most gamers, but very competitive gamers may be disappointed. Note: Only HDMI ports 2 & 3 support full bandwidth, but HDMI port 3 is also the audio return channel. If you have a receiver which supports ARC and more than 1 device which requires the full bandwidth of HDMI then you might have some issues connecting all of your devices. In this case it may be best to connect your receiver using an optical (Toslink) cable.

8.1 Input Lag
1080p @ 60Hz
:
32.9 ms
1080p @ 60Hz + HDR
:
32.2 ms
1080p @ 60Hz Outside Game Mode
:
32.9 ms
1080p @ 120Hz
:
N/A
4k @ 60Hz
:
35.1 ms
4k @ 60Hz + HDR
:
34.2 ms
4k @ 60Hz @ 4:4:4
:
34.7 ms
4k @ 60Hz @ 4:4:4 + 8 bit HDR
:
34.3 ms
4k @ 60Hz Outside Game Mode
:
51.6 ms
4k With Interpolation
:
51.7 ms
4k @ 120 Hz
:
N/A
4k with Variable Refresh Rate
:
N/A
1080p with Variable Refresh Rate
:
N/A

Consistent low input lag of ~34 ms when in the Game or Graphics picture modes. This should be good enough for most gamers but may disappoint very competitive gamers. The input lag with motion interpolation enabled is much better than on most TVs, but at 49.5 ms it's still a little high for gaming. Overall the input lag is very similar to that of the X800D.

Update 07/18/2017: The TV has been tested with the newest firmware update (PKG6.2648.0065NAA). The input lag remains the same.

Update 11/10/2017: Retested input lag with the latest firmware (PKG6.2669.0070NAA); there was no significant change.

8.3 Supported Resolutions
1080p @ 60Hz @ 4:4:4
:
Yes
1080p @ 120Hz
:
No
1440p @ 60Hz
:
Yes
4k @ 30Hz @ 4:4:4
:
Yes
4k @ 60Hz
:
Yes
4k @ 60Hz @ 4:4:4
:
Yes
4k @ 120Hz
:
No

All the common input resolutions are supported, except 120 Hz input because this TV has a 60 Hz panel. To receive 4k @ 60 Hz @ 4:2:2 or 4:4:4 color, HDMI inputs 2 or 3 must be used and 'HDMI Enhanced Format' must be enabled. 4:4:4 color is displayed properly in the Game or Graphics picture modes. When using the TV as a PC monitor 1080p is listed as the default resolution.

Side Inputs
Rear Inputs
Total Inputs
HDMI : 4
USB : 3
Digital Optical Audio Out : 1
Analog Audio Out 3.5mm : 1
Analog Audio Out RCA : 0
Component In : 1 (shared)
Composite In : 2 (shared)
Tuner (Cable/Ant) : 1
Ethernet : 1
DisplayPort : 0
IR In : 1
SD/SDHC : 0

There are two composite inputs on the rear of the TV, but one of them is shared with the component input. The other composite input is in for the form of a 3.5mm jack and requires an adapter (not included) such as this.

Inputs Specifications
HDR10
:
Yes
Dolby Vision
:
No
HLG
:
Yes
3D
:
No
5.1 Passthrough ARC Dolby Digital
:
Yes
5.1 Passthrough ARC DTS
:
Yes
5.1 Passthrough Optical Dolby Digital
:
Yes
5.1 Passthrough Optical DTS
:
Yes
HDMI 2.0 Full Bandwidth
:
Yes (HDMI 2,3)
HDMI 2.1 Full Bandwidth
:
No
ARC
:
Yes (HDMI 3)
USB 3.0
:
Yes (1)
HDCP 2.2 : Yes (HDMI 1,2,3,4)
CEC : Yes
MHL : No
Variable Analog Audio Out : Yes
Wi-Fi Support : Yes (2.4 GHz, 5 GHz)
6.1

Sound Quality

The X800E's sound reproduction capabilities are about average for what's found in TVs, which means it'll most definitely benefit from being replaced by an external set of speakers or soundbar.

6.1 Frequency Response
Low-Frequency Extension
:
106.79 Hz
Std. Dev. @ 70
:
4.06 dB
Std. Dev. @ 80
:
4.98 dB
Std. Dev. @ Max
:
7.84 dB
Max
:
93.3 dB SPL
Dynamic Range Compression
:
5.56 dB

Passable frequency response. The sound coming from the X800E's speakers is a bit dark, mostly from the relatively strong recession in the higher frequencies. Compression and pumping artifacts are also present at higher volumes.

6.1 Distortion
Weighted THD @ 80
:
0.045
Weighted THD @ Max
:
15.581
IMD @ 80
:
2.16 %
IMD @ Max
:
35.36 %

Poor distortion. The results are a bit higher than average at standard volumes, but skyrocket when levels are closer to maximum, rendering volume settings past the 85 mark virtually unusable.

8.0

Smart Features

Smart OS : Android TV
Version : 7.0

The Sony X800E runs the new Android TV 7.0 Nougat, which has a few major changes compared to 6.0 . Double clicking the home button now opens a task switching menu where the user can quickly switch between running apps. There is also a new picture in picture feature that lets video from an HDMI input or the TV's tuner be shown in a hovering box at the top right corner of the screen, while the user navigates the TV's interface and opens apps. Overall though the new update didn't fix the main problems with the platform, namely ease of navigation, interaction speed and frame drops, and the remote's lack of smart features.

Other core features of Android TV remain unchanged. The included Google Play store has a vast selection of apps that can be downloaded, more than on many other smart platforms. The TV's 'Chromecast built-in' feature allows content to be cast from a smartphone or tablet to the TV. The remote has a built in microphone for voice search, which works well.

7.0 Interface
Ease of Use
:
Average
Smoothness
:
Not Smooth
Time Taken to Select YouTube
:
4 s
Time Taken to Change Backlight
:
7 s
Advanced Options
:
Many

The Android TV interface isn't quite as easy to use as many other smart platforms, and on this TV it sometimes has lag and choppy animations. The 'Action Menu' button on the remote helps to alleviate this by giving quick access to common functions.

10 Ad-Free
Ads
:
No
Opt-out
:
N/A
Suggested Content in Home
:
Yes
Opt-out of Suggested Content
:
Yes

The TV has no ads in its main interface, though apps can have ads. It's possible to opt out of personalized advertising for these ads.

The first row of the TV's home screen is filled with suggested content. In the 'Home' section of the TV's settings there is an option to disable sources of suggested content. If all these sources are disabled the first row of the home screen just contains a line saying "No recommendations available at this time".

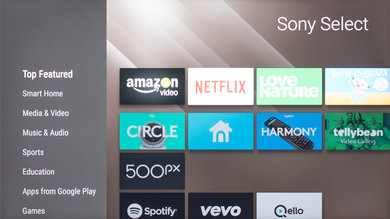

9.0 Apps and Features
App Selection
:
Very Many
App Smoothness
:
Average
Cast Capable
:
Yes
USB Drive Playback
:
Yes
USB Drive HDR Playback
:
Yes
HDR in Netflix
:
Yes
HDR in Amazon Video
:
Yes
HDR in YouTube
:
No

The TV comes preloaded with all the popular apps such as Netflix, YouTube and Amazon Video. Many more apps can be downloaded from the included Google Play store, which has a larger selection of apps than many other smart platforms.

8.0 Remote
Size
:
Large
Voice Control
:
Search, Some Other Features
CEC Menu Control
:
Yes
Other Smart Features
:
No

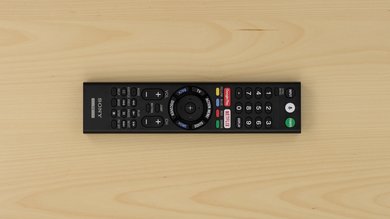

The X800E's remote is very large with a dizzying array of buttons. Fortunately most of the commonly used buttons are clustered within easy reach around the direction pad, though the power and inputs buttons at the top of the remote are difficult to reach. The remote has a built in microphone for voice search, which can quickly bring up content within apps to watch or buy, but lacks the advanced voice command features of some other platforms such as Samsung's Tizen OS.

The remote is identical to that of the X850E (same model number), but not as good as those of the X900E and X800D, due to each button being a separate chunk of rubber rather than the continuous surface of the other remotes.

Update 12/11/2017: Google Assistant has now been added to Android TV on Sony TVs, and it brings a lot of new features to the voice control: commands like 'open Netflix', 'switch to HDMI 1', 'pause video', 'how's the weather' and 'turn off TV' all work well, though commands to change picture settings like 'set the brightness to 20' and 'switch to Game mode' don't work. The remote score has been increased to reflect the new fuctionality.

7.0 Remote App
Acts as the Remote
:
Yes
Directly Launches Apps and Inputs
:
