Vizio P Series 2016
TV REVIEW

Usage Ratings - Version 1.0
8.1
Mixed Usage
Value for price beaten by
: Not at the latest test bench
8.6
Movies
7.3
TV Shows
7.6
Sports
8.9
Video Games
8.4
HDR Movies
8.4
HDR Gaming
7.9
PC Monitor
This tv was replaced by the Vizio P Series XLED 2017

Type : LED
Resolution : 4k
Refresh Rate : 120 Hz (except 50")

The Vizio P Series 2016 has one of the best picture quality we have seen. It really shines in a dark room. It isn't OLED and it won't please everyone - especially because of its poor upscaling of low-quality content - but those looking for a TV for watching 4k movies will be more than satisfied.

Pros
  • Great picture quality, especially for movies
  • Great gaming TV, with low input lag and little motion blur
  • Bright, even on full screens
Cons
  • Sub-par upscaling of lower resolutions
  • Loss of picture quality at an angle

Test Results
Design 8.0
Picture Quality 8.0
Motion 8.8
Inputs 8.7
Sound Quality 5.1
Smart Features 7.0
Update 8/1/2017: The judder has been retested with the latest firmware update (3.2.13.3). There is a bug which causes it to fail the 24Hz over 60Hz test. The bug with motion interpolation is also fixed, so the reduce judder and reduce motion blur sliders work completely independently.

Check Price

8.0

Design

Curved : No

The design of the Vizio P Series 2016 feels higher-end than the previous P Series. It is still bulky, though, and doesn't look as premium as the high-end models from other brands, like the Sony X930D or the Samsung KS9500.

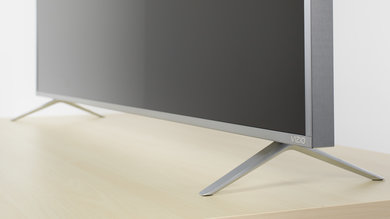

Stand

The stand is very wide. We even had to extend our test table to be able to put the 65" model on top of it.
Footprint of the 65" TV stand: 50" x 11"

Back
Wall Mount : VESA 400x400

In most cases, you shouldn't have a problem accessing the connections at the back of the TV when it is mounted to the wall.

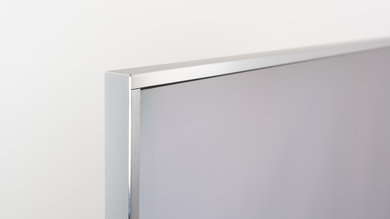

Borders
Borders : 0.63" (1.6 cm)

The borders have a metallic finish.

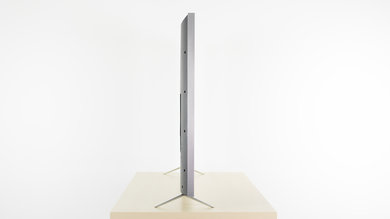

Thickness
Max Thickness : 2.60" (6.6 cm)

The Vizio P Series is thicker than most TVs.

8.0

Picture Quality

The Vizio P Series has excellent picture quality, and is especially good in a dark room. Dark scenes will look great, with deep and very uniform blacks. It also supports HDR content, offering up a wider range of colors and a high peak brightness. It is average at dealing with reflections, but the whole screen can get quite bright to combat glare. The only downside is low resolution content, like DVDs and SD channels, looks a bit too soft and the picture quality deteriorates when viewed from the side.

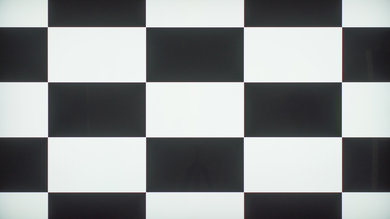

9.0 Contrast
Native Contrast
:
5694 : 1

Excellent native contrast ratio. The blacks are very deep, even when local dimming is off.
The 55" size doesn't have great blacks, though, because it uses an IPS panel, and not the VA panel used by other sizes.

8.5 Local Dimming
Local Dimming
:
Yes
Backlight
:
Full-Array

The local dimming feature on the Vizio P Series 2016, called 'Active LED Zones,' works really well, thanks to the full-array backlight. In our video, the white dot is a bit dimmed, which is unfortunate, but at least there isn't any major blooming. You will see more blooming at an angle than you will from directly in front of the TV. When watching movies, a downside of this feature is that stars in the sky won't be bright, but at least the blacks will be great.

8.1 SDR Peak Brightness
SDR Real Scene Peak Brightness
:
543 cd/m2
SDR Peak 2% Window
:
326 cd/m2
SDR Peak 10% Window
:
460 cd/m2
SDR Peak 25% Window
:
518 cd/m2
SDR Peak 50% Window
:
554 cd/m2
SDR Peak 100% Window
:
571 cd/m2
SDR Sustained 2% Window
:
326 cd/m2
SDR Sustained 10% Window
:
460 cd/m2
SDR Sustained 25% Window
:
518 cd/m2
SDR Sustained 50% Window
:
554 cd/m2
SDR Sustained 100% Window
:
571 cd/m2

The peak brightness in SDR is almost the same as in HDR, which is a good thing since most of the content available right now is still mostly in SDR.

8.1 HDR Peak Brightness
HDR Real Scene Peak Brightness
:
492 cd/m2
HDR Peak 2% Window
:
360 cd/m2
HDR Peak 10% Window
:
487 cd/m2
HDR Peak 25% Window
:
519 cd/m2
HDR Peak 50% Window
:
550 cd/m2
HDR Peak 100% Window
:
568 cd/m2
HDR Sustained 2% Window
:
360 cd/m2
HDR Sustained 10% Window
:
487 cd/m2
HDR Sustained 25% Window
:
519 cd/m2
HDR Sustained 50% Window
:
550 cd/m2
HDR Sustained 100% Window
:
568 cd/m2

This TV cannot get a small highlight as bright as other high end TVs like the Samsung KS9500 or the Sony X930D; but it can get very bright across the entire screen. Bright scenes should perform well compared to most other HDR TVs.

Update 08/05/2016: Retested with newest firmware update, sending a HDR10 signal over HDMI.

Update 10/14/2016: Retested with the newest 2.2.7.4 firmware update.

Update 01/24/2017: Retested with the newest 3.0.12.2 firmware update.

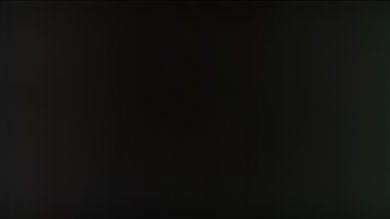

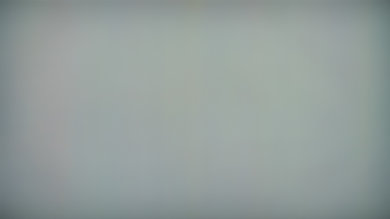

6.8 Gray Uniformity
50% Std. Dev.
:
4.527 %
50% DSE
:
0.188 %
5% Std. Dev.
:
1.911 %
5% DSE
:
0.124 %

The gray uniformity is average. You can see a few vertical bands of colors across the screen, as well as darker corners. It is a bit worse at an angle.

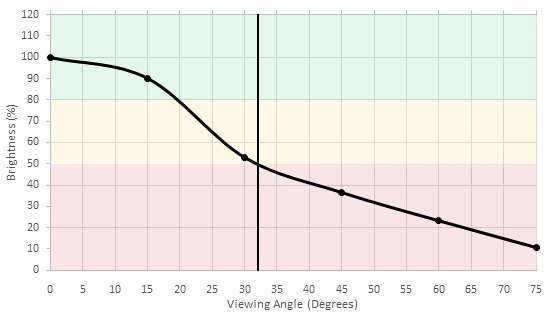

4.3 Viewing Angle
LCD Type
:
VA (except 55")
Color Shift
:
18 °
Brightness
:
32 °

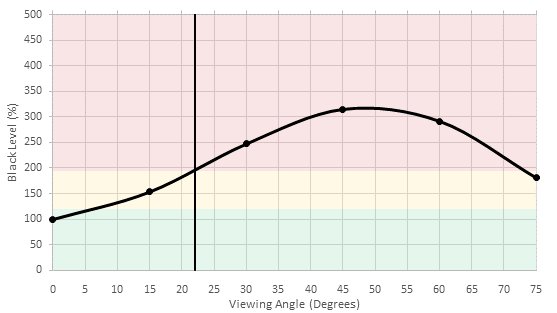

Black Level
:
22 °

The colors shift when viewed from the side, as is expected from a VA panel. This isn't ideal if you watch TV from wide angles. The 55" model's (Vizio P55-C1) IPS panel will maintain better colors at an angle.

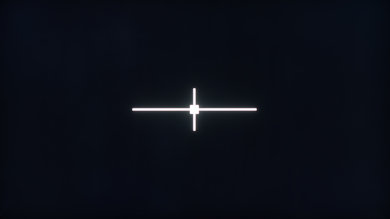

9.8 Black Uniformity
Native Std. Dev.
:
0.505 %

The uniformity of the blacks is almost perfect, especially when you use the local dimming feature. More issues can be seen at an angle, but the P-series is still better than the majority of LED TVs.

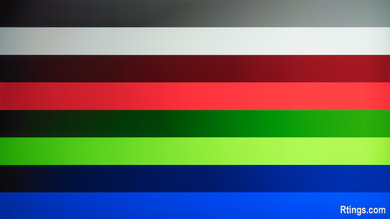

9.0 Gradient
Color Depth
:
10 Bit

Gradients are relatively smooth. It is a 10 bit panel, but there are imperfections and banding along the gradients. Nothing major enough to ruin the experience, though.

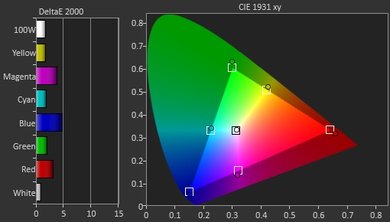

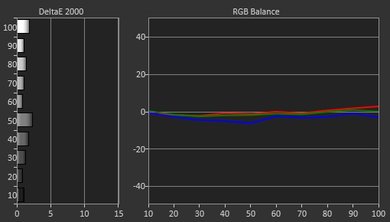

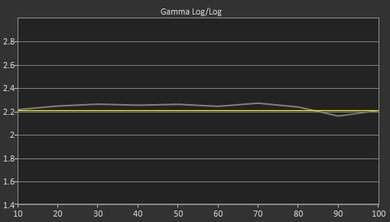

8.9 Pre Calibration
White Balance dE
:
1.34
Color dE
:
2.5044
Gamma
:
2.23

The white balance is quite good by default under the 'Calibrated Dark' preset. Colors are too saturated, though, especially the blue and the red.

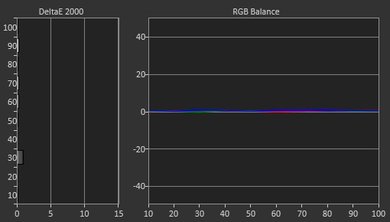

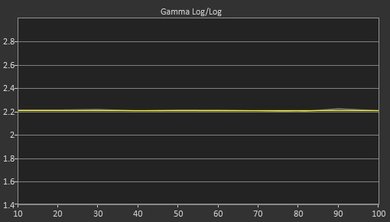

9.4 Post Calibration
White Balance dE
:
0.26
Color dE
:
2.0181
Gamma
:
2.2

The 11 pt settings were easy to use and allowed us to fix the white balance. For the colors though, calibration was a bit of a mess. Fixing the oversaturated primaries resulted in an undersaturation of less-saturated colors.

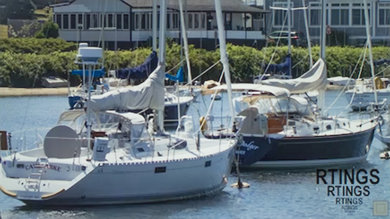

7.0 480p Input

Upscaled DVDs looks a bit soft and some small details on our test pattern, like the sail boat ropes looks choppy.

7.0 720p Input

Not too much small details are lost in the upscaling compare to other Vizio TVs, but the image is still softer than other brand like Sony or Samsung.

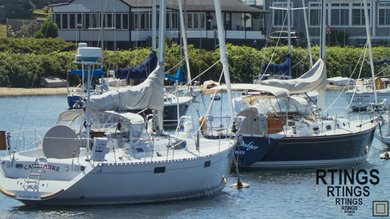

9.0 1080p Input

Good quality 1080p content look good on the P series 2016.

10 4k Input

4k content look very good and sharp.

7.6 Color Gamut
Wide Color Gamut
:
Yes
DCI P3 xy
:
83.86 %
DCI P3 uv
:
90.44 %
Rec 2020 xy
:
61.10 %
Rec 2020 uv
:
68.93 %

It isn't as wide as the coverage of some competitors, but the colors do pop more than they do on a TV lacking the wide color gamut feature.
Update 08/05/2016: Retested with the newest firmware update, sending a HDR10 signal over HDMI.

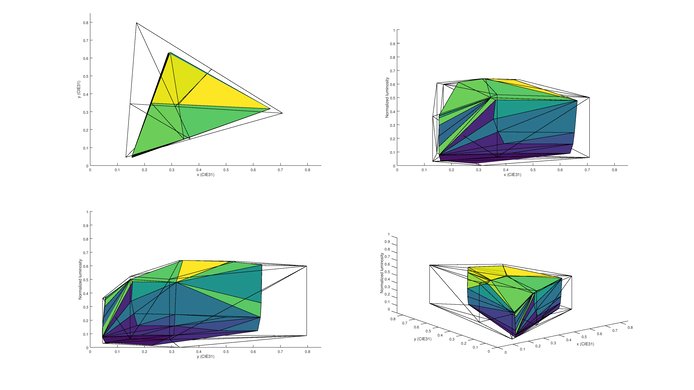

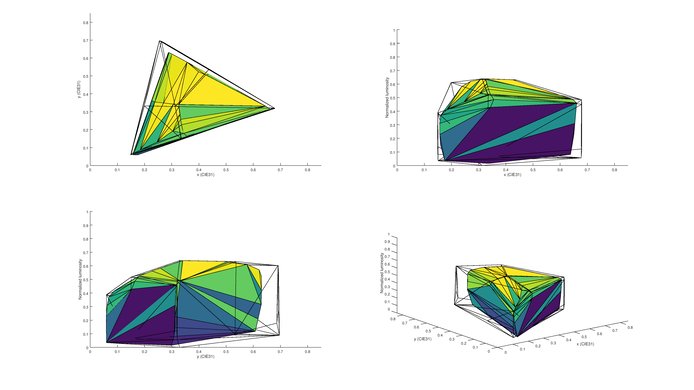

6.5 Color Volume
Normalized DCI P3 Coverage
:
74.319 %
10,000 cd/m² DCI P3 Coverage
:
44.59 %
Normalized Rec 2020 Coverage
:
55.801 %
10,000 cd/m² Rec 2020 Coverage
:
33.585 %

10 Image Retention
IR after 0 min recovery
:
0.000 %
IR after 2 min recovery
:
0.000 %
IR after 4 min recovery
:
0.000 %
IR after 6 min recovery
:
0.000 %
IR after 8 min recovery
:
0.000 %
IR after 10 min recovery
:
0.000 %

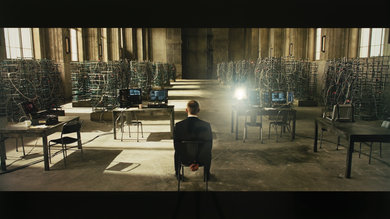

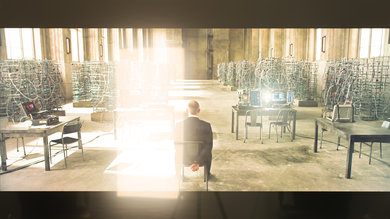

8.0 Reflections
Reflection
:
2 %
Screen Finish
:
Semi-gloss

The reflections are average. The P-series' semi-gloss screen means the amount of ambient light reflected is greater than you see with other high-end TVs, but there are no major rainbows around direct reflections.

0 3D
3D
:
No
3D Type
:
No
2D to 3D
:
No

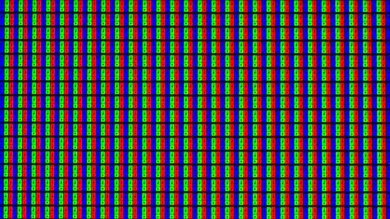

Pixels
8.8

Motion

Motion handling is great on the Vizio P Series 2016. Fast moving objects appear with very little motion blur. Movies played from any source display smoothly. It is able to interpolate content up to the native refresh rate of 120Hz.

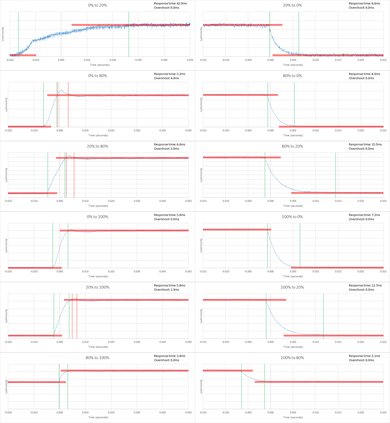

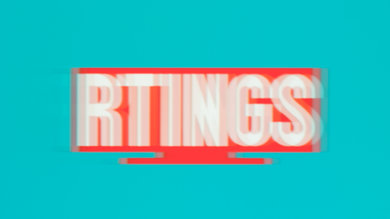

9.2 Motion Blur
Response Time
:
10.2 ms
Overshoot
:
0.7 ms

The average response time of the pixel transitions is really good. The only problem area is dark transitions, and particularly the 0% to 20%, which comes in at a pretty long 42.9ms. This TV uses PWM flickering to adjust the luminosity of the backlight.

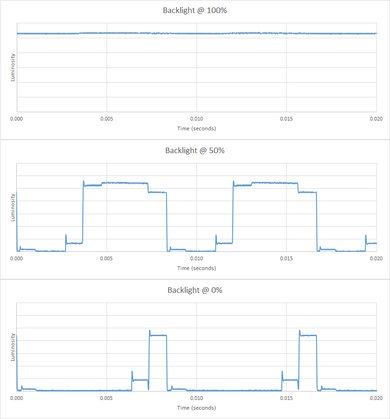

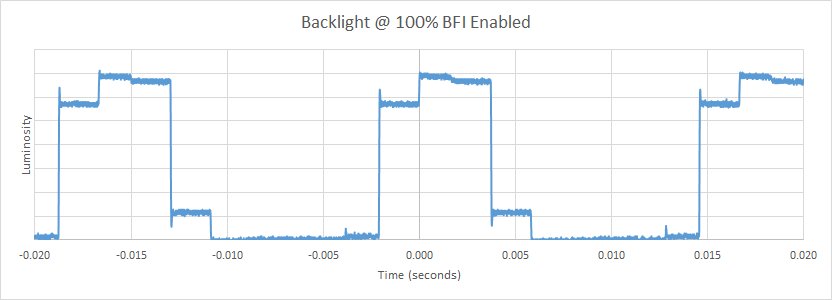

6.8 Image Flicker
PWM Dimming Frequency
:
120 Hz
BFI
:
Yes
BFI Frequency
:
60 Hz
BFI In Game Mode
:
Yes

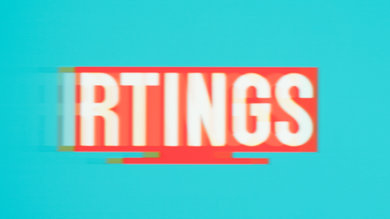

The Vizio P Series 2016 has the option of enabling 'Clear Action' to reduce the backlight frequency to 60Hz. This helps to clear up motion due to eye tracking blur.

7.1 24p Playback
Judder-free 24p
:
Yes
Judder-free 24p via 60p
:
No
Judder-free 24p via 60i
:
No

It is able to play a 24p signal without judder. It can also detect and perform 3:2 reverse pulldown without issue, even with a 60p signal. This is great for watching movies sent by an HTPC.

Update 09/05/2017: With the latest firmware update (3.3.18.1) the 'PurCinema' option is not able to completely remove judder from 60Hz sources. This is likely a bug and we will update the review if a firmware update fixes this.

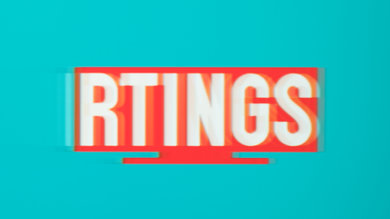

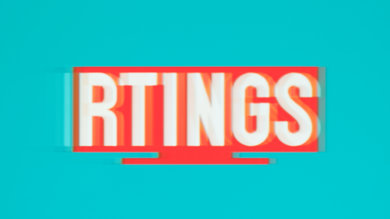

10 Motion Interpolation
Motion Interpolation (30 fps)
:
Yes
Motion Interpolation (60 fps)
:
Yes

'Reduce Judder' is the setting that turns on motion interpolation for 30 fps (and lower) content. For 60 fps to be interpolated to 120, you will need to use the 'Reduce Motion Blur' slider.

Update 08/01/2017: Retested with the newest firmware (3.2.13.3) and a bug that required the 'Reduce Judder' setting to be set to at least 1 in order for 'Reduce Motion Blur' to work has been fixed. Content at 60 fps is now properly interpolated to 120 fps with 'Reduce Judder' at 0 and 'Reduce Motion Blur' at 1 or more.

8.7

Inputs

The Vizio P Series 2016 supports a wide range of inputs, which is great. The input lag is low, which is perfect for fast games. With the latest firmware update available, the TV is able to display the chroma subsampling correctly at different resolutions, which should please PC enthusiasts and gamers out there.

8.5 Input Lag
1080p @ 60Hz
:
16.3 ms
1080p With Interpolation
:
86.8 ms
1080p @ 60Hz Outside Game Mode
:
91.3 ms
1080p @ 60Hz @ 4:4:4
:
16.3 ms
4k @ 60Hz
:
16.3 ms
4k @ 60Hz @ 4:4:4
:
43.8 ms
4k @ 60Hz + HDR
:
43.8 ms
4k @ 60Hz @ 4:4:4 + 8 bit HDR
:
43.8 ms

Input lag is great. For best results, use HDMI5 with 'Game Low Latency' on for both 1080p and 4k resolutions. Note that HDR is only possible for HDMI 1-4, and so the input lag is higher. It is still playable for casual gamers. Shown below are the results for combinations of HDMI ports, HDR vs SDR, with different signal formats.

FormatHDRHDMIInput lag
1080p@60HzSDR516.3ms
1080p With InterpolationSDR586.8ms
1080p @ 60Hz Outside Game ModeSDR591.3ms
1080p @ 60Hz @ 4:4:4SDR516.3ms
4k @ 60HzSDR516.3ms
4k @ 60Hz @ 4:4:4SDR5n/a
4k @ 60Hz + HDRHDR5n/a
4k @ 60Hz @ 4:4:4 + HDRHDR5n/a
1080p@60HzSDR150.8ms
1080p With InterpolationSDR1114.7ms
1080p @ 60Hz Outside Game ModeSDR1118.2ms
1080p @ 60Hz @ 4:4:4SDR150.8ms
4k @ 60HzSDR143.8ms
4k @ 60Hz @ 4:4:4SDR143.8ms
4k @ 60Hz + HDRHDR143.8ms
4k @ 60Hz @ 4:4:4 + HDRSDR143.8ms

Update 01/23/2017: Retested with the newest firmware (3.0.12.2) and now the Vizio P Series 2016 can now display the chroma subsampling correctly when set in 'Computer' picture mode. The input lag has also been reduced.

10 Supported Resolutions
1080p @ 60Hz @ 4:4:4
:
Yes
1080p @ 120Hz
:
Yes (except 50")
4k @ 30Hz @ 4:4:4
:
Yes
4k @ 60Hz
:
Yes
4k @ 60Hz @ 4:4:4
:
Yes

Update 01/23/2017: Retested with the newest firmware (3.0.12.2) and now the Vizio P Series 2016 can now display the chroma subsampling correctly when set in the 'Computer' picture mode for HDMI port 1 to 4. On HDMI port 5, chroma subsampling is supported on any picture mode.

Note that the Vizio P can also correctly display chroma subsampling at 1080p @ 120Hz

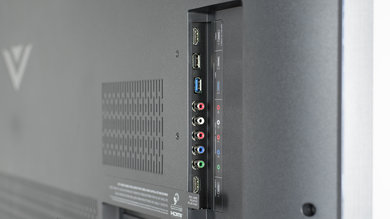

Side Inputs

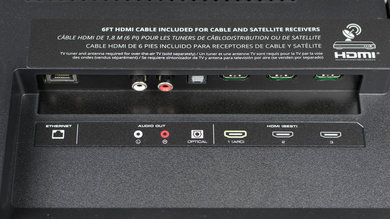

Rear Inputs
Total Inputs
HDMI : 5
USB : 2
Digital Optical Audio Out : 1
Analog Audio Out 3.5mm : 0
Analog Audio Out RCA : 1
Component In : 1
Composite In : 0
Tuner (Cable/Ant) : 0
Ethernet : 1
DisplayPort : 0
IR In : 0
SD/SDHC : 0

Inputs Specifications
HDR10
:
Yes
Dolby Vision
:
Yes
5.1 Passthrough ARC Dolby Digital
:
Yes
5.1 Passthrough ARC DTS
:
Yes
5.1 Passthrough Optical Dolby Digital
:
Yes
5.1 Passthrough Optical DTS
:
Yes
HDMI 2.0 Full Bandwidth : Yes
ARC : Yes (HDMI 1)
USB 3 : Yes (1)
HDCP 2.2 : Yes
CEC : Yes
MHL : No
Variable Analog Audio Out : Yes

5.1

Sound Quality

The sound quality is sub-par, and the TV doesn't get very loud. You will definitely benefit from having a separate sound system. Even a cheap sound bar would be an improvement.

Note: Sound Quality test for TVs reviewed before 2017 was performed at 75dB, 85dB, and Max SPL. Starting 2017, the target SPL levels have been changed to 70dB, 80dB, and Max dB SPL.

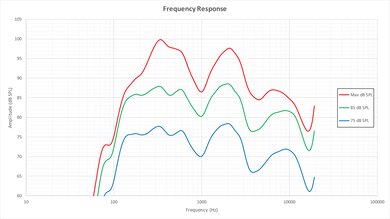

6.5 Frequency Response
Std. Dev. @ 70
:
4.38 dB SPL
Std. Dev. @ 80
:
4.31 dB SPL
Std. Dev. @ Max
:
6.02 dB SPL
Max
:
89.2 dB SPL
Low-end Cutoff
:
127 Hz

Average frequency response. Low-end cutoff of 127 hz and maximum loudness of 89.2dB SPL are not great, even for a TV. There may also be a slight compression and pumping present at higher volumes.

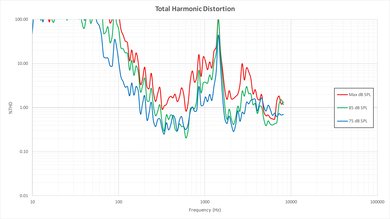

2.4 Total Harmonic Distortion
Distortion @ 70
:
0.393
Distortion @ 80
:
1.964
Distortion @ Max
:
2.510

Poor distortion results. The overall distortion is high, and it rises even more as the volume is increased. The peak in distortion at around 1.5KHz is quite noticeable.

7.0

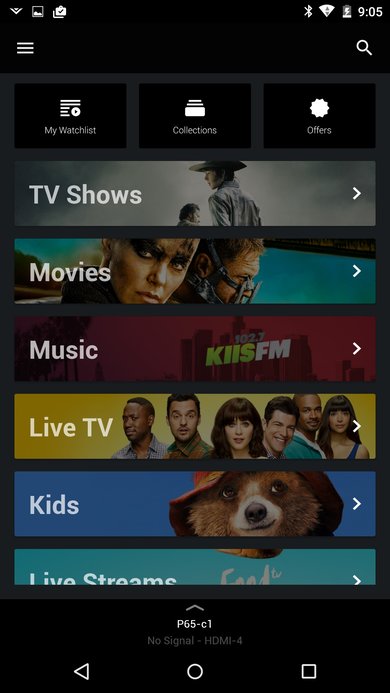

Smart Features

Smart OS : SmartCast

The Vizio P Series 2016 uses SmartCast, which is based on Google Cast. This is a completely different approach than the one taken by other smart TVs. Instead of the smart features being directly on the TV, the TV only acts as a screen to which you cast videos from your apps on your tablet, smartphone, or PC.

This is a great idea in theory. Having smart features on the TV is arguably redundant, given all the different devices many people already own. However, the current implementation isn't flawless. The tablet often either loses connection with the TV or lags behind. It is a bit frustrating to not have the TV respond when you are trying to change the volume or a setting. Even turning on the TV is sometimes an issue.

Hopefully Vizio will be able to improve on the implementation and make this smart platform a more seamless experience. For now, LG's WebOS is still tops for usability.

This is one of the only TVs that doesn't have a tuner included. This means you cannot plug in your cable or over-the-air antenna directly. You will need to buy a separate tuner like this one.

See our full review of Smartcast here.

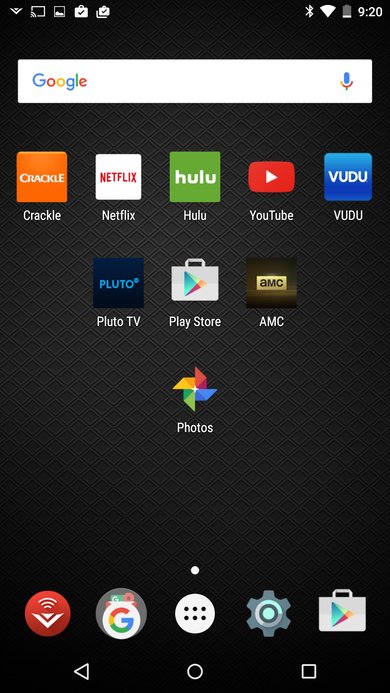

Apps
10 Ads
Ad-free
:
Yes
Opt-out
:
N/A

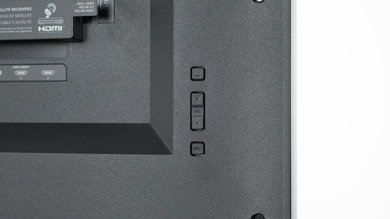

TV Controls

The controls directly on the TV are a bit hard to access if the unit is mounted to the wall.

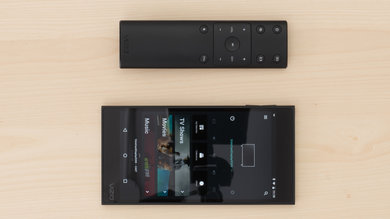

Remote
Remote : Tablet

It comes both with a tablet and a basic remote. You will pretty much have to use the tablet, though, because the remote is very basic and you cannot access a lot of features with it.

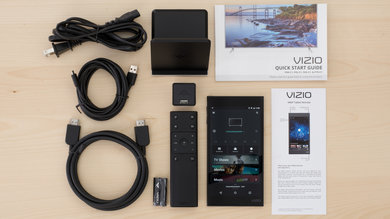

In The Box

- HDMI cable
- XR6P Tablet
- Manuals
- Power cable
- USB cable
- Basic remote
- Batteries

Misc
Power Consumption : 101 W
Power Consumption (Max) : 307 W
Firmware : 1.1.6.12

Differences between Sizes and Variants

We tested the 65" (P65-C1). For the most part, we expect our review to be valid for other sizes of the Vizio P Series 2016, with a few key differences:

  • 50" (Vizio P50-C1): This is a 60 hz TV, not a 120 hz model like the rest. This means the motion interpolation/soap opera effect won't be as strong, and the TV won't support 1080p @ 120Hz. Motion blur should be similar, though.
  • 55" (Vizio P55-C1): This size has an IPS panel instead of VA. It will have better color accuracy at an angle, but worse contrast and blacks from in front (in the 1000:1 ballpark).
Size Model LCD Type Effective Refresh Rate Real Refresh Rate Local Dimming Zones
50" P50-C1 VA 120 Hz 60 Hz 126
55" P55-C1 IPS 240 Hz 120 Hz 126
65" P65-C1 VA 240 Hz 120 Hz 128
75" P75-C1 VA 240 Hz 120 Hz 128

Compared to other TVs

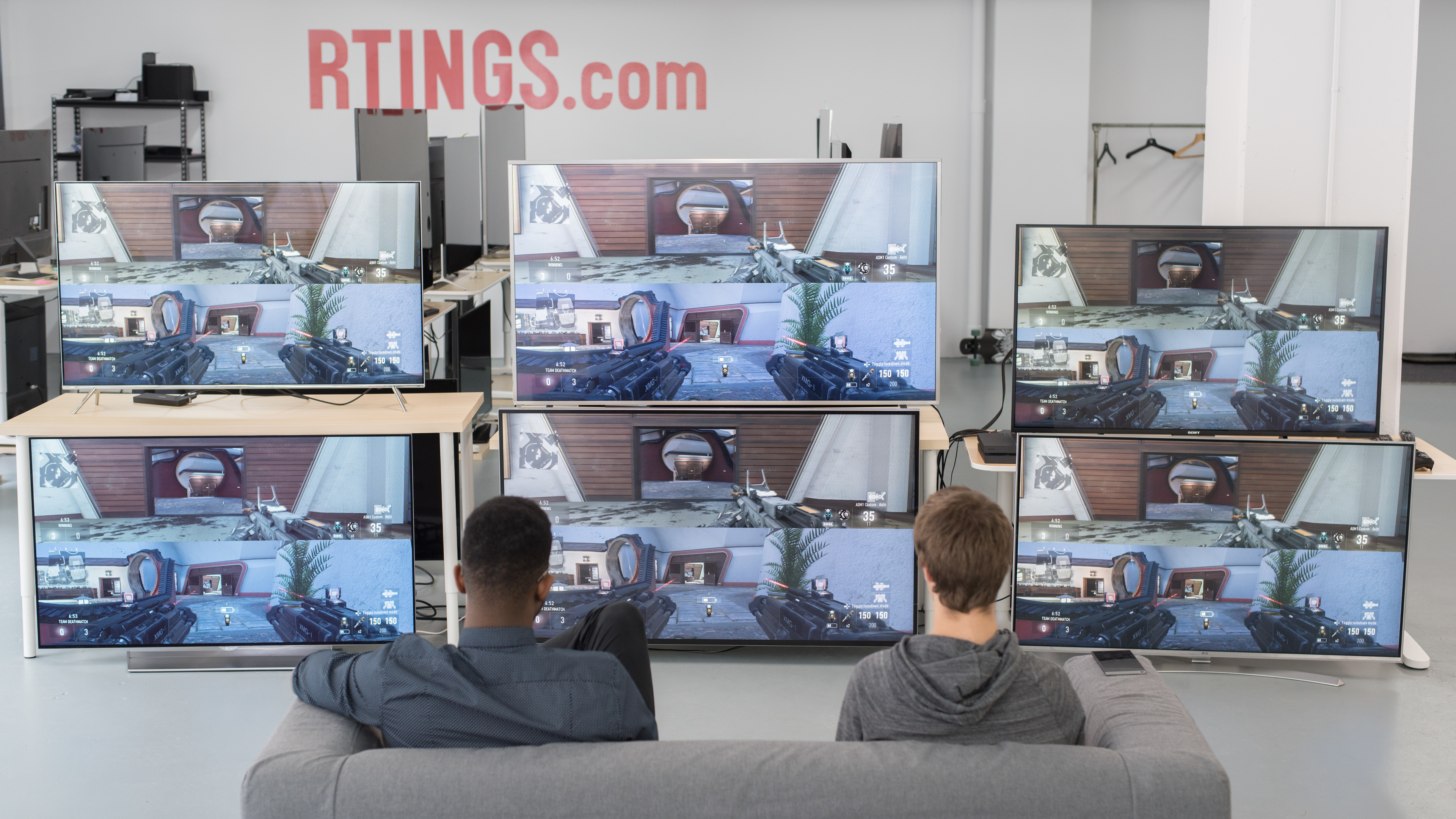

Top row, from left: Samsung KS8000 (UN55KS8000), Vizio P Series 2016 (P65-C1), Sony X850C (XBR55X850C). Bottom: LG EF9500 (55EF9500), Vizio M Series 2015 (M60-C3), LG UH8500 (55UH8500). Unlike our other photographs, this picture wasn't taken under a controlled environment, so do not draw conclusions from it.

The Vizio P has a lot of bang for the buck so even when compared to high end models of other brands, it is a good buy because it is often way cheaper for a similar picture quality.

Conclusion
Unavailable
Amazon.com

8.1 Mixed Usage
Great TV for a range of usages. Picture quality is excellent, and excels in a dark room. Great motion handling for sports or video games. Unfortunately the image deteriorates quickly when viewed from the side.
8.6 Movies
Excellent for watching movies in a dark room. Blacks are very deep, and dark scenes appear detailed.
7.3 TV Shows
Above average for watching TV shows in a bright room. Picture quality is great when viewed from in front. Not the best TV at dealing with reflections on the screen, and doesn't get as bright as some others to combat glare. Upscaling of low quality content is average. No tuner.
7.6 Sports
Good for watching sports. Handles motion very well with a minimum of blur. Great picture quality. Uniformity is average which results in some dirty screen effect over playing fields.
8.9 Video Games
Excellent video game performance. Feels very responsive due to low input lag. Handles fast camera motion very well. Picture quality is great.
8.4 HDR Movies
Very good TV for HDR. Supports a wider color gamut and has above average peak brightness. Picture quality is great. Supports Dolby Vision and HDR10.
8.4 HDR Gaming
Great for HDR gaming. Feels responsive due to fast response time. Input lag is fine for casual gamers but may be an issue for those more serious. Local dimming works well and helps to provide great picture quality.
7.9 PC Monitor
Very good PC monitor. Displays a wide range of resolutions well. Feels very responsive and has a minimum of motion blur. Displays text clearly at a wide range of resolutions and refresh rates.

LOG IN

JOIN RTINGS.com

Be part of the most informed community and take advantage of our advanced tools to find the best product for your needs.
Join our mailing list:
Become an insider

Unlimited access to full product reviews, test measurements and scores

test table UI

Product prices across the site on reviews, tables and tools

product prices UI

Additional votes for our
next reviews

Additional votes UI

Early Access
to our reviews and test measurements

Early Access UI

Create Discussion
